led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty
led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty
led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty
led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty
led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty
led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty
Specifications
Brand Name :
ADO
Model Number :
AD-TL-O-40W
Certification :
ENEC, GS,TUV-CE,RoHS,CB,SAA,C-tick
Place of Origin :
China
MOQ :
100pcs
Price :
USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
2000pcs
Delivery Time :
3-7 days
Packaging Details :
including white/brown box, brown carton
CCT :
2700/3000/4000K
Power :
40W
Led driver :
Power gear
Voltage :
AC200-240V
Size :
D110*L90mm
Track adapter :
4-wire 3-phase
Beam Angle :
15/24/38/60°
Dimmable :
DALI, TRIAC, 0/1-10V, BLE, ZigBee,RF
CRI :
CRI80+/90+/97
LED Chip :
Citizen Version 6
Material :
Die-casting Aluminum Alloy
THD :
<15%
IP Rating :
IP44
Fixture Color :
WHite Black
Series :
O Series
Description

track ceiling lights 25W 2500LM 80Ra Flicker free IP44 AC220V Citizen Chip Power gear driver for commercial lighting

1. LED track light Techinical Data :

Technical Specification Driver
LED brand Citizen Version 6 Driver brand Power gear +Osram Housing materials Die-casting Aluminum Alloy Driver in track
CCT 2700/3000/4000K Output Voltage DC36V IP Rating IP44 Powergear no flicker
CRI 80/90/97 Current 250mA Finish color White / Black Global fliker free
Lamp efficiency 90-100lm/W @CRI80 /90/97 Input Voltage AC200-240V THD <15% Lifud no flicker
Lens beam angle 15°/24°/38°/60° PF >0.9 Dimmable Yes Osram no flicker
Track adapter 4-wire 3-phase System wattage 40W Warranty 5 years Powergear TCI DALI

2. track ceiling lights 25W Introduction:

This track light is an elegant design. High lumen COB chip and PMMA lens and Aluminum reflflector offffer a uniform
lighting output. Die-casing aluminum lamp body provides excellent heat dissipation.
Lens and reflflector design meet difffferent customer needs, and creates a comfortable visual experience. Multiple
beam angle lens and reflflector optional,Easy installation, recreational for various application.

3. track ceiling lights 25W Features:

-Lens & reflflector design.
-CRI 80/90/97Ra available.
-Modular lens and reflflector design: 15°/24°/38°/60°
-Flicker free internal driver.
-Dimming way: Non-dim, triac dim, DALI dim.
-Power: 10w, 15w, 20w, 25w, 30w, 35w,40w, 45w
-LED Driver Options: Lifud, Powergear, Osram, Global

4. Lumen Data:
Model No. CCT CRI LED Power System Power

LED

Output

 System Output
AD-TL-O-15W 2700K CRI97/90/80 12.5W 15W 1750LM 1500LM
AD-TL-O-20W 3000K CRI97/90/80 18W 20W 2400LM 2000LM
AD-TL-O-25W 4000K CRI97/90/80 22.5W 25W 3000LM 2500LM
AD-TL-O-30W 3000K CRI97/90/80 27W 30.5W 3600LM 3000LM
AD-TL-O-35W 4000K CRI97/90/80 29.5W 34.5W 3900LM 3400LM
AD-TL-O-40W 5000K CRI97/90/80 34.5W 39.5W 4600LM 3900LM

4. track ceiling lights 20W Specification:

1. Track adapter: 2/3/4 wire 1 phase, 4/6 wire 3 phase
2. Size & Wattage: D62X140mm(10w, 15w), D90x108mm(20w, 25w, 30w), D110x150mm(35w, 40w, 45w)
3. Optics & Beam angle: Lens and Reflector, 15/24/38/60°
4. CCT&CRI: 2000K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K, Ra>80/90/97
5. Finish color: Matt White, Matt Black, Matt Grey and other customized color
6. Body materials: Die cast aluminum
7. Dimmable solution: DALI, TRIAC, 0/1-10V, BLE, ZigBee,RF
8. Warranty: 5 years from the delivery time Lens version Reflector version
9. Certificates: CE ROHS, SAA

5. Packing Details:

Code Dimension(mm) Size(mm) Produce
Weight(kg)		 Carton
Weight(kg)		 Carton
Size		 Qty/
CTN
A B C

N.W/

PC

G.W/

PC

N.W/

CTN

G.W/

CTN

AD-TL-O-10W

 L140 D62 L160 D62*L140 0.45 0.55 13.5 16.5 44*37*42 30
AD-TL-O-15W L140 D62 L160 D62*L140 0.45 0.55 13.5 16.5 44*37*42 30
AD-TL-O-20W L108 D90 L160 D90*L108 0.85 0.95 17 19 54*39*40 20
AD-TL-O-25W L108 D90 L160 D90*L108 0.85 0.95 17 19 54*39*40 20
AD-TL-O-30W L108 D90 L160 D90*L108 0.85 0.95 17 19 54*39*40 20
AD-TL-O-35W L150 D110 L160 D110*L150 1.07 1.17 17.12 18.72 59*43*40 16
AD-TL-O-40W L150 D110 L160 D110*L150 1.07 1.17 17.12 18.72 59*43*40 16
AD-TL-O-45W L150 D110 L160 D110*L150 1.07 1.17 17.12 18.72 59*43*40 16


6. Application:

Applicable for residential lighting in bedroom, living room, corridor etc, also suitable for commercial lighting in office, hotel, restaurant etc.

led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty

7. Installation Procedure​:

led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty

8. Dali Driver Installation:

led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty

9. Track installation:CEILING MOUNTED:

led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty

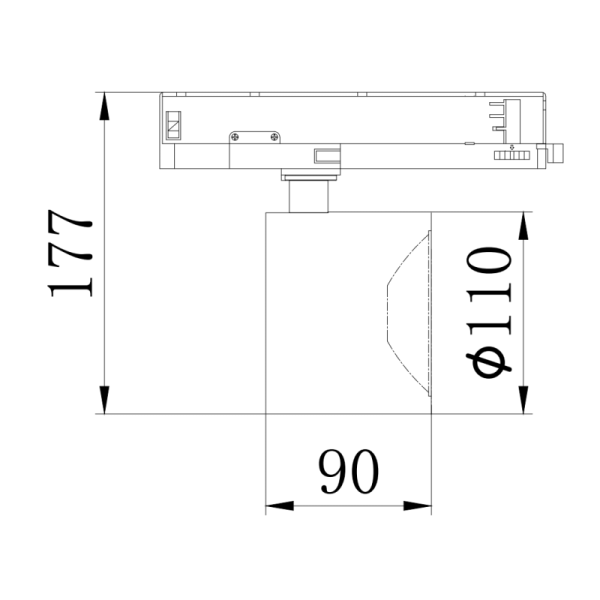

10. 40W Mechanical drawing D110*L90mm:

led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty

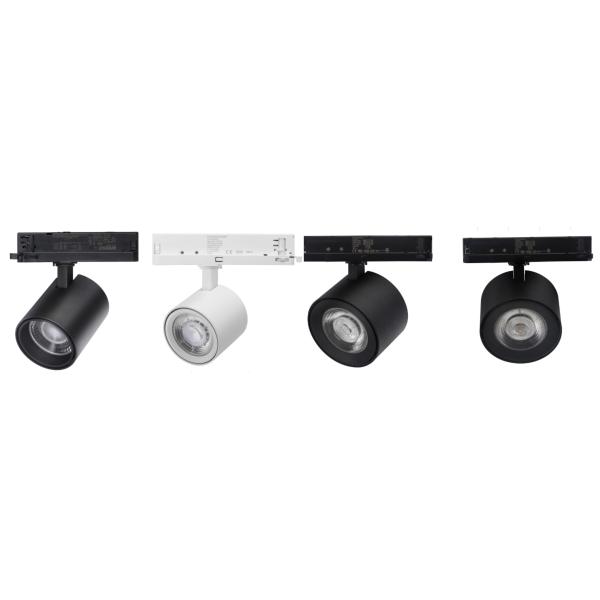

11. Picures of LED Track Lights:

led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty

12. Remarks

MOQ: 100pcs, if order quantity is less than MOQ, price will be 10% higher.

Deliery time: 7-15 Working days

Payment: Small order 100% paymentsi in advanced; over 10000 USD can pay 30% deposit, 70% before shipment

Packing: Only including white/brown box, brown carton, for customized color box/ label and laser marking, please contact us to negotiate the extra cost.

led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty
