E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase
E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase
E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase
E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase
E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase
E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase
Specifications
Brand Name :
ADO
Model Number :
AD-TL-E02-15W
Certification :
CE ROHS SAA TUV
Place of Origin :
China
MOQ :
One Carton
Price :
Negotiation
Payment Terms :
T/T, Paypal, Western Union, L/C, Western Union, MoneyGram
Supply Ability :
2,000 pcs per day
Delivery Time :
3-7 work days
Packaging Details :
24 Pieces One Carton 520*282*340mm
IP Grade :
IP40
Power :
15w
Led driver :
Lifud brand
Voltage :
AC200-240V
PFC :
0.9
Wires :
3 wires 4 wires
Beam Angle :
38 Degree
Dimmable :
DALI/TRIAC/0/1-10V,ZigBee
CRI :
CRI80+/90+/97+
Size :
D65x150x139mm
Description

E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase

1. E02 series Integrated Zoomable 15W LED tracklight Specification:

LED brand Citizen Version 6 Driver brand Tridonic
CCT 2700K/3000K/4000K/5000K Output Voltage DC36V
CCT 4000K/5000K Size 65x150x139mm
CRI 80/90/97 Current 350mA
Lamp efficiency 70-100lm/W @CRI80 Input Voltage AC200-240V
Beam angle 15°-55° PF >0.9
Track adapter PowerGear 4-wire 3-phase System Wattage 14.82W
Housing materials 6063 brushed aluminum alloy Package Standard carton
IP Rating IP20 Inner box 163x65x157mm
Finish color Black /White Outer box 520*282*340mm
THD <15% N.W./PC 0.7 KG
Dimmable Yes G.W./CTN 19.2kg
Warranty 5 years Qty/CTN 24 PCS/CTN

2. E02 series Integrated Zoomable 15W LED tracklight Features:

1. Compact design

2. Driver built in

3. Kinds of diameter

4. Power: 5-35W
5. DALI, TRIAC, 0/1-10V, ZigBee, RF, BLE etc. various dimmable
6. 6/4 wire 3 phase, 4/3/2 wire 1 phase universal track adapter

7. Beam angle 15-55° adjustable

3. Beam angle 15-55° adjustable:

E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase


4. Self dimming + Tri-color solution:

E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase

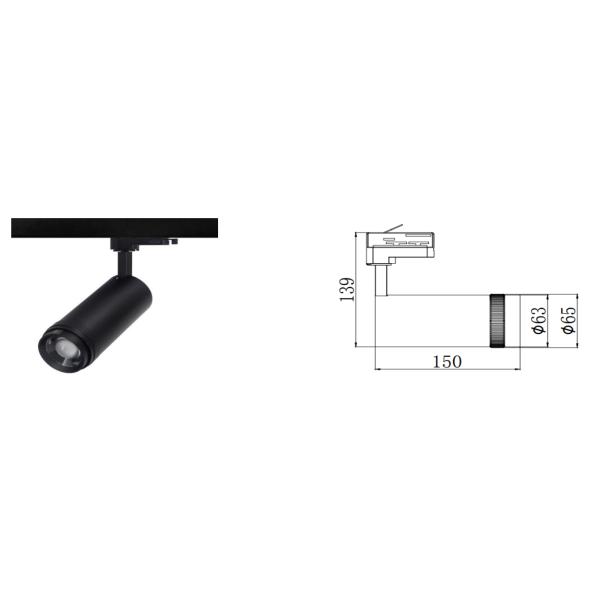

5. D65mm Integrated LED track light:

E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase

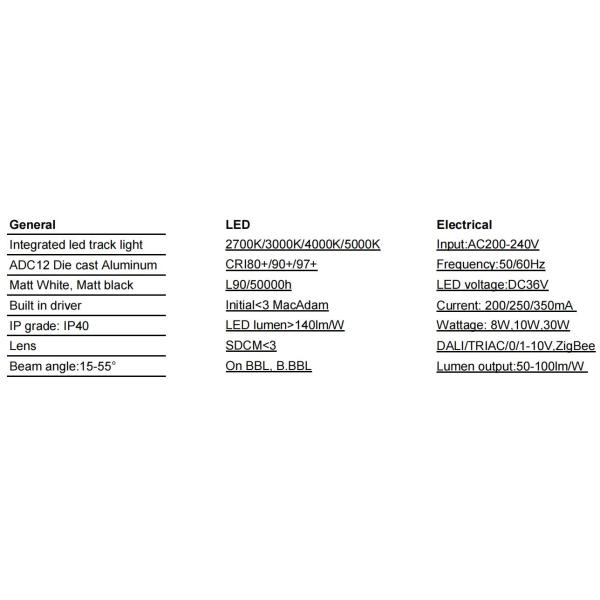

6. D65mm LED track light Technical data sheet:

E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase

7. Description:

ADOE02 series Integrated Zoomable LED tracklight is made of led chips, led drivers, aluminum heat sink, respirator, adaptor and optical lens, each part material is very important, please see the following description for each material:

1. LED Driver: Lifud, , Osram, Tridonic led driver avaiable, PF>0.9, we also can make 0-10V or dali dimmable or triac dimmable function for option.

2. Cree COB Chip, Citizen Version 6, CRI>80Ra or 90Ra, High Bright 100-120LM/W, low decay, long lifespan
3. Heat Dissipation: Adopt 6063 aluminum material, good cooling effect, housing color also could be white, black and sliver for your option
4. Optical Lens: The beam angle is 15-55°, adjustable

8. Applications:

1. Shopping malls (clothing stores, furniture stores and other brand stores),

2. Car displays, jewelry, star hotels, branded apparel, high-end clubs, museums, chain stores,

3. Brand business offices, professional windows, counters

9. Packaging Details:

Power Quantity Carton Size G.W
10W 24PCS/CTN 4520*282*340mm 19KG/CTN
15W 24PCS/CTN 4520*282*340mm 19KG/CTN
25W 24PCS/CTN 512x312xH320mm 19KG/CTN
30W 15PCS/CTN 512x312xH320mm 20KG/CTN
35W 15PCS/CTN 512x312xH320mm 20KG/CTN

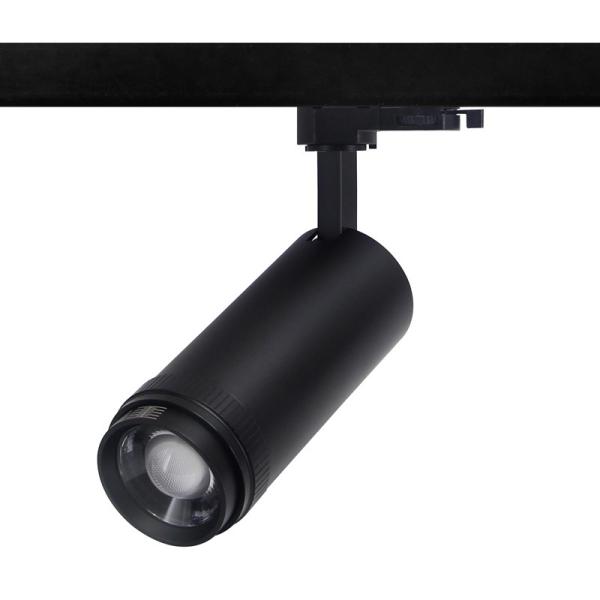

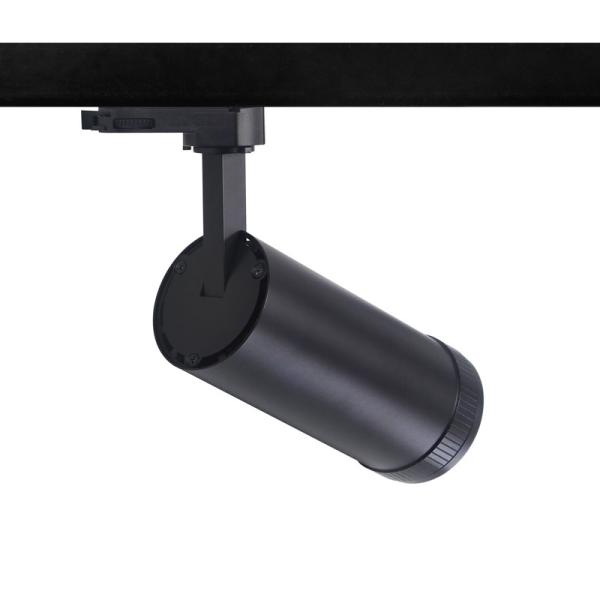

10. More pictures of E02 series Integrated Zoomable 15W LED tracklight:

E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase

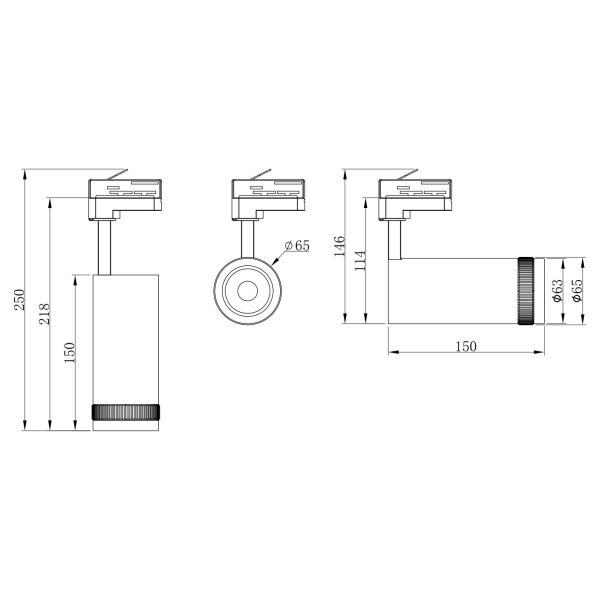

11. E02 series Integrated Zoomable 15W led track light Mechanical drawing:

E02 series Integrated Zoomable LED tracklight adjustable 15-55° Dali 1-10V dimmable 6/4 wire 3 phase
