12V 2835 5050 120leds/m Waterproof IP68 LED Flexible pvc neon led for led neon sign
1. Technical Data:
Item No. | AD-N-HA-2835-14X26MM | |||
Voltage | 220V | 110V | 24V | 12V |
Cutting Unit length | 3.33'/1m | 1.67'/0.5m | 1.67'/0.5m | 0.167'/0.05m |
Max Load Length | 173'/50m | 173'/50m | 66.7'/20m | 33.3'/10m |
Led | SMD2835 | |||
Led Qty | 120Leds/m | |||
Power | 12w/m | |||
IP Grade | IP68 | |||
Size | 14X26mm | |||
Material | Milk white pvc/color jecket pvc/crystal pvc | |||
Roll | 25m/roll,50m/roll | |||
Packing size | 33*33*20cm/12.5KG/Carton.36x36x33cm/25kg/Carton | |||
MOQ | 1M | |||
Warranty | 3years | |||
Life time | 50,000hrs | |||
Color | White,Red,Blue,Green,Yellow,Purple,Pink,Orange,RGB,RGBW |

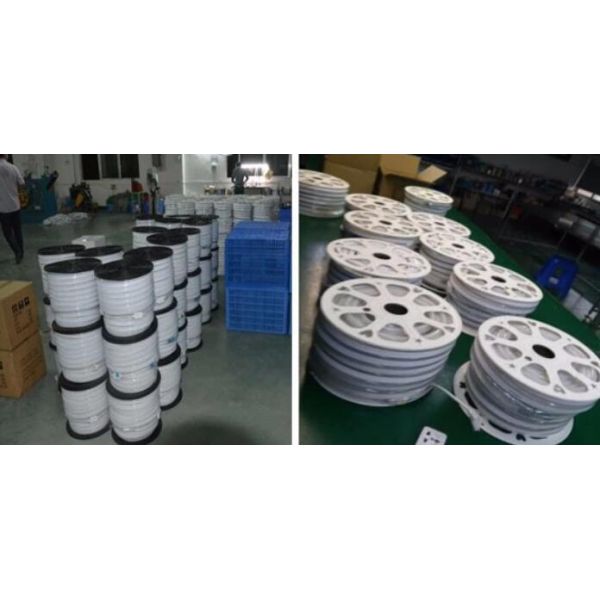

2. Packaging:
Single package size: 36X36X35 cm
Single gross weight: 25.0 kg
Package Type:
14*26mm LED Neon Flex
Length/Carton: 25meter/carton
Carton Size: 33*33*20cm.
Net Weight: 11.5kg/carton
Gross Weight: 12.5kg/carton
14*26mm LED Neon Flex
Length/carton: 50meter/carton
Carton Size: 36*36*32.5cm.
Net Weight: 23.5kg/carton,
Gross Weight: 25kg/carton
3. Features:
1. High flexibility,the minimum bend radius 100mm
2. Soft light effect,uniform color,light source can't be seen

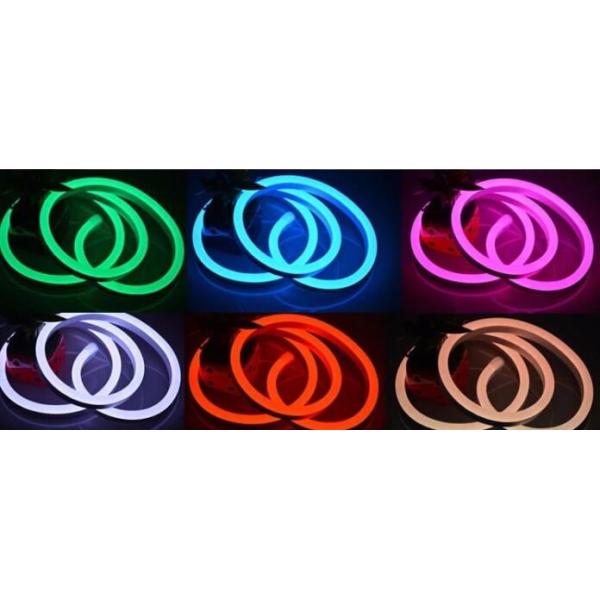

3. Color include red, green, blue, yellow, pink, purple, white, warm white, RGB are available
4. 14.4 w/m,12VDC, 24VDC, 110V &220VAC Available
5. Each 100mm can be cut ,and can be connected via connectors
6. IP68,PVC material ,anti-UV
7. CE ,ROHS
4. Application:
Path&contour marking , Elegant interior decoration , Backlighting for larger size ad-signs, Landscape outlines , Signal lighting, Swimming pool , Car and motorcycle decorative lighting , Architectural decorative lighting , Archway Lighting , Canopy Lighting , Bridge edge lighting, Amusement park and theater lighting, Emergency hallway lighting, Auditorium walkway lighting, Stairway accent lighting, Emergency Exit path lighting , Cove lighting etc.
