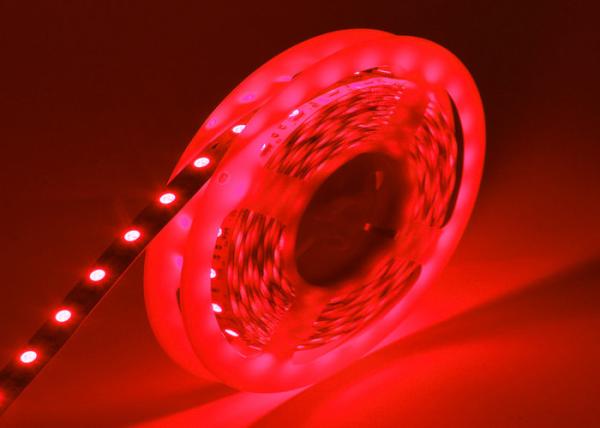

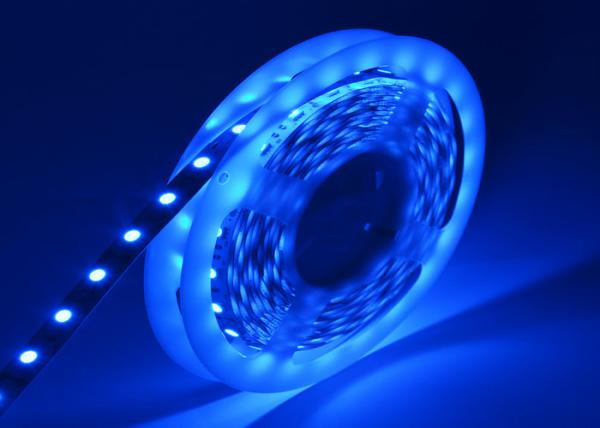

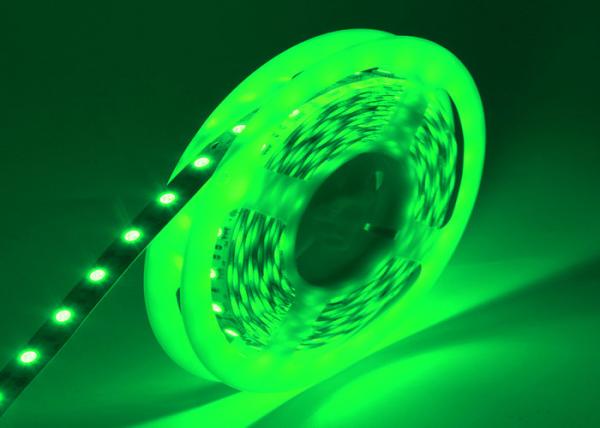

DC12V / 24V LED Flexible Strips SMD5050 RGB IP20 14.4W 5 meters One Roll

1. LED Strips Technical Data Sheet:

2. Description:

The most common design differences are in how individual LEDs are controlled, specifically differences in color and whether or not each LED is addressable.

Single Color, non-addressable: Every LED on the strand is a single white colour, typically ranging from 2700K to 6500K in color temperature, or any of several monochrome colors covering the range of the visible spectrum (generally from 400-700 nanometers in wavelength).

Multicolor, non addressable: Each LED is capable of displaying red, green, blue, or all three (white), driven by three input power rails. All the LEDs display the same colour at any one time, but the colour can be manipulated by varying the voltage applied to each of the three power inputs.[citation needed]

RGB, addressable: Multiple colours and addresses. Each LED has its own chip meaning they can be individually triggered for chasing, strobing, and colour changing.

3. Products Specification:

Light Source: LED

Type: Light Strips

LED Light Source: SMD 5050

Type: Flex LED Strips

Input Voltage(V): DC12V/24V

Lamp Power: 14.4W/M

LED Chips Quantity: 60pcs one meter

Lamp Luminous Flux(lm): 20-28LM

CRI (Ra>): 80

Color Temperature(CCT): RGB

Working Temperature(℃): -20 - 60

Working Lifetime(Hour): 500000

Lamp Body Material: FPC

Certification: CE, RoHS, UL

Emitting Color: White/Warm White/Natural White/RGB

Place of Origin: Guangdong, China (Mainland)

Brand Name: ADO

Model Number: A-5050RGB-V12

Application: Decorative Lighting

IP Rating: IP20 / IP65 / IP67 / IP68

Beam Angle: 120 Degree

PCB Color: White / Yellow / Black

Warranty: 3-5 years

Width: 5mm 8mm 10mm 13mm 15mm 20mm 58mm

4. Application:

1. Stairway accent lighting
2. Architectural decorative lighting
3. Backlighting for signage letters
4. Amusement park, theater and aircraft cabin mood lighting
5. Emergency exit path lighting
6. Auditorium walkway lighting

5. Features:

1. The color and width of PCB board could be choosed.
2. PCB thickness can be 2oz, 3oz.
3. The voltage can be 3-24V or your requirements
4. The led quantity can be choosed from 30leds/m to 300leds/m
5. CCT can be adjusted, wider CCT range
6. We can support special customized package for led strip
7. We can support complete cut/ connection accessories, like: LED power supply, led RGB controller, connector.

6. About LED Strip CCT(Color Temperature):

Color temperature: Refers to the heating of a standard black body. When the temperature rises to a certain degree, the color begins to change from dark red to reddish-orange-white-blue, gradually changing. When the light source is the same color as the black body, we call the absolute temperature of the black body at that time The color temperature of the light source.
In general, the color temperature is not used as an indicator of the assessment of LED light bar, but many foreign customers because of the use of the environment, will make a special request.
Light source color temperature is different, light color is also different:
Color temperature below 3300K, light color reddish gives a warm feeling; there is a stable atmosphere, warm feeling, commonly known as warm color temperature.
The color temperature is in the middle of 5000--6000K. There is no obvious visual psychological effect in this hue, and there is a refreshing feeling; it is called "neutral" color temperature.
The color temperature exceeds 6000K, and the light color is bluish, giving people a feeling of cooling, commonly known as cold color temperature.
In general, 7500K (cool white blue) / 6500K (white) / 3500K (warm white yellow).
