MachineU > China Products > Lights & Lighting > Lighting Accessories > LED Encapsulation Series > High Power LED

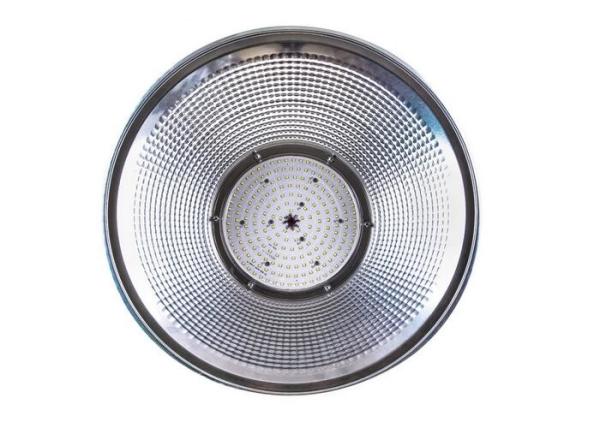

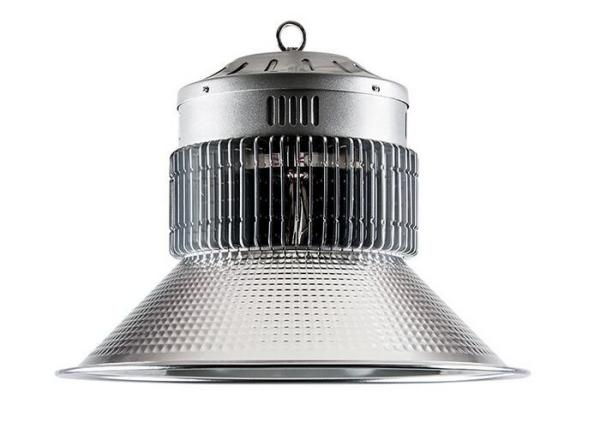

Suspended Led Energy Efficient High Bay Lighting 150w 90 Degree Ip65 6000k
Suspended Led Energy Efficient High Bay Lighting 150w 90 Degree Ip65 6000k
Suspended Led Energy Efficient High Bay Lighting 150w 90 Degree Ip65 6000k
Suspended Led Energy Efficient High Bay Lighting 150w 90 Degree Ip65 6000k
Suspended Led Energy Efficient High Bay Lighting 150w 90 Degree Ip65 6000k
Suspended Led Energy Efficient High Bay Lighting 150w 90 Degree Ip65 6000k
Suspended Led Energy Efficient High Bay Lighting 150w 90 Degree Ip65 6000k
Suspended Led Energy Efficient High Bay Lighting 150w 90 Degree Ip65 6000k
Specifications
Brand Name :
ADO
Model Number :
AD-HBN-150W
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
10,000 pcs per day
Delivery Time :
3-7 work days
Packaging Details :
1PCS/CTN
Power :
150W
LED Chip :
SMD3030
IP Level :
IP65
Certificate :
CE SAA
Beam Angle :
90 Degree
CCT :
6000K
Warranty :
3 Years
LED Driver :
Meanwell HBG
Description


150w LED Highbay Light SMD3030 60 Degree Suspended IP65 6000K CE


1. 100W & 150W LED Highbay Light Technical Data Sheet:

Model Type AD-HBN-100W AD-HBN-150W
Input Voltage AC85-265V AC85-265V
Frequency Range 50-60Hz 50-60Hz
Power Factor (PF) > 0.95 > 0.95
Led Power 100W 150W
Led Luminous Efficiency 90-100 lm/w 90-100 lm/w
Led Flux ≥10000lm (Tj=25 °C ) ≥15000lm (Tj=25 °C )
Shade Type High Purity Aluminium Anodized Reflector shade
Color Temperature White :5000~6500K, Warm White: 3000K-3500K
Materials Die-casting Aluminum +Tempered Glass
Products Size Φ45cm x 31cm(H) Φ45cm x 31cm(H)
Lamp's Efficiency (%) >90% >90%
Installation Height 4-10m 4-10m
Installation Hook , Steeve Hook , Steeve
Color Index(CRI) 80RA 80RA
Working Humidity 10%~90% 10%~90%
Storage Temperature 10 °C ~85 °C 10 °C ~85 °C
IP Rating IP65 IP65
Working Life 30000 hrs 30000 hrs
Warranty 3 Years 3 Years

2. Specification:

Place of Origin: Guangdong, China (Mainland)

Brand Name: ADO

Model Number: AD-HBN-150

Type: 150w LED High Bay Light

Light Source: LED

Item Type: LED High Bay Lights

LED Chip: Brdgelux

LED Light Source: LED SMD3030

Input Voltage(V): AC85-265V 50/60Hz

Lamp Power(W): 150

Lamp Luminous Flux(lm): 15000

Lamp Luminous Efficiency(lm/w): 100

CRI (Ra>): 80

Beam Angle: 60°/ 90° / 120°

Color Temperature(CCT): Cool White

Driver: Meanwell

Lamp Body Material: Aluminum Alloy

IP Rating: IP65

Certification: BV, CCC, CE, EMC, FCC, GS, LVD, RoHS, SAA, SASO

Motion Sensor: availble

Power: 100W/150W/200W/300W

Working Temperature(℃): -40 - 45

Warranty(Years): 3

Working Lifetime(Hour): 50000

Application: Stadium / Factory / warehouse / playground


3. Advantages:

1. High quality wide range of power input AC90-305V constant power supply avoid unstablilities carried by power grid fluctuation and noise pollution.
2. Using high efficiency chips as light source, with high thermal conductivity, low luminous decay, pure light color and high CRI.
3. High CRI makes the color of items look real. Different color temparature for different places. It can eliminate the depressed emotions brought by traditional luminaires and make people feel comfortable and improve the working efficiency.
4. Special heat dissipation fins design brings light weight and significant cooling effect to ensure longer lifetime of the luminaire



4. Features:


1. Totally environmentally friendly, without any lead or mercury and other pollutants.

2. Simple installation, easy disassembly, wide application.
3. Excellent for decoration, with special surface treatment technology,
4. CE&ROHS, FCC, TUV certificates.
5. Provide customized services.


5. Application:

Exterior building lighting of historic buildings, light-exposed lighting inside the building, indoor local lighting, green landscape lighting, billboard lighting, medical facilities and other specialized facilities lighting, stadium lighting.

6. Warranty:

If products are failure because of the quality during the warranty period, we will send you new good products for free, but you need to send us the failure products pictures and video, then we can check the failure reasons to prevent it happen again.
