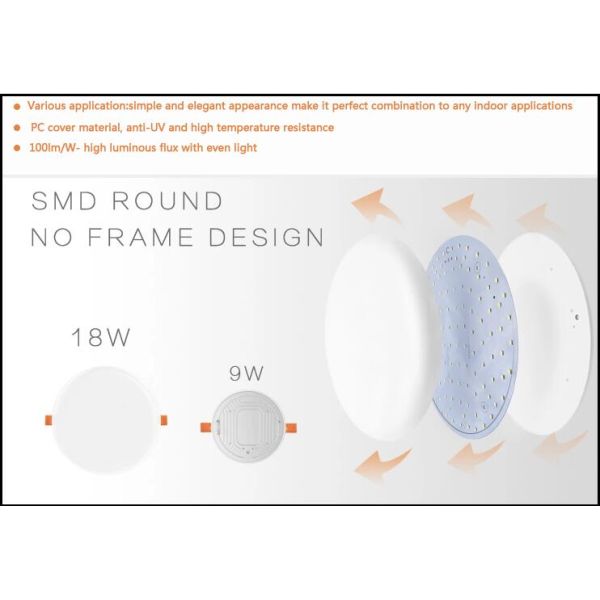

High Lumen LED Slim Panel Light 24W Aluminum PC 6000K 0.9 PFC 80CRI Back Lighting
High Lumen LED Slim Panel Light 24W Aluminum PC 6000K 0.9 PFC 80CRI Back Lighting
High Lumen LED Slim Panel Light 24W Aluminum PC 6000K 0.9 PFC 80CRI Back Lighting
High Lumen LED Slim Panel Light 24W Aluminum PC 6000K 0.9 PFC 80CRI Back Lighting
High Lumen LED Slim Panel Light 24W Aluminum PC 6000K 0.9 PFC 80CRI Back Lighting
High Lumen LED Slim Panel Light 24W Aluminum PC 6000K 0.9 PFC 80CRI Back Lighting
High Lumen LED Slim Panel Light 24W Aluminum PC 6000K 0.9 PFC 80CRI Back Lighting
High Lumen LED Slim Panel Light 24W Aluminum PC 6000K 0.9 PFC 80CRI Back Lighting
Specifications
Brand Name :
ADO
Model Number :
AD-ARL-PAL-24w
Certification :
ROHS CE FCC 3C
Place of Origin :
China(mainland)
MOQ :
One Carton
Price :
Negotiation
Payment Terms :
PayPal, Western Union, T/T, L/C
Supply Ability :
4000pcs/day
Delivery Time :
5 - 8 work days
Packaging Details :
20 pieces in one carton
Power :
24W
LED Driver :
Isolated IC wide voltage
CCT :
6000K
Material :
Aluminum+PC
PFC :
0.9
CRI :
80Ra
Voltage :
AC85-265V
Emitting :
Back Lighting
Description

24W led slim panel light aluminum PC 6000K 0.9 PFC 80Ra back lighting

1. Specification:

Model Shape Emitting Size(D*H) Cutout Total
Lumen		 LED Type
AD-RM-RL-PAL-12W Round Back
Lighting		 Φ90*H16mm Φ70mm ±1320LM SMD2835*84PCS
AD-RM-RL-PAL-18W Φ120*H16mm Φ105mm ±1980LM SMD2835*144PCS
AD-RM-RL-PAL-24W Φ170*H16mm Φ155mm ±2540LM SMD2835*240PCS
AD-RM-RL-PAL-36W Φ225*H17mm Φ205mm ±3520LM SMD2835*360PCS
AD-RM-RL-SPAL-12W Square 90*90*H16mm 70*70mm ±1320LM SMD2835*96PCS
AD-RM-RL-SPAL-18W 120*120*H16mm 105*105mm ±1980LM SMD2835*162PCS
AD-RM-RL-SPAL-24W 170*170*H16mm 155*155mm ±2540LM SMD2835*264PCS
AD-RM-RL-SPAL-36W 225*225*H17mm 205*205mm ±3520LM SMD2835*396PCS



2. Features:

1. Voltage: AC85-265V


2. LED Brand: Epistar


3. LED Chip: SMD2835, 26-28LM, 0.2w


4. CRI>80RA


5. CCT: 3000K, 4000K, 6000K


6. Luminous efficiency: 95-110LM/W


7. Material: Aluminum+PC Diffuser


8. LED Driver: Isolated IC constant current


9. Warranty: 2 Years


10. Installation: Reccessed Mounted

3. Advantages:

1. The important advantages of this led panel light is without housing edge , it makes the lighting area is bigger than old panel light, the lighting area is 100%, then lighting brightness is high. Also lamp total luminous efficiency is better.

2.The LED driver is wide voltage AC85-265V, smart IC constant current stable project, no short circuit. LED Driver quality is very good. It is the most important part for led paneml light.

3. Patented frameless design, exquisite finishing, factory own moudle, latest market product.

4. Suitable Applications:


1. Illumination lighting for homes , offices , hotels , malls , casinos , bars, restaurants , etc


2. Display lighting for museums , exhibitions galleries , stores , malls , shop windows etc


3. Landscape accent , spot Lighting, artwork lighting, mood lighting, architectural Lighting, display case accentamusement park accent.
