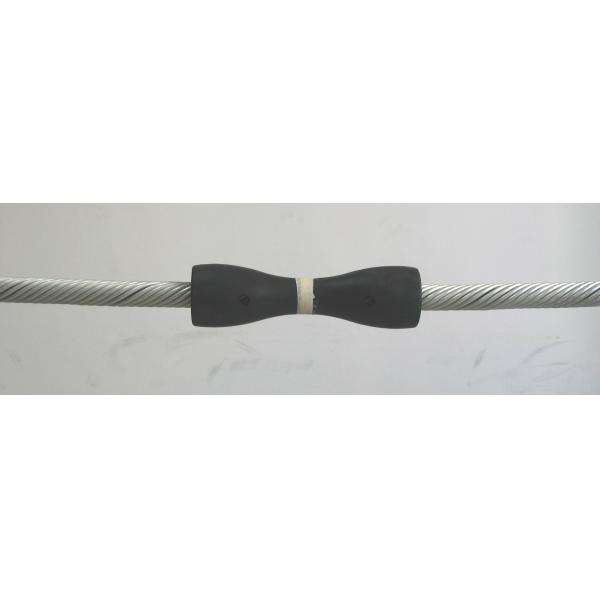

Silver OXS Model OPGW Suspension Set 1100MM-3000MM
Silver OXS Model OPGW Suspension Set 1100MM-3000MM
Silver OXS Model OPGW Suspension Set 1100MM-3000MM
Silver OXS Model OPGW Suspension Set 1100MM-3000MM
Specifications
Brand Name :
HC , OEM
Model Number :
oxy 0800 , oxy 0880
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Galvanized steel or Aluminium Alloy
Surface :
Smooth
Color :
Silver
Weight :
1.27KGS-4KGS
Length :
1100MM-3000MM
The Grip Strength :
The grip strength of the clamp is bigger than 24% of the rated tensile strength
Description

OXS Model OPGW Suspension Set

Model Cable Dia. Range (mm) Length of Structural Reinforcing Rods(mm) Length of Outer Rods(mm)

Weight

(kg)

Color

Code

 Collocate
AGS Clamp Link Fittings
OXS 0800 7.4-8.0 2100 1600 1.77 Blue

OXS 1200 11.8-12.0 2300 1700 2.49 Yellow
OXS 1270 12.1-12.7 2300 1700 2.49 Black
OXS 1290 12.8-12.9 2400 1700 2.78 White
OXS 1360 13.0-13.6 2400 1800 2.89 Red
OXS 1410 13.7-14.1 2400 1800 2.89 Blue
OXS 1430 14.2-14.3 2400 1800 2.89 Green
OXS 1450 14.4-14.5 2600 2000 3.46 Yellow
OXS 1510 14.6-15.1 2600 2000 3.46 Black
OXS 1580 15.2-15.8 2600 2000 3.46 White
OXS 1600 15.9-16.0 3100 2400 4.27 Red
OXS 1690 16.1-16.9 3100 2400 4.27 Blue
OXS 1730 17.0-17.3 3100 2400 4.49 Green
OXS 1800 17.4-18.0 3100 2400 4.62 Yellow
OXS 1840 18.1-18.4 3100 2400 4.62 Black
OXS 1880 18.5-18.8 3100 2400 4.97 White
OXS 1890 18.9-18.9 3100 2400 4.97 Red
OXS 1990 19.0-19.9 3100 2400 4.97 Blue

Instruction:The Max. unilateral angle of the single suspension will be 15º－18º, For double suspension will be 30º－36º.
