Fiber Optic Cable High Voltage Dead End Guy Wire Grips
Fiber Optic Cable High Voltage Dead End Guy Wire Grips
Fiber Optic Cable High Voltage Dead End Guy Wire Grips
Fiber Optic Cable High Voltage Dead End Guy Wire Grips
Specifications
Brand Name :
HC , OEM
Model Number :
ANY Series
Certification :
CE , SGS , ISO2001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Usage :
For Tower
Function :
Protection
Advantage :
Cheaper Price With High Quality
Diameter :
Customerized
Sample :
Sample Available
Standard Or Non Standard :
Standard
Description

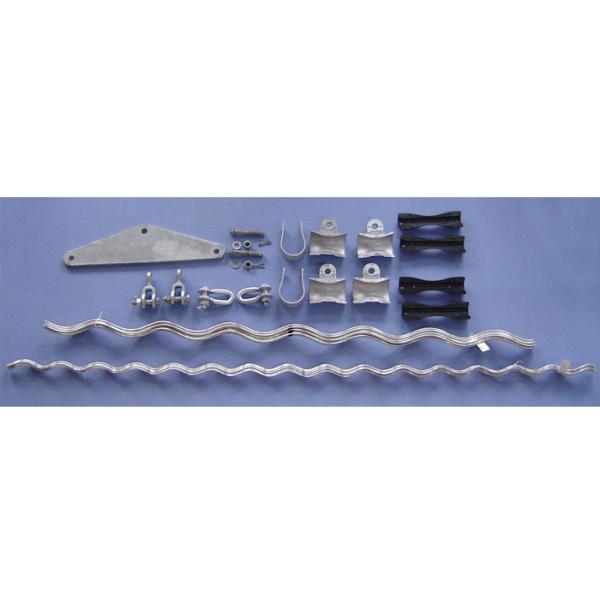

Fiber Optic Cable High Voltage Dead End Guy Grip

1. The product is used to connect OPGW cable and tower in the optic fiber cable erection, the ground wire can
protect the OPGW cable and improve the antivibration.
2. The special design of the ground wire can guarantee that the preformed tension clamp will not lead to the stress concentration, which does damage to the OPGW cable, so that, ensure the normal life of the cable system.

Model Available Dia. of Cable(mm)

Holding Strength

(KN)

 Available Span

Length of Dead-end

Component

(mm)

 Length of Structural Reinforcing Rods(mm)

Weight

(kg)

 Universal Scheme
Clevis (Eye Chain Link) Thimble Anchor Shackle
ANY 1220 040 11.5-12.2 40 400/500 1260 1800 2.14 PD-7 TC 07 U-7/2
ANY 1290 040 12.3-12.9 40 400/500 1260 1800 2.19 PD-7 TC 07 U-7/2
ANY 1370 040 13.0-13.7 40 400/500 1260 1800 2.44 PD-7 TC 07 U-7/2
ANY 1460 040 13.8-14.6 40 400/500 1260 1800 2.49 PD-7 TC 07 U-7/2
ANY 1550 040 14.7-15.5 40 400/500 1260 1800 2.54 PD-7 TC 07 U-7/2
ANY 1650 040 15.6-16.5 40 400/500 1260 1800 2.92 PD-7 TC 07 U-7/2

With Link Fittings PD-7 ,TC-07, U-7 Etc
