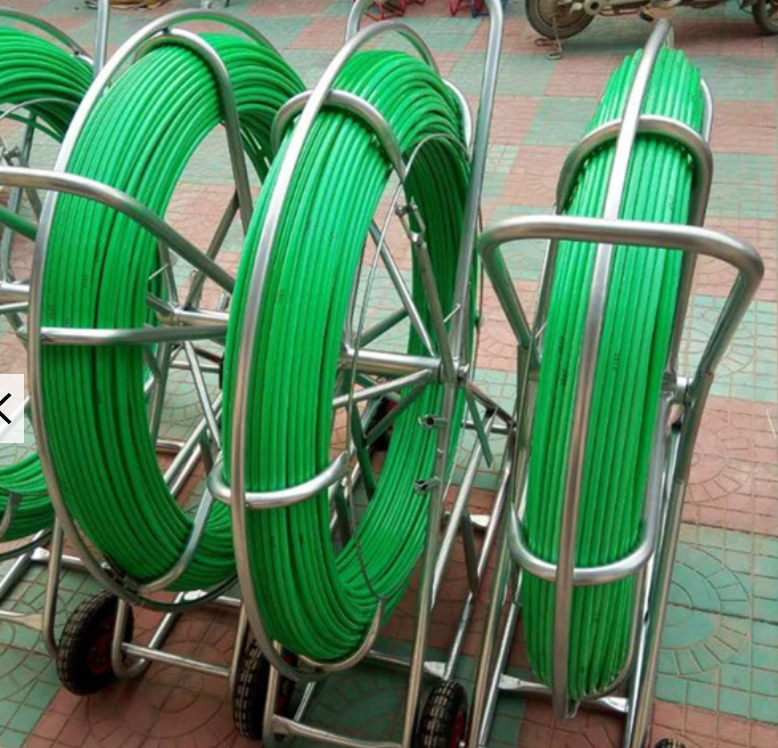

14MMx300M Fiberglass Duct Rodder , Underground Cable Pulling Duct Rod
14MMx300M Fiberglass Duct Rodder , Underground Cable Pulling Duct Rod
14MMx300M Fiberglass Duct Rodder , Underground Cable Pulling Duct Rod
14MMx300M Fiberglass Duct Rodder , Underground Cable Pulling Duct Rod
Specifications
Brand Name :
HC , OEM
Model Number :
BK8792
Certification :
CE , SGS , ISO2001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
With Copper wire
Feature :
FRP Fish Tape
Function :
Carry Convenience
Advance :
Stron Corrosion resistance
Marks :
Meter Mark
Application :
Tools For Pulling Cable
Description
Underground Cable push pull rods 14MM *300M Fiberglass Duct Rodder
Application Many applications, such as commercial residential Construction Building wiring Hauling telephone line and so on.

Features and Benefits

1. Strong non-conductive fiberglass rod construction

2. Copper plated drawing head

3. Good elasticity

4.Corrosion resistance is strong

14MMx300M Fiberglass Duct Rodder , Underground Cable Pulling Duct Rod

Technical date of cable push pull rods
Specifications Rod diameter (mm) Φ4.5, Φ6, Φ8, Φ10, Φ11, Φ12, Φ13, Φ14, Φ16,.......
Rod length (m) 30m~500m
Frame Spec.(mm) 1300mm x 450mm x 1330mm
1200mm x 420mm x 1220mm
980mm x 350mm x 1000mm
680mm x 240mm x 700mm
4200mm x 1800mm x 400mm
Materials Fiber glass rod inner, Extruded by fiber glass and high strength resin at high temperature
Fiber glass rod outer High density polyethylene coating
Metal frame Steel with high-temperature sprayed plastic or hot dip galvanized
Physical properties Fiber glass content 75-80%
Density >1.9gr/cm3
Working environment -40°C to +80°C
Minimum pulling strength 4000N +/-5%
Consistency of rod 137gr/m
Flexural modulus >46.500Mpa
Elongation at break 2.5-3%
Min bending radius 388mm

6mm cable push pull rods:

14mm cable push pull rods:
