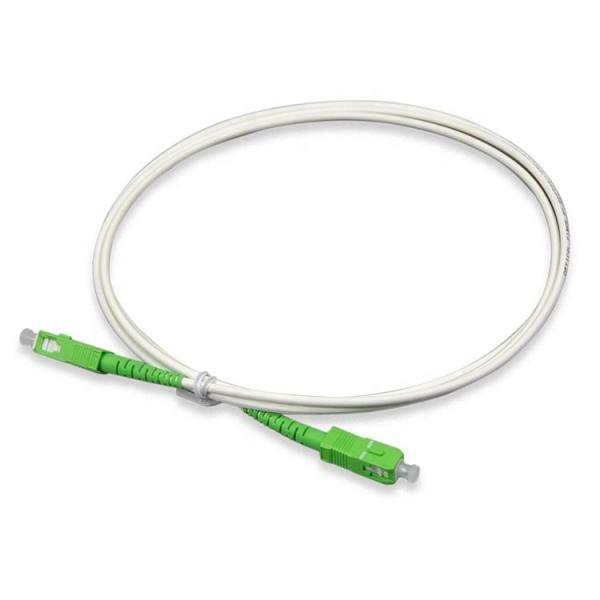

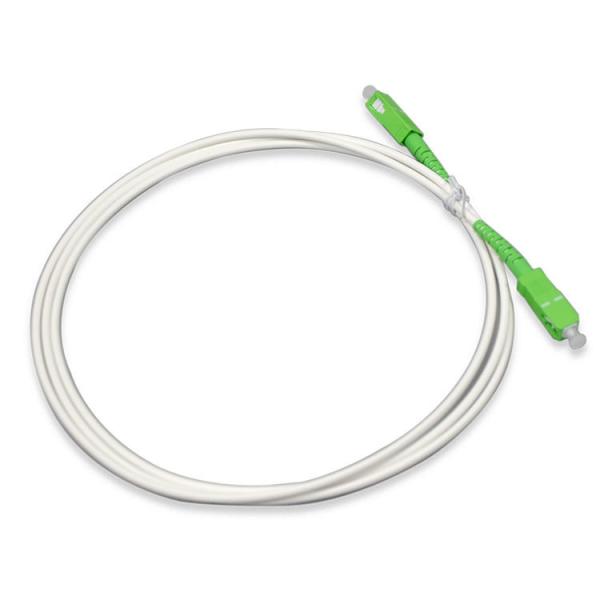

White Fiber Optic Patch Cord SC APC SM SX G657D
White Fiber Optic Patch Cord SC APC SM SX G657D
White Fiber Optic Patch Cord SC APC SM SX G657D
White Fiber Optic Patch Cord SC APC SM SX G657D
Specifications
Brand Name :
HC , OEM
Model Number :
BK5123
Certification :
CE , SGS , ISO2001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
NegotiablOe
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Cable Type :
SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Feature :
Low insertion loss
Application :
Optical fiber communication system.
Advance :
Low insertion loss
Outter Jacket :
PVC /LSZH/OFNP
Durability :
500 Cycles(0.2 dB Max Increase)
Description

Optic Fiber Patch Cord SC APC SM SX G657D White Color Patchcord

Fiber Optic Patch Cord are used to connect to SC devices and are suitable for Gigabit Ethernet, video, multimedia, premise installations, fiber optics, Fiber optic transceiver panels and fiber optic network, industrial, and military applications. Connector function Dust plugs at the tips for protection.

Features
1. Low insertion loss
2. High return loss
3. Excellent Repeatability,
exchangeability, wearability and
stability.
4. Environmentally Stable

Applications
1. Optical fiber communication system.
2. Optical fiber access networks.
3. Optical fiber CATV.
4. Optical fiber data communication
5. Optical fiber test equipment.

Fiber Optic Patch cord
Range of Mode: Single mode or Multi mode
Cable Type: SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type: PC, UPC, APC
Cable Diameter: 0.9mm, 2.0mm, 3.0mm
Outer Jacket: PVC /LSZH/OFNP
Jacket Color: SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability: 500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp. -20 ºC to +70ºC/+85ºC (armored)
Storage Temp. -40ºC to +85ºC
