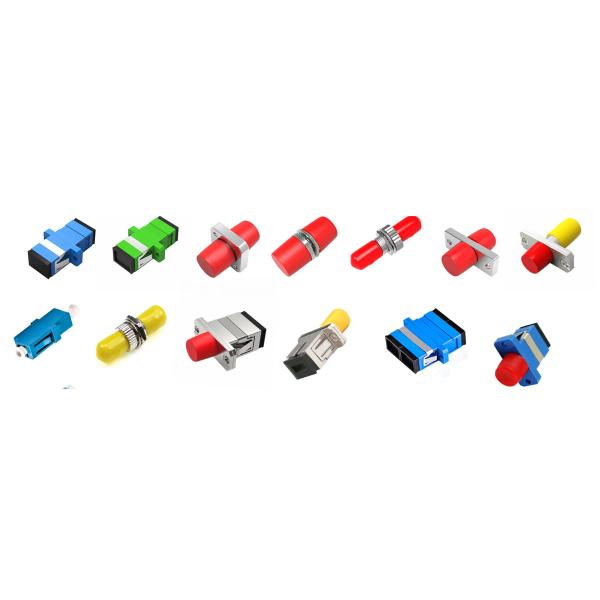

Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.
They are available for use with either singlemode or multimode patch cables.
Features:
1, LC/SC/FC/ST/MPO Type Optional
2, UPC or APC Optional
3, SM or MM Optional
4, With/Without flange Optional
5, Simplex , Duplex or Quad Optional
6, Zirconia Sleeve ,Compact design
7, Low insertional loss, High return loss
8, Comply with IEC, Telcordia GR 326 and JIS standard
Specification:
parameter | UPC | APC | UPC |
insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB |
return loss | ≥50dB | ≥60dB | ≥30dB |
Durability | >1000 | ||
operatingtemperature | -40~75℃ | ||
storage temperature | -40~85℃ | ||
interchangeability | ≤0.2dB | ||
repeatability | ≤0.2dB |
