Hot Dip Galvanized Steel OPGW Cable Fittings , Fiber Cable Storage Bracket
Hot Dip Galvanized Steel OPGW Cable Fittings , Fiber Cable Storage Bracket
Hot Dip Galvanized Steel OPGW Cable Fittings , Fiber Cable Storage Bracket
Hot Dip Galvanized Steel OPGW Cable Fittings , Fiber Cable Storage Bracket
Specifications
Brand Name :
HC , OEM
Model Number :
BK-6743
Certification :
CE , SGS , ISO2001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Usage :
Tower Or Pole
Material :
Hot Dip Galvanized Steel
Cable Storage Accembly Bracket :
Small Splint
Weight :
4kgs-12kgs
Description

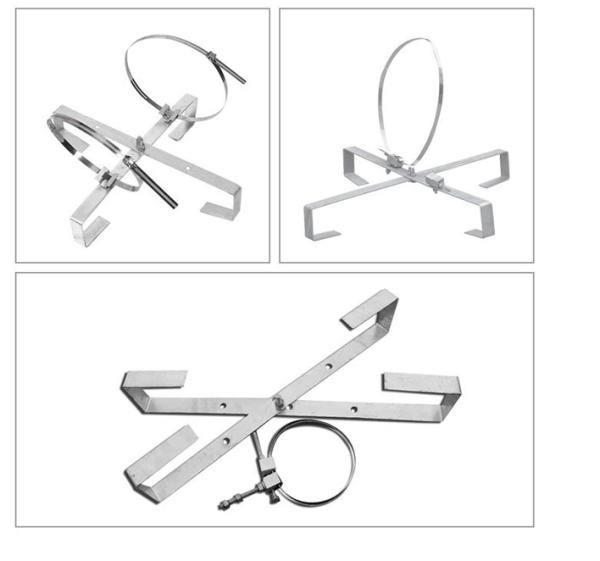

Fiber Cable Fitting Storage Accembly Bracket

Product Description

1,Use:

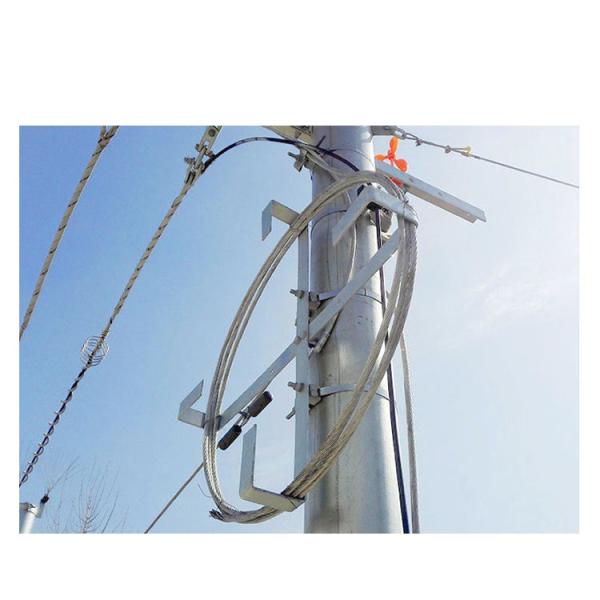

Cable storage assembly: Deposit the remaining cable on running pole or tower. Be used with joint box.

2,Model:
13.1

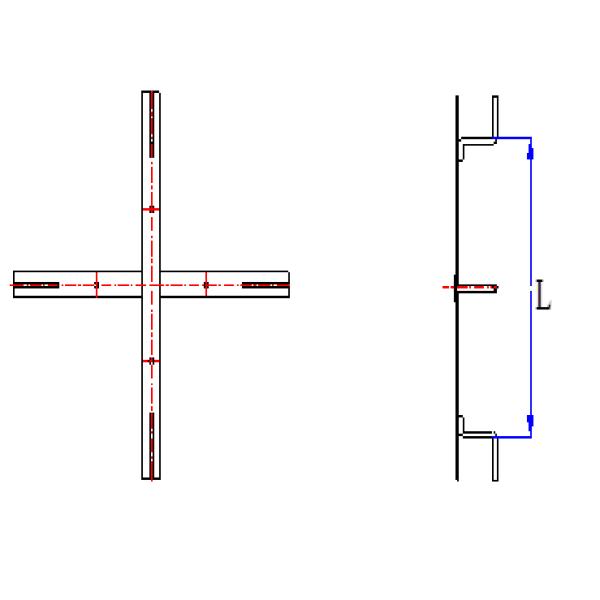

Name Model Dimension Collocation Suitable Cable Range
L(mm) Weight(kg)

Cable Storage

Assembly

 TJY 660-T 660 4.1 Small splint The dia of ADSS cable less than 14.8mm
TJY 1000-T 1000 7.7 Small splint The dia of ADSS/OPGW cable less than 14.8mm
TJY 1200-T 1200 11.8 Small splint The dia of OPGW cable less than 14.8mm

Cable Storage

Assembly

 TJY 660-H* 660 4.1 Support for pole The dia of ADSS cable less than 14.8mm
TJY 1000-H* 1000 7.7 Support for pole The dia of ADSS/OPGW cable less than 14.8mm
TJY 1200-D* 1200 11.8 Elbow hoop The dia of OPGW cable less than 14.8mm

Hot Dip Galvanized Steel OPGW Cable Fittings , Fiber Cable Storage Bracket


Instruction:
1,T---for tower H*---stainless steel hoop D*---dia of pole
2,When the cable storage assembly is used on the tower, attached two sets of small splint.
3,When the cable storage assembly installed on the pole, attached two sets of support and elbow hoop.
4,Use the pole support when the pole dia. Less than 450mm. If below, used the elbow hoop.

Hot Dip Galvanized Steel OPGW Cable Fittings , Fiber Cable Storage Bracket
