15mm Flat Braided Copper Ground Strap For Transformer Installation
15mm Flat Braided Copper Ground Strap For Transformer Installation
15mm Flat Braided Copper Ground Strap For Transformer Installation
15mm Flat Braided Copper Ground Strap For Transformer Installation
Specifications
Brand Name :
HC , OEM
Model Number :
PA-0441
Certification :
CE , SGS , ISO2001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Thickness :
0.6mm
Feature :
Conductivity
Connection :
For Electrical Connection
Function :
Switching Function
Color :
Red
Width :
5mm-15mm
Description

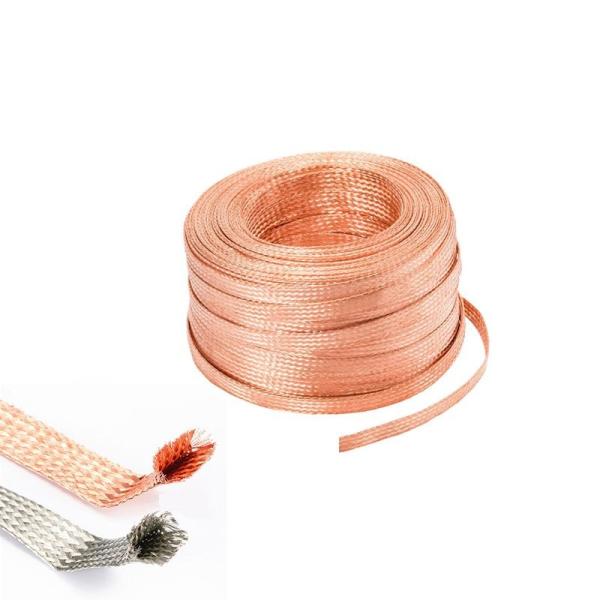

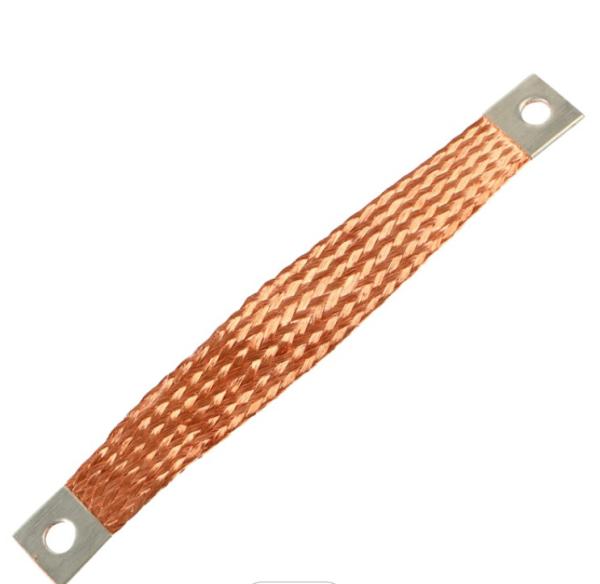

Braided Copper Ground Strap

Braided copper ground strap also know as flexible copper braid,it is made of high quality round copper wire or tinned soft round copper wire braided by multiple strands in a single layer or multiple layers.It can be used for transformer installation, high and low voltage switch cabinets, vacuum appliances, enclosed busbars, generators and busbars, rectifier equipment, connections between rectifier cabinets and isolation switches, and connections between busbars. It can improve the conductivity, adjust the installation error of the equipment, and at the same time play the role of (damping) work compensation, facilitating the test and equipment maintenance.

Braided copper ground strap

  • Flat Copper Braid
  • Tuber Copper Braid
  • Copper Braid
  • Copper tinned Braid
CROSS-SECTION
(MM²)		 STRUCTURE OUTER DIMENSION CALCULATING WEIGHT (KG/KM)
standard Cross-section (mm²) calculating Cross-section (mm²) layers*No.of strands*No.of wires/singlewire diameter (mm) width(mm) thickness(mm)
2 2.12 24X5X1/0.15 5 0.6 21
2.5 2.54 24X6X1/0.15 6 0.7 25.4
4 4.24 24X10X1/0.15 8 0.8 42
4 3.81 36X6X1/0.15 10 0.7 38
6 6.36 36X10X1/0.15 12 0.8 63
8 8.48 48X10X1/0.15 13 0.8 85
10 10.17 48X12X1/0.15 15 1 102
10 10.6 40X15X1/0.15 15 1.2 106
12 12.72 48X15X1/0.15 20 1.2 127
16 16.96 48X20X1/0.15 22 1.3 170
20 21.2 48X25X1/0.15 25 1.4 212
25 25.43 48X30X1/0.15 30 1.5 254
25 25.43 48X15X2/0.15 20 2.5 254
35 33.93 64X30X1/0.15 40 1.5 340
35 33.93 48X20X2/0.15 25 2.6 340
50 50.87 64X45X1/0.15 50 1.8 510
50 50.87 48X30X2/0.15 30 3 510
50 50.87 48X20X3/0.15 25 4 510
70 70.66 80X50X1/0.15 70 2 706
70 67.83 64X30X2/0.15 40 3 680
75 76.34 48X30X3/0.15 32 4.5 763
100 101.72 96X60X1/0.15 100 2 1017
100 101.72 64X45X2/0.15 52 4 1017
100 101.72 48X30X4/0.15 35 6 1017
120 118.68 96X70X1/0.15 120 2.5 1190
120 122.92 48X30X4+48x25x1/0.15 37 8 1230

Customiaztion available for special dimension,shapes and structure.We can according to your drawing customized.
