OEM Electric Power Fitting Mechanical Cable Connectors
OEM Electric Power Fitting Mechanical Cable Connectors
OEM Electric Power Fitting Mechanical Cable Connectors
OEM Electric Power Fitting Mechanical Cable Connectors
Specifications
Brand Name :
HC , OEM
Model Number :
PA-0431
Certification :
CE , SGS , ISO2001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Application :
Low And Medium Voltage
Size :
25 mm² to 400 mm².
Advance :
High-Tensile
Material :
Tin-Plated Aluminium Alloy.
Diamention :
20mm-130mm
Bolt No. :
2 , 4, 6 , 8
Description

MECHANICAL CONNECTORS

Mechanical connectors and repair sleeves are designed for use in low and medium voltage applications. Only three sizes cover conductor sizes from 25 mm² to 400 mm². All products consist of a tin-plated body, shear-head bolts and inserts for small conductor sizes.

Repair sleeves made of special aluminium alloy, these contact bolts are double shear head bolts with hexagon heads. The bolts are treated with a highly lubricating agent. Contact bolts are irremovable once their heads have been sheared off. The Lug body is made of a high-tensile, tin-plated aluminium alloy. The internal surface of the conductor holes are grooved.

Repair sleeves are chamfered at the edges and available with or without oil barrier (as blocked and unblocked types) depending on the application requirements. The bolted fitting featured herein was developed specifically for use in medium voltage cable accessories up to 42 kV. They may also be used in the 1 kV range.

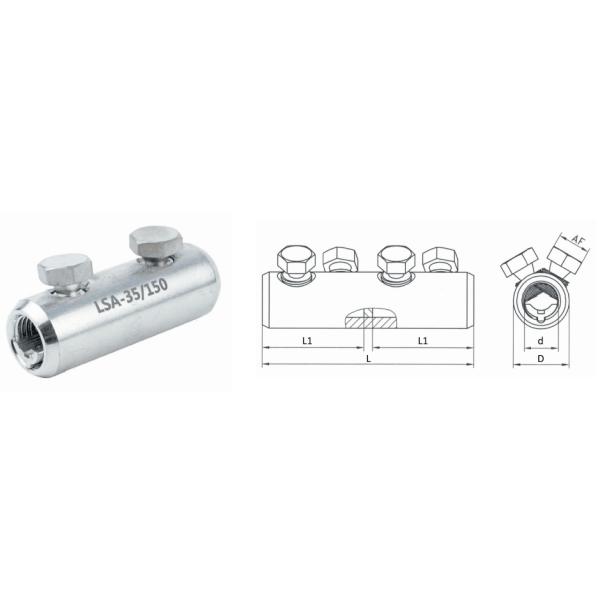

OEM Electric Power Fitting Mechanical Cable Connectors

Type Cable size
mm2		 Bolt No. Bolt head
AF(mm)		 Dimension (mm)
L L1 D d
LSA-10/35 10-35 2 10 45 20 19 8.5
LSA-25/95 25-95 2 13 65 30 24 12.8
LSA-35/150 35-150 2 17 80 38 28 15.8
LSA-95/240 95-240 4 19 125 60 33 20
LSA-120/300 120-300 4 22 140 65 37 24
LSA-185/400 185-400 6 22 170 80 42 25.5
LSA-500/630 500-630 6 27 200 90 50 33.5
LSA-800 800 8 27 270 130 56 36
