Double ADSS Fiber Cable AGS suspension clamp 100KN
Double ADSS Fiber Cable AGS suspension clamp 100KN
Double ADSS Fiber Cable AGS suspension clamp 100KN
Double ADSS Fiber Cable AGS suspension clamp 100KN
Specifications
Brand Name :
HC , OEM
Model Number :
AXS Series
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Galvanized steel or Aluminium Alloy
Link Fitting :
York Plate , TC-07
Clamp :
AGS Clamp
Outter Rods :
1800mm-2400mm
Length :
1100MM-3000MM
The Grip Strength :
100kn
Description

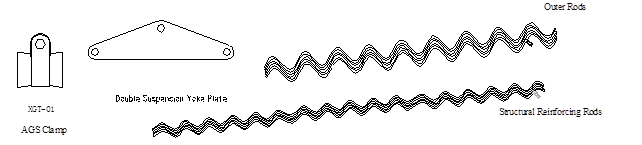

Double ADSS Fiber Cable AGS Suspension Set

Double ADSS Fiber Cable AGS suspension clamp 100KN

1. The Max. unilateral angle of double suspension will be 30º－36º.

2. All the above scheme are Universal Scheme, if use other link fittings, please illuminate in particular.

3. The above items not include all of our products, if you have any requirement, please consult with our technical Department.

Specification (The grip strength of the clamp is bigger than 20% of the rated tensile strength)

Model Available Dia. of Cable Length of Outer Rods

Length of

Structural Reinforcing Rods

 Weight(kg) Universal Scheme
Yoke Plate AGS Clamp Link Fittings
AXS 0960 9.0-9.6 1800 2200 2.36 L-1040

Referrence

Table 16.3

 U-7
AXS 1010 9.7-10.1 1800 2200 2.45 L-1040
AXS 1060 10.2-10.6 1800 2200 2.61 L-1040
AXS 1110 10.7-11.1 1800 2200 2.61 L-1040
AXS 1160 11.2-11.6 1800 2200 2.7 L-1040
AXS 1170 11.7-11.7 1800 2200 2.7 L-1040
AXS 1200 11.8-12.0 1900 2400 2.88 L-1245
AXS 1270 12.1-12.7 1900 2400 2.88 L-1245
AXS 1290 12.8-12.9 1900 2400 3.15 L-1245
AXS 1360 13.0-13.6 1900 2400 3.15 L-1245
AXS 1410 13.7-14.1 2100 2700 3.5 L-1245
AXS 1430 14.2-14.3 2100 2700 3.81 L-1245
AXS 1450 14.4-14.5 2100 2700 3.81 L-1245
AXS 1510 14.6-15.1 2100 2700 3.81 L-1245
AXS 1580 15.2-15.8 2100 2700 3.81 L-1245
AXS 1600 15.9-16.0 2100 2700 3.92 L-1245
AXS 1690 16.1-16.9 2400 3000 4.43 HPL-550
AXS 1730 17.0-17.3 2400 3000 4.78 HPL-550
