100m Span Preformed Dead End Clamp , Aluminum Clad Steel Preformed Dead End Cable Grips
100m Span Preformed Dead End Clamp , Aluminum Clad Steel Preformed Dead End Cable Grips
100m Span Preformed Dead End Clamp , Aluminum Clad Steel Preformed Dead End Cable Grips
100m Span Preformed Dead End Clamp , Aluminum Clad Steel Preformed Dead End Cable Grips
Specifications
Brand Name :
HC , OEM
Model Number :
ANJ1160 , ANJ1280 , ANJ1410
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Aluminum , Aluminum Clad Steel , Galvanized Steel
Type :
Fiber Cable Fittings
Span :
20m-100m Span
Color Label :
Green , Black , Red , Blue
Holding Strength :
5Kn-15Kn
Length :
800MM-1160MM
Description

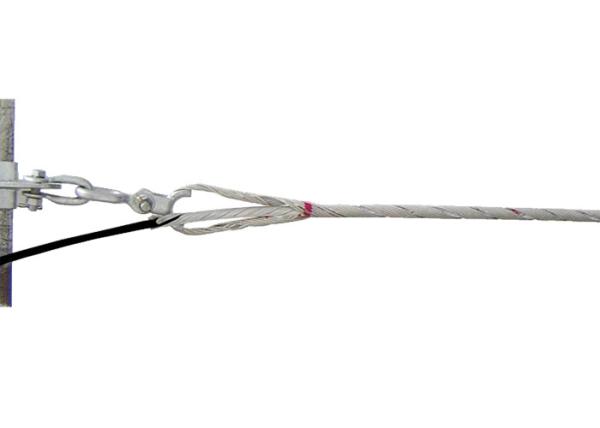

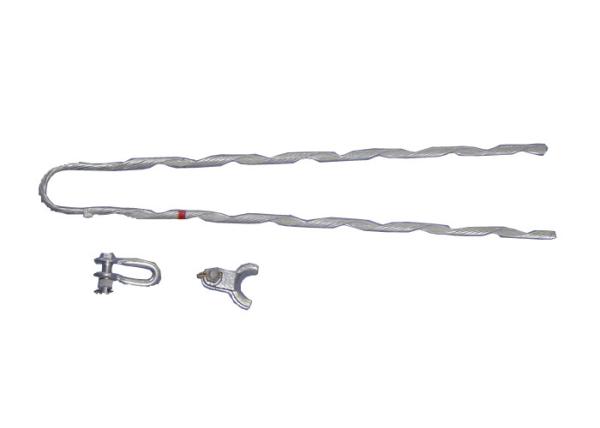

Aluminum Clad Steel Preformed Dead End Clamp

The thension dead-end is a dielectric Dead-end designed to terminate short span, low ension ADSS FIBER Optic cables in low voltage environments. Un-like the limited, medium and high tension one found later in this section, the lite tension dead end is reduced to a sigle layer component that offers an economical solution for every light loads.The products effectively transfer the low anxial load on the cable.

100m Span Preformed Dead End Clamp , Aluminum Clad Steel Preformed Dead End Cable Grips

1,Material of preformed rods- aluminum-clad steel rod or galvanization steel rod.

2,The Max. span will be 100m.

1.1 Specification

Model Available Dia. of Cable

Length of Dead-end Component

 Weight(kg) Universal Scheme
Clevis Thimble
ANJ 0950 9.0-9.5 800 0.38 GHX-04 TC-04
ANJ 1050 9.6-10.5 850 0.49 GHX-04 TC-04
ANJ 1160 10.6-11.6 900 0.52 GHX-04 TC-04
ANJ 1280 11.7-12.8 960 0.65 GHX-04 TC-04
ANJ 1410 12.9-14.1 1080 0.82 GHX-04 TC-04
ANJ 1560 14.2-15.6 1160 1.22 GHX-04 TC-04

3:Packing:Wooden Case , Carton Etc

100m Span Preformed Dead End Clamp , Aluminum Clad Steel Preformed Dead End Cable Grips

100m Span Preformed Dead End Clamp , Aluminum Clad Steel Preformed Dead End Cable Grips

100m Span Preformed Dead End Clamp , Aluminum Clad Steel Preformed Dead End Cable Grips
