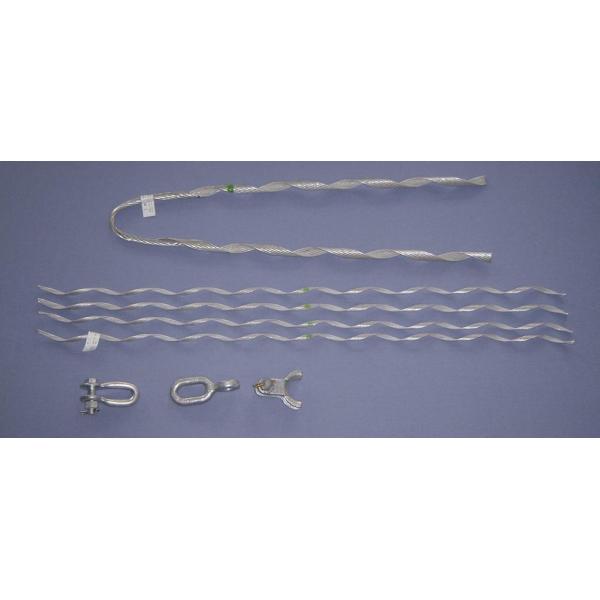

Medium Span Preformed Armor Rod In Transmission Line
Medium Span Preformed Armor Rod In Transmission Line
Medium Span Preformed Armor Rod In Transmission Line
Medium Span Preformed Armor Rod In Transmission Line
Specifications
Brand Name :
HC , OEM
Model Number :
ANY Series
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Aluminum , Aluminum Clad Steel , Galvanized Steel
Type :
Fiber Cable Fittings
Span :
100M-800M
Color Label :
Green , Black , Red , Blue
Holding Strength :
20Kn-100Kn
Length :
800MM-3000MM
Description

Medium Span Preformed Tension Set

Specification Sheet:

Model Available Dia. of Cable(mm)

Holding Strength

(KN)

 Available Span

Length ofDead-end Component

(mm)

 Length ofStructural Reinforcing Rods(mm)

Weight

(kg)

 UniversalScheme
Clevis(Eye Chain Link) Thimble Anchor Shackle
ANY 1220 040 11.5-12.2 40 400/500 1260 1800 2.14 PD-7 TC 07 U-7/2
ANY 1290 040 12.3-12.9 40 400/500 1260 1800 2.19 PD-7 TC 07 U-7/2
ANY 1370 040 13.0-13.7 40 400/500 1260 1800 2.44 PD-7 TC 07 U-7/2
ANY 1460 040 13.8-14.6 40 400/500 1260 1800 2.49 PD-7 TC 07 U-7/2
ANY 1550 040 14.7-15.5 40 400/500 1260 1800 2.54 PD-7 TC 07 U-7/2
ANY 1650 040 15.6-16.5 40 400/500 1260 1800 2.92 PD-7 TC 07 U-7/2
ANY 1370 050 13.0-13.7 50 500/600/700 1400 2000 2.7 PD-7 TC 07 U-7/2
ANY 1460 050 13.8-14.6 50 500/600/700 1400 2000 2.76 PD-7 TC 07 U-7/2
ANY 1550 050 14.7-15.5 50 500/600/700 1400 2000 2.81 PD-7 TC 07 U-7/2
ANY 1650 050 15.6-16.5 50 500/600/700 1400 2000 3.23 PD-7 TC 07 U-7/2
ANY 1370 060 13.0-13.7 60 600/700/800 1560 2200 2.98 PD-7 TC 07 U-7/2
ANY 1460 060 13.8-14.6 60 600/700/800 1560 2200 3.04 PD-7 TC 07 U-7/2
ANY 1550 060 14.7-15.5 60 600/700/800 1560 2200 3.11 PD-7 TC 07 U-7/2
ANY 1650 060 15.6-16.5 60 600/700/800 1560 2200 3.57 PD-7 TC 07 U-7/2
ANY 1460 070 13.8-14.6 70 700/800/900 1600 2400 3.2 PD-7 TC 07 U-7/2
ANY 1550 070 14.7-15.5 70 700/800/900 1600 2400 3.27 PD-7 TC 07 U-7/2
ANY 1650 070 15.6-16.5 70 700/800/900 1600 2400 3.77 PD-7 TC 07 U-7/2
ANY 1750 070 16.6-17.5 70 700/800/900 1600 2400 4.12 PD-7 TC 07 U-7/2
ANY 1870 070 17.6-18.7 70 700/800/900 1600 2400 4.64 PD-7 TC 07 U-7/2
ANY 1550 080 14.7-15.5 80 800/900/1000 2000 3000 4.08 PD-10 TC 10 U-10/2
ANY 1650 080 15.6-16.5 80 800/900/1000 2000 3000 4.71 PD-10 TC 10 U-10/2
ANY 1750 080 16.6-17.5 80 800/900/1000 2000 3000 5.14 PD-10 TC 10 U-10/2
ANY 1870 080 17.6-18.7 80 800/900/1000 2000 3000 5.79 PD-10 TC 10 U-10/2
ANY 1650 100 15.6-16.5 100 1000 2800 4000 7.02 PD-10 TC 10 U-10/2
ANY 1750 100 16.6-17.5 100 1000 2800 4000 7.22 PD-10 TC 10 U-10/2
ANY 1870 100 17.6-18.7 100 1000 2800 4000 7.91 PD-10 TC 10 U-10/2

Note:1.All the above schemes are Universal Scheme, if use other link fittings, please illuminate in particular.

The preformed tension clamp and guy wire dead end grips used on the conductor and earth wire look alike in shape, but there are really big differences in the specification, raw material, and strength requirement of the two types of guy grips.

While different countries have different design standards, we can do the OEM according to the customer’s requirements.

As an experienced preformed tension clamp manufacturer, Jingyoung knows the standard, manufacturing process and knows your needs.

If you have any questions, feel free to contact us.

Packing: Cartons, wooden case ,ETCMedium Span Preformed Armor Rod In Transmission Line
