Aluminium Clad Steel Preformed Armor Rods For ACSR Cable
Aluminium Clad Steel Preformed Armor Rods For ACSR Cable
Aluminium Clad Steel Preformed Armor Rods For ACSR Cable
Aluminium Clad Steel Preformed Armor Rods For ACSR Cable
Aluminium Clad Steel Preformed Armor Rods For ACSR Cable
Aluminium Clad Steel Preformed Armor Rods For ACSR Cable
Specifications
Brand Name :
HC , OEM
Model Number :
ANY0940 020 , ANY1220 020 , ANY1460 020
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Aluminum , Aluminum Clad Steel , Galvanized Steel
Type :
Fiber Cable Fittings
Span :
100M-800M
Color Label :
Green , Black , Red , Blue
Holding Strength :
20Kn-100Kn
Length :
500mm-2000mm
Description

Aluminium Clad Steel Preformed Armor Rods for ACSR Cable

The preformed armor rods are used to keep the conductor from the vibration , clamp compressive stress ,friction and abrasion , electric arc and other damages,and are always installed in the ship-type suspension clamp and support insulators. The preformed armor rods and repair could repair the damaged conductor and make it recover the primary mechnical intensity and electric capability.

The structure of the preformed armor rods and preformed short armor rods is simple and a set of preformed rods become an empty pipe and enlace ,hold and protect the conductor.

1.1 Specification

Model Conductor Line Dia. (mm) Inner Dia.(mm) Length (mm) No. Weight (Kg)
Type Dia. (mm)
FYH-95/15 LGJ-95/15 13.61

3.60

 11.40 1400 13 0.53
FYH-95/20 LGJ-95/20 13.87 11.40 0.54
FYH-95/55 LGJ-95/55 16.00 13.30 1500 16 0.62
FYH-120/7 LGJ-120/7 14.5 3.60 12.00 1400 14 0.55
FYH-120/20 LGJ-120/20 15.07 12.50 0.57
FYH-120/25 LGJ-120/25 15.74 13.00 0.58
FYH-120/70 LGJ-120/70 18.00 4.60 14.90 1800 0.75
FYH-150/8 LGJ-150/8 16.00 3.60 13.30 1500 16 0.62
FYH-150/20 LGJ-150/20 16.67 13.70 0.65
FYH-150/25 LGJ-150/25 17.10 14.20 0.64
FYH-150/35 LGJ-150/35 17.50 14.50 0.66
FYH-185/10 LGJ-185/10 18.00 4.60 14.90 1800 14 1.24
FYH-185/25 LGJ-185/25 18.90 15.70 1.25
FYH-185/30 LGJ-185/30 18.88 15.70 1.25
FYH-185/45 LGJ-185/45 19.60 16.30 1.26
FYH-210/10 LGJ-210/10 19.00 4.60 15.90 1800 14 1.27
FYH-210/25 LGJ-210/25 19.98 16.60 1.28
FYH-210/35 LGJ-210/35 20.38 16.90 1.28
FYH-210/50 LGJ-210/50 20.86 17.30 1.30
FYH-240/30 LGJ-240/30 21.60 4.60 17.90 1900 16 1.44
FYH-240/40 LGJ-240/40 21.66 17.90 1.44
FYH-240/55 LGJ-240/55 22.40 18.60 1.59
FYH-300/15 LGJ-300/15 23.01 6.30 19.10 2000 13 2.30
FYH-300/20 LGJ-300/20 23.43 19.40 2.30
FYH-300/25 LGJ-300/25 23.76 19.70 2.33
FYH-300/40 LGJ-300/40 23.94 19.90 2.34
FYH-300/50 LGJ-300/50 24.26 20.10 2.34
FYH-300/70 LGJ-300/70 25.20 20.90 2.54
FYH-400/20 LGJ-400/20 26.91 6.30 22.30 2200 14 2.80
FYH-400/25 LGJ-400/25 26.64 22.10 2.80
FYH-400/35 LGJ-400/35 26.82 22.30 2.80
FYH-400/50 LGJ-400/50 27.63 23.00 2.80
FYH-400/65 LGJ-400/65 28.00 23.20 2.83
FYH-400/95 LGJ-400/95 29.14 24.80 2.85
FYH-500/35 LGJ-500/35 30.00 6.30 24.90 2500 16 3.48
FYH-500/45 LGJ-500/45 30.00 24.90 3.48
FYH-500/65 LGJ-500/65 30.96 25.70 3.50
FYH-630/45 LGJ-630/45 33.60 7.80 27.90 2500 15 5.32
FYH-630/55 LGJ-630/55 34.32 28.50 5.40
FYH-630/80 LGJ-630/80 34.82 28.90 5.40
FYH-800/55 LGJ-800/55 38.40 7.80 31.80 2500 17 6.02
FYH-800/70 LGJ-800/70 38.58 32.10 6.10
FYH-800/100 LGJ-800/100 38.98 32.30 6.20

Aluminium Clad Steel Preformed Armor Rods For ACSR Cable

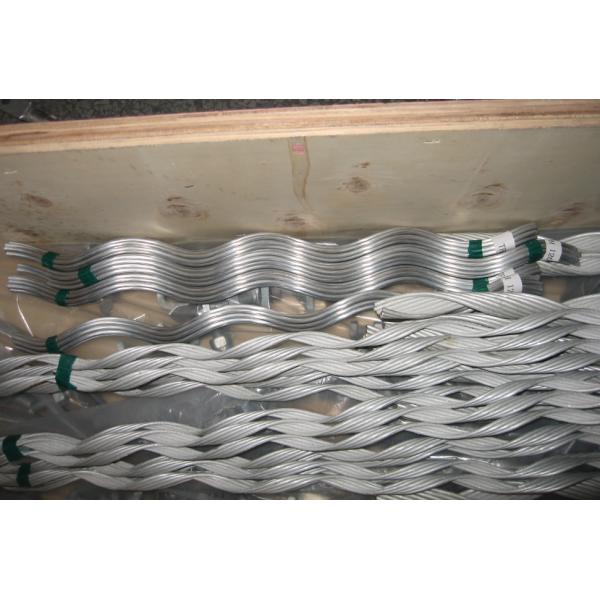

Packing: Wooden case , Carton Etc.

Aluminium Clad Steel Preformed Armor Rods For ACSR Cable
