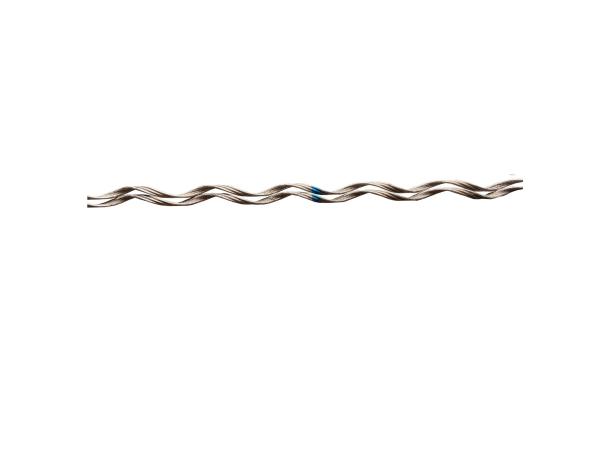

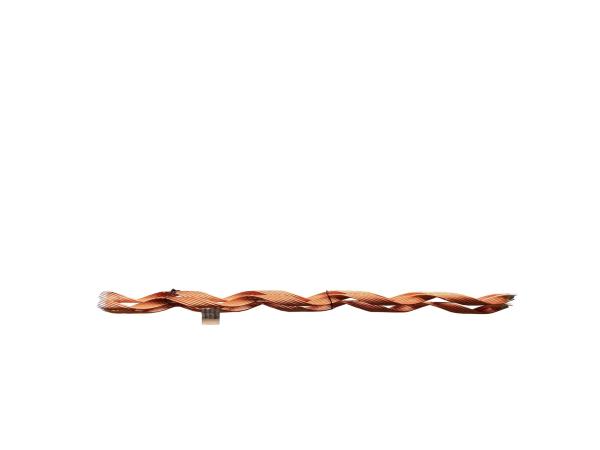

500mm Preformed Armor Rods For Copper Stranded Conductor
500mm Preformed Armor Rods For Copper Stranded Conductor
500mm Preformed Armor Rods For Copper Stranded Conductor
500mm Preformed Armor Rods For Copper Stranded Conductor
Specifications
Brand Name :
HC , OEM
Model Number :
BHT Series
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Galvanized Steel
Type :
For Copper Wire
Dia Rang :
7mm-29mm
Color Label :
Green , Black , Red , Blue
Conductor Range :
35-150
Length :
500mm-2000mm
Description

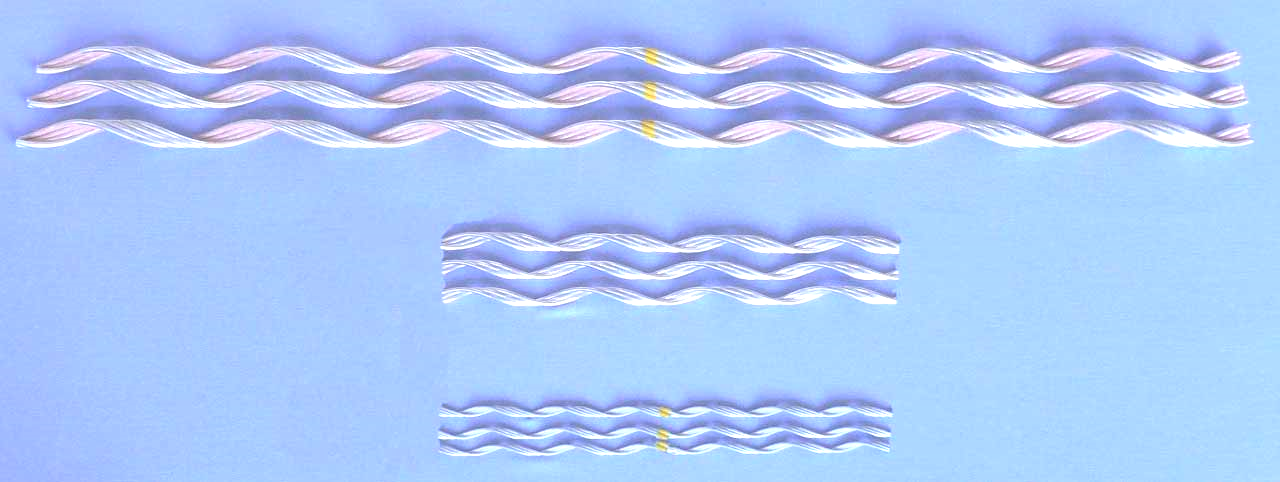

500mm Preformed Armor Rods For Copper Stranded Conductor

Use and structure:

The preformed armor rods are used to keep the conductor from the vibration , clamp compressive stress ,friction and abrasion , electric arc and other damages.The structure of the preformed armor rods is simple and a set of preformed rods become an empty pipe and enlace ,hold and protect the conductor.This product is suitable for copper stranded and copper-clad steel wire.

Trait:

  1. The preformed rods holding the conductor tightly, avoid slip of conductor, and so that minimized the abrasion of conductor.

2) Due to the grip flexibility of preformed rods, it will keep the conductor from loosen.

3) The raw material have been dealed with stainless, so that to keep excellent corrosion resistance.

4) Installed by hand directly, no need special tool.

5) Easy to guarantee the quality of installation, inspectioned by optic view without special trainning.

6) The preformed rods is an usual fitting, it can be matched with different clamps.

“*” means the length of 500,800,1200,1500,2000mm; meanwhile, the length also can be provided by customer.

1.1 Specification

Table Selection of Preformed Armor Rods for Copper Stranded Conductor

Type Model Conductor Area(mm2) Cable Dia.(mm) * L(mm) Material Remark
1 BHT35/500*-T 35 500* Copper-clad steel strand
2 BHT50/500*-T 50 500*
3 BHT70/500*-T 70 500*
4 BHT95/500*-T 95 500*
5 BHT100/500*-T 100 500*
6 BHT120/500*-T 120 500*
7 BHT150/500*-T 150 500*

Remark: Consult Hope when for sizes or strandings not shown

“ * ”LENGTH:500,800,1200,1500,2000mm; LENGTH CAN PRODUCE AS REQUESTED.

Packing: Wooden case , Carton Etc.

500mm Preformed Armor Rods For Copper Stranded Conductor
