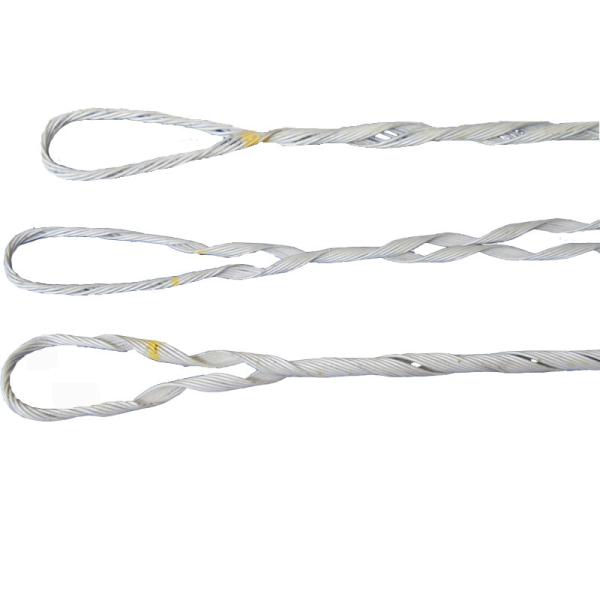

SGS Aluminium Alloy Preformed Armour Rod For Copper Wire
SGS Aluminium Alloy Preformed Armour Rod For Copper Wire
SGS Aluminium Alloy Preformed Armour Rod For Copper Wire
SGS Aluminium Alloy Preformed Armour Rod For Copper Wire
Specifications
Brand Name :
HC , OEM
Model Number :
ANY0940 020 , ANY1220 020 , ANY1460 020
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Galvanized Steel
Type :
For Copper Wire
Dia Rang :
7mm-29mm
Color Label :
Green , Black , Red , Blue
Conductor Range :
35-150
Length :
500mm-2000mm
Description

SGS Aluminium Alloy Preformed Armour Rod For Copper Wire

1, Material of preformed rods- aluminum-clad steel rod or galvanization steel rod.

1.1 Specification

Model Suitable Conductor Dia.(mm) GB 1179-1983
Suitable Conductor		 Color Code
Clamp Length (mm)
Min Max
HX 3110 7.85 8.28 35/6 Red 1180
HX 3610 1420
HX 3113 9.31 9.88 50/8 Black 1270
HX 3613 1580
HX 3116 11.10 11.76 50/30,70/10 Blue 1370
HX 3616 1680
HX 3119 13.24 14.00 70/40,95/15,95/20 Green 1472
HX 3619 1780
HX 3120 14.01 14.86 120/7 Yellow 1526
HX 3620 1830
HX 3121 14.87 15.39 120/20 Red 1575
HX 3621 1880
HX 3122 15.40 16.00 95/55,120/25,150/8 Black 1628
HX 3622 1930
HX 3124 16.66 17.25 150/20,150/25 Blue 1678
HX 3624 1980
HX 3125 17.30 17.86 150/35 Green 1730
HX 3625 2030
HX 3126 17.87 18.80 120/70,185/10 Yellow 1830
HX 3626 2130
HX 3127 18.81 19.86 185/25,185/30,185/45,210/10 Red 1830
HX 3128 19.87 20.68 210/25,210/35 Black 1930
HX 3129 20.69 21.46 210/50 Blue 1930
HX 3130 21.47 23.04 240/30,240/40,240/55,300/15 Green 1980
HX 3131 23.05 23.60 300/20 Yellow 2030
HX 3132 23.61 24.79 300/25,300/40,300/50 Red 2234
HX 3133 24.80 25.81 300/70 Black 2337
HX 3134 25.82 26.29 400/25 Blue 2390
HX 3135 26.30 27.03 400/20,400/35 Green 2440
HX 3136 27.04 27.89 400/50 Yellow 2440
HX 3137 27.90 28.93 400/65 Red 2540
HX 3138 28.94 29.49 400/95 Black 2540
HX 3139 29.50 30.68 500/35,500/45 Blue 2540

The installation of splice is simple, prompt and facility. The installation will not be affected by the electriferous or not of conductor. It can avoid power cut when repairing the conductor.

This preformed splice fittings bear the excellence of light weight, high vibration resistance, good flexibility and they would prolong the serve life of conductor

SGS Aluminium Alloy Preformed Armour Rod For Copper Wire“ * ”LENGTH:500,800,1200,1500,2000mm; LENGTH CAN PRODUCE AS REQUESTED.

Packing: Wooden case , Carton Etc.

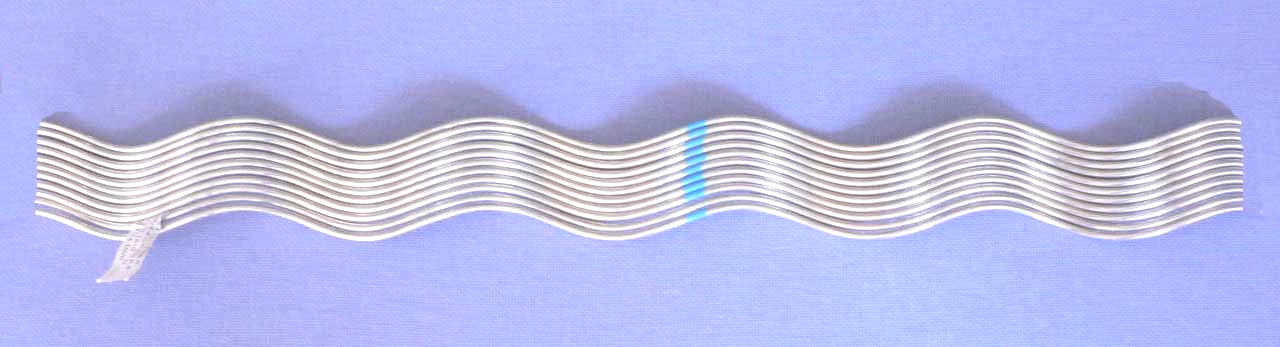

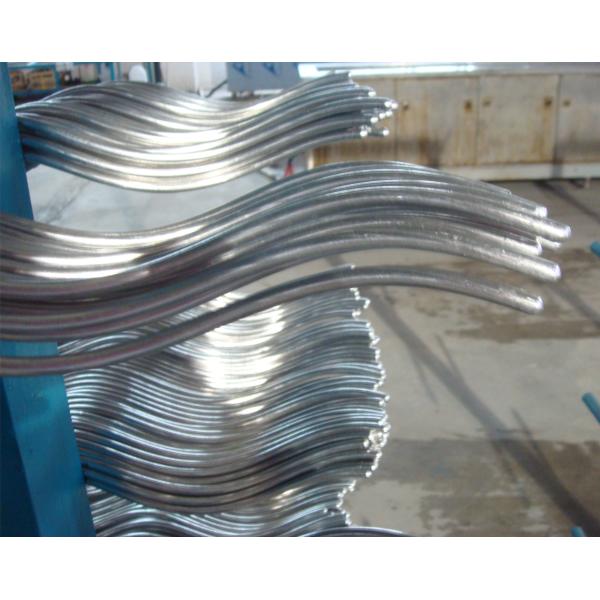

SGS Aluminium Alloy Preformed Armour Rod For Copper Wire
