3000MM Preformed Ground Wire Tension Clamp Fiber Cable Fittings
3000MM Preformed Ground Wire Tension Clamp Fiber Cable Fittings
3000MM Preformed Ground Wire Tension Clamp Fiber Cable Fittings
3000MM Preformed Ground Wire Tension Clamp Fiber Cable Fittings
Specifications
Brand Name :
HC , OEM
Model Number :
ANJ
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Aluminum , Aluminum Clad Steel , Galvanized Steel
Type :
Fiber Cable Fittings
Span :
100M-800M
Color Label :
Green , Black , Red , Blue
Holding Strength :
20Kn-100Kn
Length :
800MM-3000MM
Description

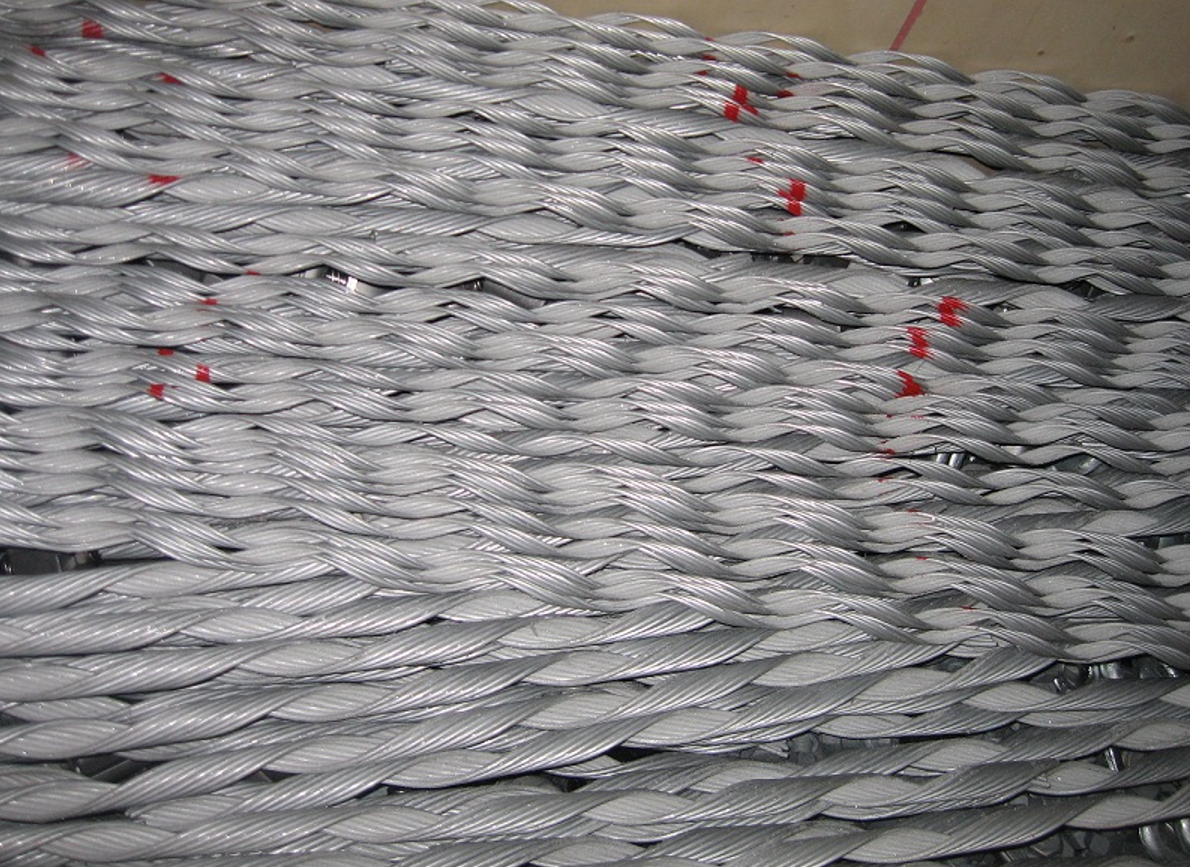

Preformed Tension Clamp

Preformed Tension Clamp ,or Dead end grip is one series of Guy grip It is much different from the dead end cable grips, used on ADSS/OPGW/OPPC communication line.

3000MM Preformed Ground Wire Tension Clamp Fiber Cable Fittings

According to the application, the dead end grip includes guy wire dead end grips, preformed dead end grip used on the conductor, and performed grip used on the grounding wire. Guy wire preforms are applied widely on dead end poles. The guy wire preforms to connect the insulator or anchor rod to accomplish the function of establishing the pole.

Dead end grip also called preformed dead end grip, is widely used on ACSR, AAC, AAAC, copper conductor, and steel wire.

Preformed dead end grip features high grip strength, easy installation, and anti-corrosion to satisfy today’s growing overhead line construction market.

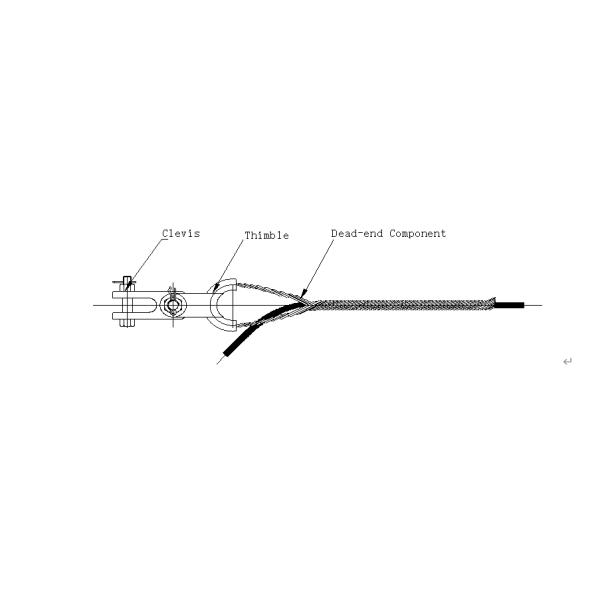

Model Available Dia. of Cable

Length of Dead-end Component

 Weight(kg) Universal Scheme
Clevis Thimble
ANJ 0950 9.0-9.5 800 0.38 GHX-04 TC-04
ANJ 1050 9.6-10.5 850 0.49 GHX-04 TC-04
ANJ 1160 10.6-11.6 900 0.52 GHX-04 TC-04
ANJ 1280 11.7-12.8 960 0.65 GHX-04 TC-04
ANJ 1281 12.2-12.8 1003 0.68 GHX-04 TC-04
ANJ 1410 12.9-14.1 1080 0.82 GHX-04 TC-04
ANJ 1560 14.2-15.6 1160 1.22 GHX-04 TC-04

Packing: Cartons, wooden case ,ETC3000MM Preformed Ground Wire Tension Clamp Fiber Cable Fittings
