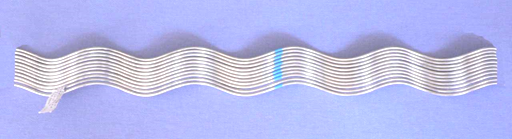

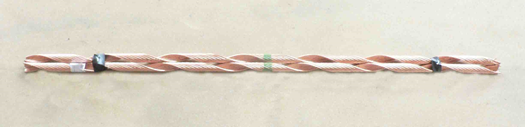

Preformed Armor Rod Or Repair For ACSR
Preformed Armor Rod Or Repair For ACSR
Preformed Armor Rod Or Repair For ACSR
Preformed Armor Rod Or Repair For ACSR
Specifications
Brand Name :
HC , OEM
Model Number :
ANY Series
Certification :
CE , SGS , ISO2001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Advance :
Long Creepage Distance
Feature :
Superior Electrial Function , Aging Resistance.
Structure :
Inner Rods And Outter Dead End
Material :
Aluminum , Aluminum Clad Steel , Galvanized Steel
Description

Preformed Armor Rod Or Repair For ACSR

Introduction:

Material of Preformed Armor Rod or Repair for ACSR is aluminum alloy wire, Please Consult H&C when for sizes or strandings are not shown.

Preformed Amor rod Or Repair most are normally used for ADSS cable line’s fixing , ACSR , Galvanized Strand Iron Wire Strand , Aluminum Standarded Conductor and Etc .

HX 3110 7.85 8.28 35/6 Red 1180
HX 3610 1420
HX 3113 9.31 9.88 50/8 Black 1270
HX 3613 1580
HX 3116 11.10 11.76 50/30,70/10 Blue 1370
HX 3616 1680
HX 3119 13.24 14.00 70/40,95/15,95/20 Green 1472
HX 3619 1780
HX 3120 14.01 14.86 120/7 Yellow 1526
HX 3620 1830
HX 3121 14.87 15.39 120/20 Red 1575
HX 3621 1880
HX 3122 15.40 16.00 95/55,120/25,150/8 Black 1628
HX 3622 1930
HX 3124 16.66 17.25 150/20,150/25 Blue 1678
HX 3624 1980
HX 3125 17.30 17.86 150/35 Green 1730
HX 3625 2030
HX 3126 17.87 18.80 120/70,185/10 Yellow 1830
HX 3626 2130
HX 3127 18.81 19.86 185/25,185/30,185/45,210/10 Red 1830
HX 3128 19.87 20.68 210/25,210/35 Black 1930
HX 3129 20.69 21.46 210/50 Blue 1930
HX 3130 21.47 23.04 240/30,240/40,240/55,300/15 Green 1980
HX 3131 23.05 23.60 300/20 Yellow 2030
HX 3132 23.61 24.79 300/25,300/40,300/50 Red 2234
HX 3133 24.80 25.81 300/70 Black 2337
HX 3134 25.82 26.29 400/25 Blue 2390
HX 3135 26.30 27.03 400/20,400/35 Green 2440
HX 3136 27.04 27.89 400/50 Yellow 2440
HX 3137 27.90 28.93 400/65 Red 2540
HX 3138 28.94 29.49 400/95 Black 2540

Preformed Armor Rod Or Repair For ACSR

Preformed Armor Rod Or Repair For ACSR

Feature:

The tension clamp is single preformed rods structure, simple and reliable, convenient and quick installation. The special design of helical protection rods makes ensure that Tension Sets can not cause undue stress to the ADSS cables. As a result, the normal lifetime of cables system is ensured.

Advantages:

1.Light-weight.
2. High strength.
3.Long creepage distance.
4.Saving metal material and reduce the cost of line.
5.Aging resistance.
6 .Strence soiling.
7. Superior electrial function, metchnical capability, high and low.

Component
Inner armor rods, outer armor rods, thimble, U-shaped hanging loop, extension loop, bolt, nut, etc.
