800MM Preformed Dead End Clamp For Long Span ADSS Fiber Cable
800MM Preformed Dead End Clamp For Long Span ADSS Fiber Cable
800MM Preformed Dead End Clamp For Long Span ADSS Fiber Cable
800MM Preformed Dead End Clamp For Long Span ADSS Fiber Cable
Specifications
Brand Name :
HC , OEM
Model Number :
ANY0940 020 , ANY1220 020 , ANY1460 020
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Aluminum , Aluminum Clad Steel , Galvanized Steel
Type :
Fiber Cable Fittings
Span :
100M-800M
Color Label :
Green , Black , Red , Blue
Holding Strength :
20Kn-100Kn
Length :
800MM-3000MM
Description

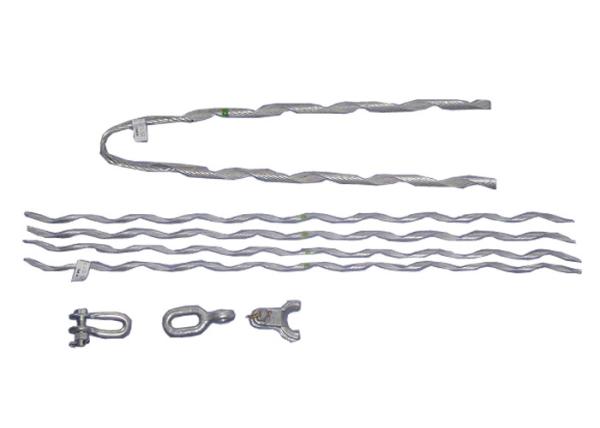

Preformed Dead End Clamp For Long Span ADSS fiber Cable

800MM Preformed Dead End Clamp For Long Span ADSS Fiber Cable

1,Material of preformed rods- aluminum-clad steel rod or galvanization steel rod.

2,For Medium And Long Span

1.1 Specification

Model Available Dia. of Cable(mm)
Holding Strength (KN)		 Available Span(m)


Length of Dead-end Component

(mm)
Length of Structural Reinforcing Rods(mm)

Weight

(kg)

 Universal Scheme
Clevis(Eye Chain Link) Thimble Anchor Shackle
ANY 0940 020 8.6-9.4 20 200/300 800 1100 0.88 ZH-7 TC 04 U-7
ANY 1010 020 9.5-10.1 20 200/300 800 1100 1.02 ZH-7 TC 04 U-7
ANY 1070 020 10.2-10.7 20 200/300 800 1100 1.06 ZH-7 TC 04 U-7
ANY 1140 020 10.8-11.4 20 200/300 800 1100 1.08 ZH-7 TC 04 U-7
ANY 1220 020 11.5-12.2 20 200/300 800 1100 1.35 ZH-7 TC 07 U-7
ANY 1290 020 12.3-12.9 20 200/300 800 1100 1.38 ZH-7 TC 07 U-7
ANY 1370 020 13.0-13.7 20 200/300 800 1100 1.54 ZH-7 TC 07 U-7
ANY 1460 020 13.8-14.6 20 200/300 800 1100 1.57 ZH-7 TC 07 U-7
ANY 1550 020 14.7-15.5 20 200/300 800 1100 1.6 ZH-7 TC 07 U-7
ANY 0940 030 8.6-9.4 30 300/400 1100 1400 1.17 ZH-7 TC 07 U-7
ANY 1010 030 9.5-10.1 30 300/400 1100 1400 1.35 ZH-7 TC 07 U-7
ANY 1070 030 10.2-10.7 30 300/400 1100 1400 1.4 ZH-7 TC 07 U-7
ANY 1140 030 10.8-11.4 30 300/400 1100 1400 1.43 ZH-7 TC 07 U-7
ANY 1220 030 11.5-12.2 30 300/400 1100 1400 1.8 ZH-7 TC 07 U-7
ANY 1290 030 12.3-12.9 30 300/400 1100 1400 1.84 ZH-7 TC 07 U-7
ANY 1370 030 13.0-13.7 30 300/400 1100 1400 2.04 ZH-7 TC 07 U-7
ANY 1460 030 13.8-14.6 30 300/400 1100 1400 2.08 ZH-7 TC 07 U-7
ANY 1550 030 14.7-15.5 30 300/400 1100 1400 2.12 ZH-7 TC 07 U-7
Model Available Dia. of Cable(mm)

Holding Strength

(KN)

 Available Span

Length of Dead-end Component

(mm)

 Length of Structural Reinforcing Rods(mm)

Weight

(kg)

 Universal Scheme
Clevis(Eye Chain Link) Thimble Anchor Shackle
ANY 1220 040 11.5-12.2 40 400/500 1260 1800 2.14 PD-7 TC 07 U-7/2
ANY 1290 040 12.3-12.9 40 400/500 1260 1800 2.19 PD-7 TC 07 U-7/2
ANY 1370 040 13.0-13.7 40 400/500 1260 1800 2.44 PD-7 TC 07 U-7/2
ANY 1460 040 13.8-14.6 40 400/500 1260 1800 2.49 PD-7 TC 07 U-7/2
ANY 1550 040 14.7-15.5 40 400/500 1260 1800 2.54 PD-7 TC 07 U-7/2
ANY 1650 040 15.6-16.5 40 400/500 1260 1800 2.92 PD-7 TC 07 U-7/2
ANY 1370 050 13.0-13.7 50 500/600/700 1400 2000 2.7 PD-7 TC 07 U-7/2
ANY 1460 050 13.8-14.6 50 500/600/700 1400 2000 2.76 PD-7 TC 07 U-7/2
ANY 1550 050 14.7-15.5 50 500/600/700 1400 2000 2.81 PD-7 TC 07 U-7/2
ANY 1650 050 15.6-16.5 50 500/600/700 1400 2000 3.23 PD-7 TC 07 U-7/2
ANY 1370 060 13.0-13.7 60 600/700/800 1560 2200 2.98 PD-7 TC 07 U-7/2
ANY 1460 060 13.8-14.6 60 600/700/800 1560 2200 3.04 PD-7 TC 07 U-7/2
ANY 1550 060 14.7-15.5 60 600/700/800 1560 2200 3.11 PD-7 TC 07 U-7/2
ANY 1650 060 15.6-16.5 60 600/700/800 1560 2200 3.57 PD-7 TC 07 U-7/2
ANY 1460 070 13.8-14.6 70 700/800/900 1600 2400 3.2 PD-7 TC 07 U-7/2
ANY 1550 070 14.7-15.5 70 700/800/900 1600 2400 3.27 PD-7 TC 07 U-7/2
ANY 1650 070 15.6-16.5 70 700/800/900 1600 2400 3.77 PD-7 TC 07 U-7/2
ANY 1750 070 16.6-17.5 70 700/800/900 1600 2400 4.12 PD-7 TC 07 U-7/2
ANY 1870 070 17.6-18.7 70 700/800/900 1600 2400 4.64 PD-7 TC 07 U-7/2
ANY 1550 080 14.7-15.5 80 800/900/1000 2000 3000 4.08 PD-10 TC 10 U-10/2
ANY 1650 080 15.6-16.5 80 800/900/1000 2000 3000 4.71 PD-10 TC 10 U-10/2

The preformed dead end clamp are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.

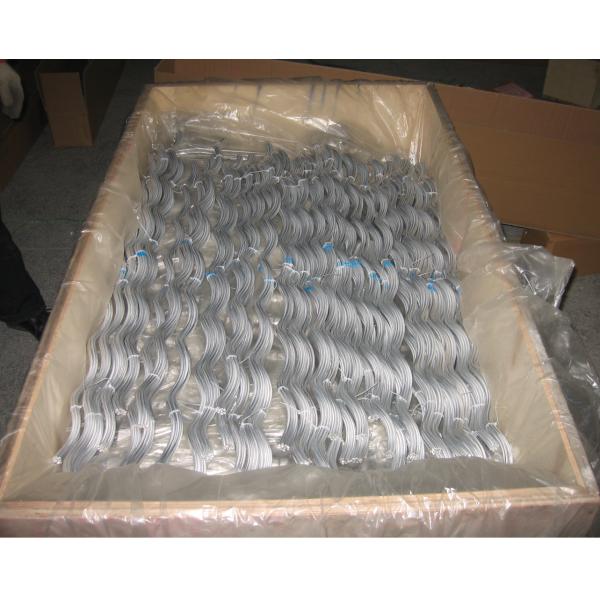

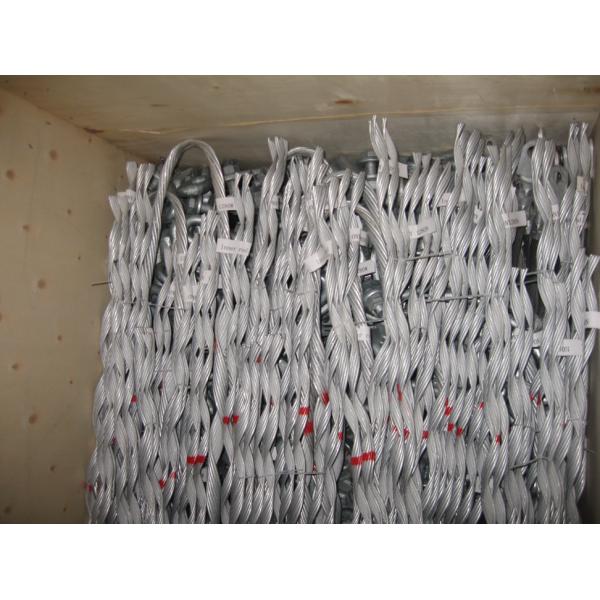

Packing: Wooden case , Carton Etc.

800MM Preformed Dead End Clamp For Long Span ADSS Fiber Cable

800MM Preformed Dead End Clamp For Long Span ADSS Fiber Cable

800MM Preformed Dead End Clamp For Long Span ADSS Fiber Cable
