G657A1 G657A2 FTTH Fiber Optical Drop Cable Single Mode 1 Core YTTX
G657A1 G657A2 FTTH Fiber Optical Drop Cable Single Mode 1 Core YTTX
G657A1 G657A2 FTTH Fiber Optical Drop Cable Single Mode 1 Core YTTX
G657A1 G657A2 FTTH Fiber Optical Drop Cable Single Mode 1 Core YTTX
G657A1 G657A2 FTTH Fiber Optical Drop Cable Single Mode 1 Core YTTX
G657A1 G657A2 FTTH Fiber Optical Drop Cable Single Mode 1 Core YTTX
G657A1 G657A2 FTTH Fiber Optical Drop Cable Single Mode 1 Core YTTX
G657A1 G657A2 FTTH Fiber Optical Drop Cable Single Mode 1 Core YTTX
Specifications
Brand Name :
YUANTONG
Model Number :
FTTH-GJYXCH
Certification :
ROSH ,TLC, CCC, ISO
Place of Origin :
China
MOQ :
20KM
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
500km per week
Delivery Time :
7 days
Packaging Details :
Wooden Drum
Model NO :
GJYXCH
Type :
Single-mode Fiber
Connection Structure :
SC
Material Shape :
Flat Wire
Allowed Lateral Pressure :
>1000(N/100mm)
Allowed Tensile Strength :
1000N<10000N
Sheath Material :
LSZH
Core :
Multicore
Specification :
2.0*5.0mm
Transport Package :
Plywood Drun and Carton
Description
YTTX 1 Core G657A1 G657A2 Single Mode FTTH Fiber Optic/Optical Drop Cable
Product Description

Description

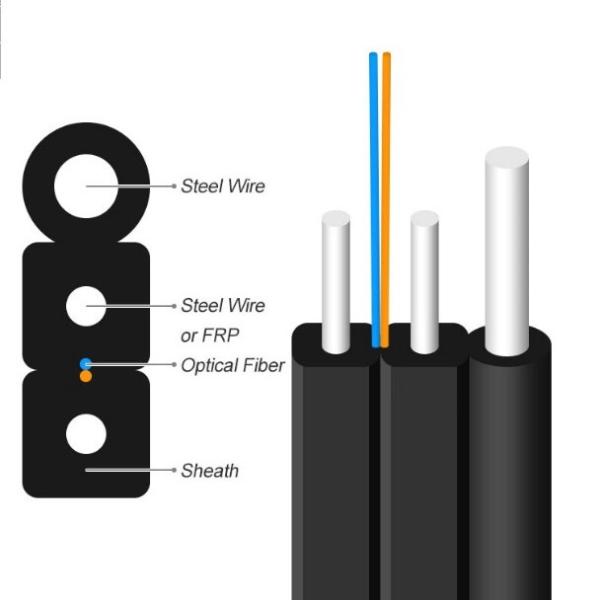

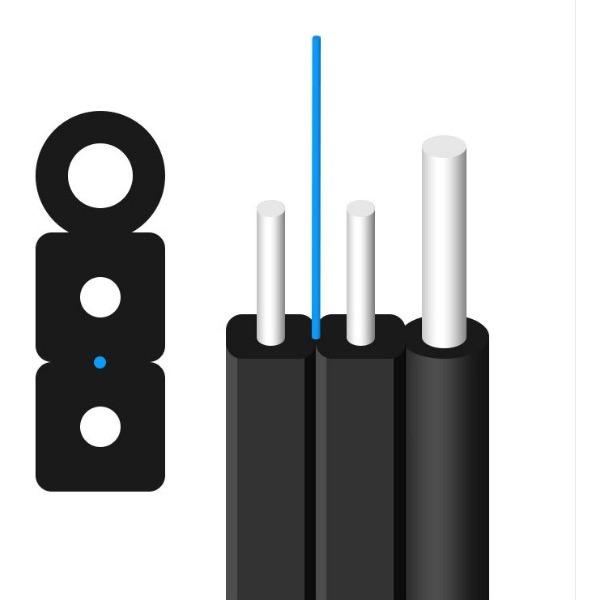

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath,There is a recognition guide at the bottom of the cable.

Features

· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Single steel wire or messengers as the additional strength member ensures good performance of tensile strength;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
Requirement for Order
  • (1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
  • (2) Fiber brand: YOFC, Corning, Fiberhome,OFS etc.
  • (3) Jacket material: PE,LSZH ( can be required).
  • (4) The fiber and tube color: according to stranded color, can be required.
  • (5) Length of cable: generally is 2KM/drum, can be required.
  • (6) Other requirement: can be negotiated.
Fiber optical Characteristic (after cable)
Fiber type Attenuation Bandwidth Effective modal bandwidth 10 Gb/s Link Length
Conditions 1310/1550nm 850/1300nm 850/ 850nm 850nm
Typical Maximum Typical Maximum 1300nm
Unit dB/km dB/km dB/km dB/km MHz.km MHz.km m
G652D 0.5/0.4 0.6/0.5 / / / / /
G657A1 0.5/0.4 0.6/0.5 / / / / /
G657A2 0.4/0.3 0.5/0.4 / / / / /
G657B3 0.5/0.4 0.6/0.5 / / / / /
62.5/125 / / 3.5/1.0 3.5/1.5 ≥160/500 / /
50/125/ / / 3.0/1.0 3.5/1.5 ≥200/500 / /
OM1
50/125/ / / 3.0/1.0 3.5/1.5 ≥500/500 / /
OM2
OM3-150 / / 3.0/1.0 3.5/1.5 ≥700/500 ≥950 150
OM3-300 / / 2.5/0.8 3.0/1.0 ≥1500/500 ≥2000 300
OM4-550 / / 2.5/0.8 3.0/1.0 ≥3500/500 ≥4700 550

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
