PE Outer Sheath Frls And Fr Cable , GYTZA33 Outdoor Cable Tube 48 Core
PE Outer Sheath Frls And Fr Cable , GYTZA33 Outdoor Cable Tube 48 Core
PE Outer Sheath Frls And Fr Cable , GYTZA33 Outdoor Cable Tube 48 Core
PE Outer Sheath Frls And Fr Cable , GYTZA33 Outdoor Cable Tube 48 Core
PE Outer Sheath Frls And Fr Cable , GYTZA33 Outdoor Cable Tube 48 Core
PE Outer Sheath Frls And Fr Cable , GYTZA33 Outdoor Cable Tube 48 Core
Specifications
Brand Name :
YUANTONG
Model Number :
GYTZA33 48 Core
Certification :
ROSH ,TLC, CCC, ISO
Place of Origin :
China
MOQ :
20KM
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
500km per week
Delivery Time :
7 days
Packaging Details :
Wooden Drum
Product Name :
48 Core Single Steel Wire PE Outer Sheath Flame-Retardant Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTZA33
Fiber Count :
48 Core
Fiber Type :
G652D
Cable Sheath :
PE sheath, PE outer sheath
Cable Color :
Black
Cable Use :
Outdoor
Loose tube :
PBT
Description

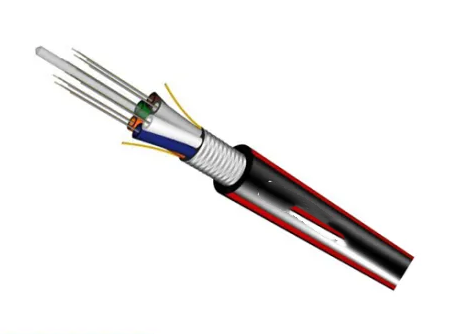

48 Core Single Steel Wire PE Outer Sheath Flame-Retardant Layer Filling Loose Tube Outdoor Fiber Optic Cable GYTZA33

DESCRIPTION:

The product is to insert optical fiber into a loose tube made of high modulus material, filled with water-blocking compounds. A layer of polyethylene should be extruded outside the metal reinforced core. The loose tube and filling rope around the center strengthen the core winch to form a compact and round cable core. The gap in the cable core is filled with water blocking fillings. Extrusion of flame-retardant protective cover into cable after coated aluminum strip.


FEATURES:
Low loss and dispersion of optical fiber transmission;
The loose tube is filled with special oil ointment, which provides the key protection to the optical fiber;
Specially designed compact fiber optic cable structure effectively prevents casing retraction;

APPLICATIONS:
Into the Bureau, Tunnel, Aerial

Model Description Applications
GYTZA33 GYTZA33 outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Single steel wire PE outer sheath, Flame-retardant Direct burial&Underwater laying

Tensile Strength (N) Crush Resistance (N/100mm) Bned Radius
(mm)		 Working Temperature(℃) Max. attenuation (dB/km)
Long term short term Long term short term Static(D) Dynamic (D) Min.TA Max.TB 1310μm 1550μm
4000 10000 3000 5000 12.5 D 25 D -40℃ +60℃ ≤0.36 ≤0.22

Category Description Specifications
G.652D
Optical Specifications Attenuation @1310nm ≤0.36dB/km
@1550nm ≤0.22dB/km
Attenuation discontinuity ≤0.05 dB
Attenuation vs. Wavelength @1285~1330nm ≤0.05 dB/km
@1525~1575nm ≤0.05 dB/km
Zero Dispersion Wavelength 1300~1324nm
Zero Dispersion Slope ≤0.092ps/(nm2.km)
Dispersion @1310nm ≤3.5 ps/nm.km
@1550nm ≤18 ps/nm.km
Polarization Mode Dispersion(PMD) ≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc) ≤1260nm
Effective Group Index of Refraction @1310nm 1.4675
@1550nm 1.4681
Macro bend loss (30mm radius,100turns) 1625nm ≤0.1 dB
Geometric
Specifications		 Mode Field Diameter @1310nm 9.2±0.6μm
@1550nm 10.4±0.8μm
Cladding Diameter 125±1μm
Cladding Non-Circularity ≤1.0%
Coating Diameter 245±7μm
Coating/Cladding Concentricity Error ≤8μm
Core/Cladding Concentricity Error ≤0.8μm
Mechanical
Specifications		 Proof Test level ≥1.0%
Fiber Curl Radius ≥4.0m
Peak Coating Strip Force 1.3~8.9N

FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
