GYTZY53 48 Pair Fiber Optic Cable , PBT Flame Retardant Wire
GYTZY53 48 Pair Fiber Optic Cable , PBT Flame Retardant Wire
GYTZY53 48 Pair Fiber Optic Cable , PBT Flame Retardant Wire
GYTZY53 48 Pair Fiber Optic Cable , PBT Flame Retardant Wire
GYTZY53 48 Pair Fiber Optic Cable , PBT Flame Retardant Wire
GYTZY53 48 Pair Fiber Optic Cable , PBT Flame Retardant Wire
Specifications
Brand Name :
YUANTONG
Model Number :
GYTZY53 48 Core
Certification :
ROSH ,TLC, CCC, ISO
Place of Origin :
China
MOQ :
20KM
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
500km per week
Delivery Time :
7 days
Packaging Details :
Wooden Drum
Product Name :
48 Core Corrugated Steel Tape Armored PE Outer Sheath Flame-Retardant Fiber Optic Cable GYTZY53
Fiber Count :
48 Core
Fiber Type :
G652D
Cable Sheath :
PE sheath
Cable Color :
Black
Strength Member :
Metallic strength member
Cable Use :
Direct burial
Loose tube :
PBT
Description

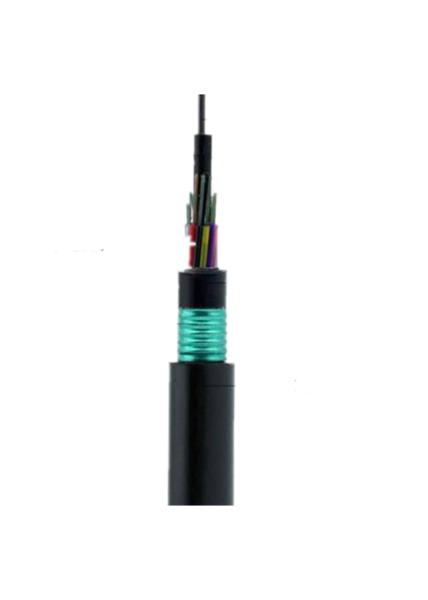

48 Core Corrugated Steel Tape Armored PE Outer Sheath Flame-Retardant Fiber Optic Cable GYTZY53

Description:

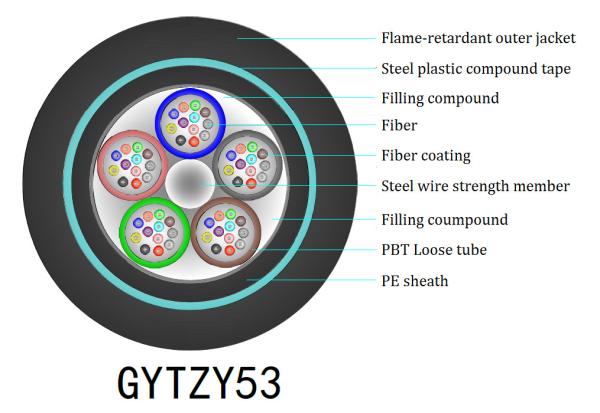

The fibers,250μm‚are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water−resistant filling compound.A Steel wire,sometimes sheathed with polyethylene ‹PE› for cable with high fiber count‚locates in the center of core as a non–metallic strength member.The tubes ‹and fillers› are stranded around the strength member into a compact and circular core.The PSP is longitudinally applied over the cable core‚which is filled with the filling compound to product it from water ingress.The cable is completed with a flame–retardant outer sheath.

Characteristics:
1. Good mechnical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Special sheath material ensure excellent flame–retardant performance
5. Crush resistance and flexibility
6. Special designed compact structure is good at preventing loose tube from shrinking

ModelDescriptionApplications
GYTZY53GYTZY53 48 Core outdoor fiber optic cable,Metallic strength member,layer filling loose tube,PE sheath,Corrugated steel tape armored,PE outer sheath,Flame-retardantPipeline laying&Direct burial

Tensile Strength (N)Crush Resistance (N/100mm)Bned Radius
(mm)		Working Temperature(℃)Max. attenuation (dB/km)
Long termshort termLong termshort termStatic(D)Dynamic (D)Min.TAMax.TB1310μm1550μm
100030001000300012.5 D25 D-40℃+60℃≤0.36≤0.22

CategoryDescriptionSpecifications
G.652D
Optical SpecificationsAttenuation@1310nm≤0.36dB/km
@1550nm≤0.22dB/km
Attenuation discontinuity≤0.05 dB
Attenuation vs. Wavelength@1285~1330nm≤0.05 dB/km
@1525~1575nm≤0.05 dB/km
Zero Dispersion Wavelength1300~1324nm
Zero Dispersion Slope≤0.092ps/(nm2.km)
Dispersion@1310nm≤3.5 ps/nm.km
@1550nm≤18 ps/nm.km
Polarization Mode Dispersion(PMD)≤0.2ps/km1/2
Cable Cutoff Wavelength(λcc)≤1260nm
Effective Group Index of Refraction@1310nm1.4675
@1550nm1.4681
Macro bend loss (30mm radius,100turns) 1625nm≤0.1 dB
Geometric
Specifications		Mode Field Diameter@1310nm9.2±0.6μm
@1550nm10.4±0.8μm
Cladding Diameter125±1μm
Cladding Non-Circularity≤1.0%
Coating Diameter245±7μm
Coating/Cladding Concentricity Error≤8μm
Core/Cladding Concentricity Error≤0.8μm
Mechanical
Specifications		Proof Test level≥1.0%
Fiber Curl Radius≥4.0m
Peak Coating Strip Force1.3~8.9N


FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.

2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc

3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.

6. What is your delivery time?
Usually within 2-3 working days

7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?
T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.

11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
