Specifications
Brand Name :
ZXOFC
Model Number :
ZX-1309-24A
Certification :
ISO9001
Place of Origin :
ShenZhen,China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 Piece/Pieces per Month network termination box
Delivery Time :
3-7 working days
Packaging Details :
Paper box packing
No. of Fiber: :
24
Name: :
fiber distribution box
Material: :
pc abs
Application: :
FTTH FTTB FTTX Network, wall and pole mounted
Relative humidity: :
≤85%(+30℃)
Waterproof level :
IP65
Dimension: :
317*237*101MM
Packing: :
10 per carton
Description

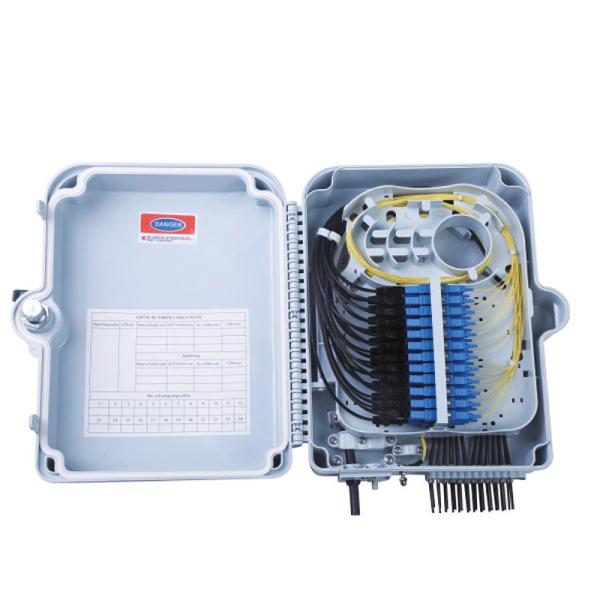

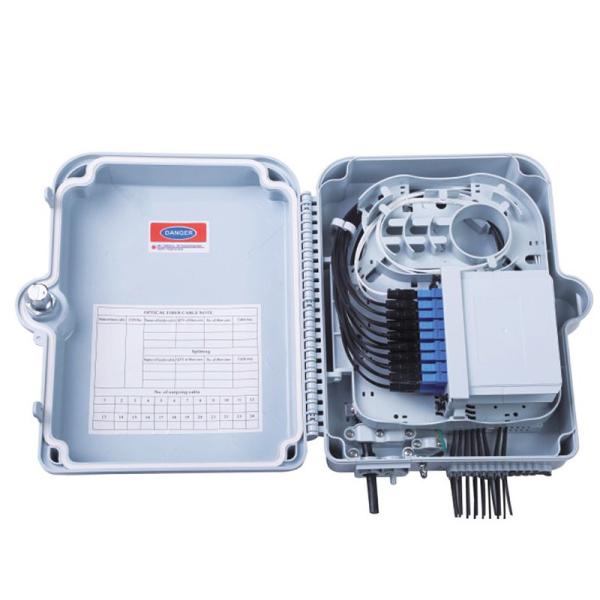

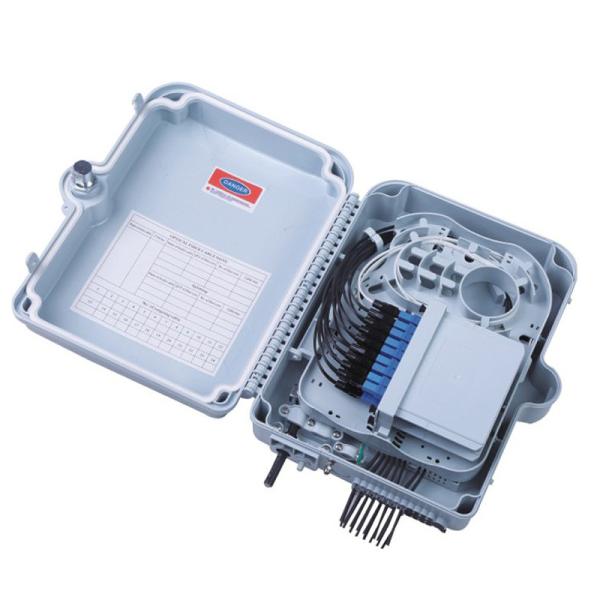

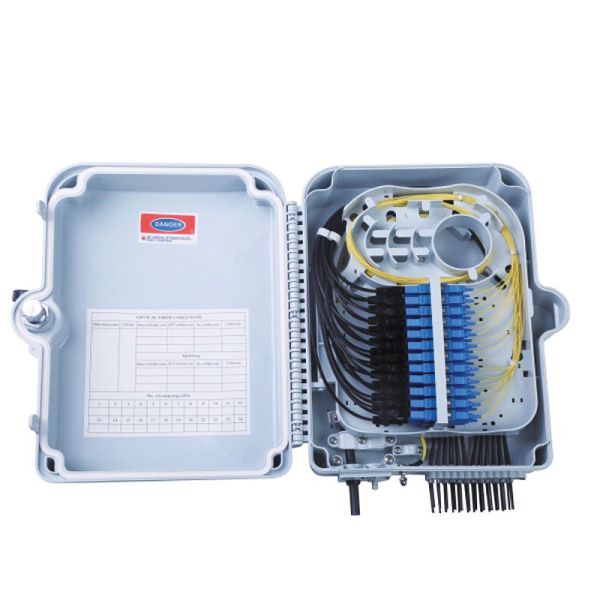

24 Cores ODF FTTH End User Network Termination Fiber Tool Box

Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber

splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Product Name
24 core fiber optic distribution box(termination box)
Shape
Total enclosed structure, be in nice shape
size
317mm(H)*237mm(W)*101mm(D)
Weight
1.5KG
Material
PC+ABS
Material characteristic
1.wet-proof, water-proof, dust-proof, protection level up to IP65
2.Construction-lightweight plastic offers strength
3.Resistance to chemical and U.V attack
4.Wall mounting or pole mounting.

Specification
ZX-1309-24A
ZX-1310-16C
ZX
-1310-16D
Material
PC+ABS
Entry ports

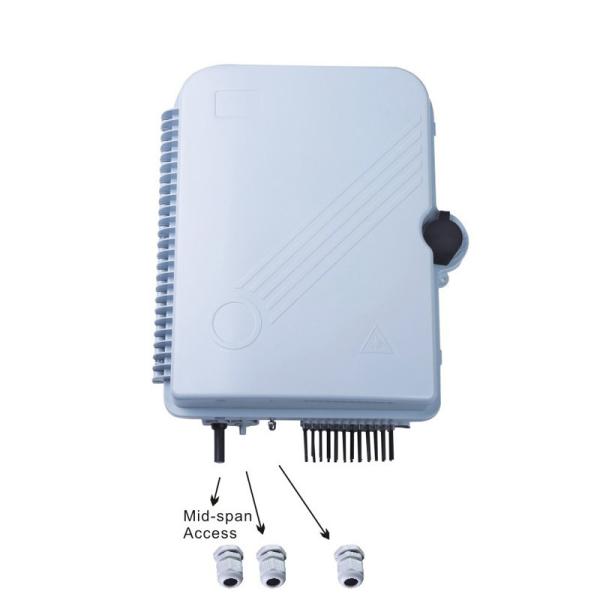

1 Midspan+1 Cable gland( total 3 ports)
Outlet ports
24
24
16
Cores
24
16
16
Color
Grey black or white(optional)
Ip degree
65
65
65
Adapter installation
24 (SC LC )
/
16 (SC LC )
PLC installation
support(1x8 or 1x16)
support(1x8 or 1x16)
support(1x8 or 1x16)
PLC type
mini type
insert type
insert type/mini type (alternative)
inlet cable dimension
midspan(12.5mm)/cable gland(12mm)
outlet cable
2x3 drop cable & 2.0/3.0 round cable
Installation method
wall mounting or pole mounting
Dimension
317x237x101mm
No. of splice tray
/

Accessories

1. Wall mounting kits : 4 pieces

2. Screws : 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 24 pieces
5. Key :1 piece

6. Protection tube: 1 piece

7. drop cable sealing parts: 24 pieces

8. pole mounting accessories: 1 set(optional)

Features
1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.

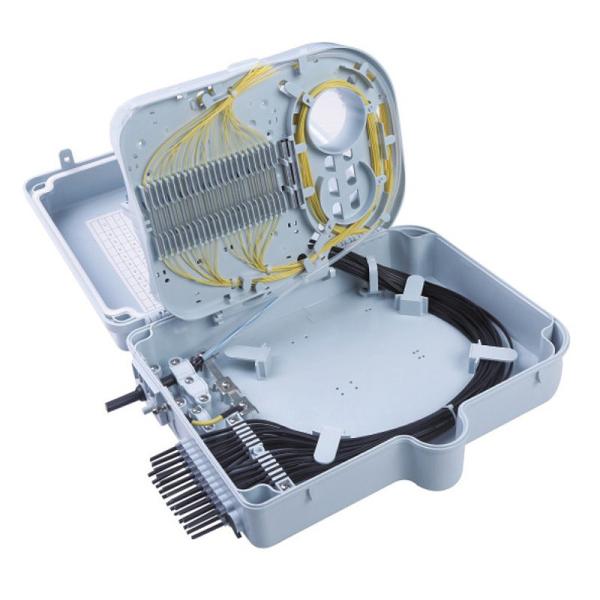

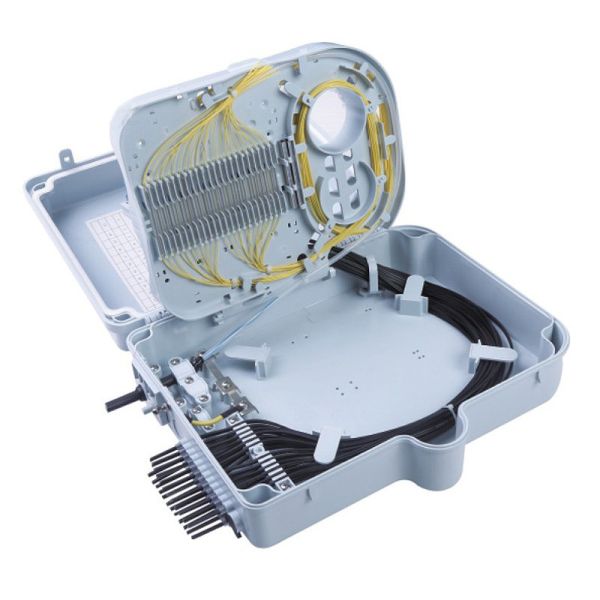

3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Application
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks

Specifications

Environmental Requirement
Main Technical Data
Capacity
Working temperature
-40℃~+75℃
Insertion loss
≤0.2dB
1*16 1*8PLC splitter, 24 SC/LC adaptors
Relative humidity
≤85℃(+30℃)
UPC return loss
≥50dB
Atmospheric pressure
70KPa~106KPa
APC return loss
≥60dB

IP65 PC ABS 24cores ODF FTTH Network Termination BoxIP65 PC ABS 24cores ODF FTTH Network Termination BoxIP65 PC ABS 24cores ODF FTTH Network Termination Box

Package

IP65 PC ABS 24cores ODF FTTH Network Termination Box

FAQ

Q1. Can I have a sample order for this product?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
