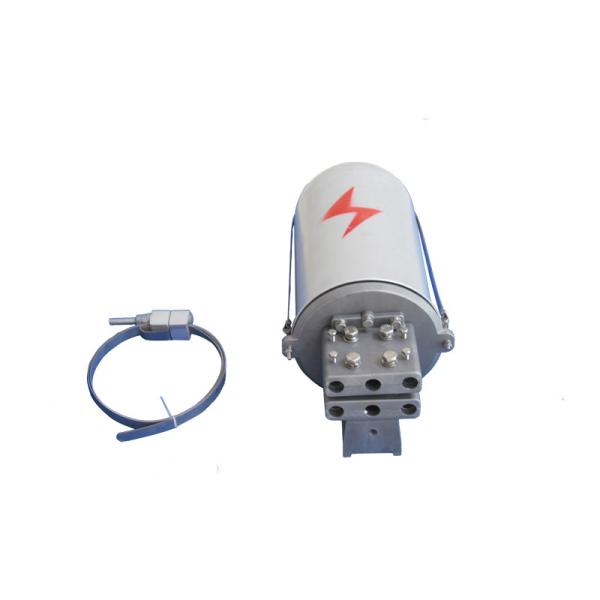

144core Dome Metal Enclosure ADSS OPGW Cable Joint Box
144core Dome Metal Enclosure ADSS OPGW Cable Joint Box
144core Dome Metal Enclosure ADSS OPGW Cable Joint Box
144core Dome Metal Enclosure ADSS OPGW Cable Joint Box
144core Dome Metal Enclosure ADSS OPGW Cable Joint Box
144core Dome Metal Enclosure ADSS OPGW Cable Joint Box
Specifications
Brand Name :
ZXOFC
Model Number :
ADSS OPGW Cable Joint Box
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
5 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
100000 pcs per month
Delivery Time :
1-2 weeks
Packaging Details :
Aerial Waterproof Underground Horizontal Fiber Optical OPGW Joint Box According to the quantity, we will make it in perfect package and we will try to satify your packing and shipping requirement. All the key parts are protecting what you want: 1. Accordin
Install Location: :
tower/pole
Weight: :
Approax.6.7 KG
Application: :
ADSS,OPGW and optical cable
Intallation: :
Easy to install
Maximum capacity: :
ty: 144core
Material: :
Alimunium alloy/PC (Polycarbonate)
Ports: :
2-6 of Fiber Optic Closure
Sizes: :
Can be Customized
Description

Aerial Fiber Optic Cable Splice Dome Metal Enclosure ADSS OPGW Cable Joint Box

Description

OPGW Fiber Optic Joint Box Horizontal (inline) Fiber Optical Metal Joint Closure Box (FOSC) is used for splicing of ADSS and

OPGW fiber cable.

1. Metal joint box is made up of aluminum alloy, especially suitable for the protection of fiber cable joint under the high voltage electric field.

2. Metal joint box bears the excellence of high mechanical strength, good airproof performance, outstanding corrosion resistance

and long service life. It can be used more than 25 years.

3. There are two models of metal joint boxes, one is to be mounted on poles and the other is to be mounted on towers.

144core Dome Metal Enclosure ADSS OPGW Cable Joint Box

ADSS OPGW Outdoor Aerial Fiber Optic Cable Dome Metal Splice Joint Box For Accessories Hardware
Specification:
(1) optic fiber joint box is designed for splicing ADSS, OPGW cables and the normal cables, including two to four sleeves for input and output.
(2) Ensure the transmission characteristics of optical fiber.
(3) A double seal design, convenient installation, reliable.
(4) good waterproof property.

Order Tips:
1.Please check the core number of the cable.
2.Please check the number of input ports, output ports and the corresponding cable diameter.
3.Cable storage for pole and tower. If you need cable storage for pole, please provide the pole diameter.

Main Technical Parameters

Radius of optical cable ≥47mm
Added loss of optical cable wheel ≤0.01DB
Applicable temperature scope -40~+80℃
Physical dimensions (mm) 470(H) x 200(Φ)
Length of the wheeled optical cable ≥1.5m
Max.capacity of optical cable ≤144 piece
Anti side pressure ≥2000N
Weight 6.2kg

Application

1.Aerial,

2.Direct-buried/Wall-mounting/Duct-mounting

Aluminium alloy joint box
model suitable range weight material Dimension remarks
GJS 05 006-H 2input 3output,6 core fiber optic 6.5kg aluminium alloy 500*200*180mm 1.there have two kinds,
one used pole ,the other used tower.
2. be also used to 3input 2output
joint box
GJS 05 012-H 2input 3output,12 core fiber optic 6.5kg aluminium alloy 500*200*180mm
GJS 05 016-H 2input 3output,16 core fiber optic 6.5kg aluminium alloy 500*200*180mm
GJS 05 024-H 2input 3output,24 core fiber optic 6.5kg aluminium alloy 500*200*180mm
GJS 05 036-H 2input 3output,36core fiber optic 6.5kg aluminium alloy 500*200*180mm
GJS 05 048-H 2input 3output,48 core fiber optic 6.5kg aluminium alloy 500*200*180mm
GJS 05 072-H 2input 3output,72 core fiber optic 6.6kg aluminium alloy 500*200*180mm
GJS 05 096-H 2input 3output,96core fiber optic 6.6kg aluminium alloy 500*200*180mm
GJS 05 144-H 2input 3output,144 core fiber optic 6.6kg aluminium alloy 500*200*180mm
GJS 03 192-H 1input 2output,192core fiber optic 6.6kg aluminium alloy 500*200*180mm
notes:1. these are some common type,you can choose from these type.
2.If you have any other questions,please do not hesitate to contact me!
