Steel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power Line
Steel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power Line
Steel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power Line
Steel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power Line
Steel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power Line
Steel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power Line
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-OPGW
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
5KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Fiber Count :
2-144 core
Strength member :
Steel wire
Application :
Aerial electricity line
Packing :
Iron wooden drum
Length :
3-6km per drum
Fiber Type :
G652D or G655
Description

Optical Fiber Ground Wire ADSS/OPGW Fiber Optical Cable for 220V Power line

Description

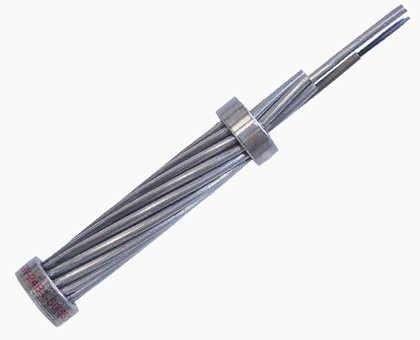

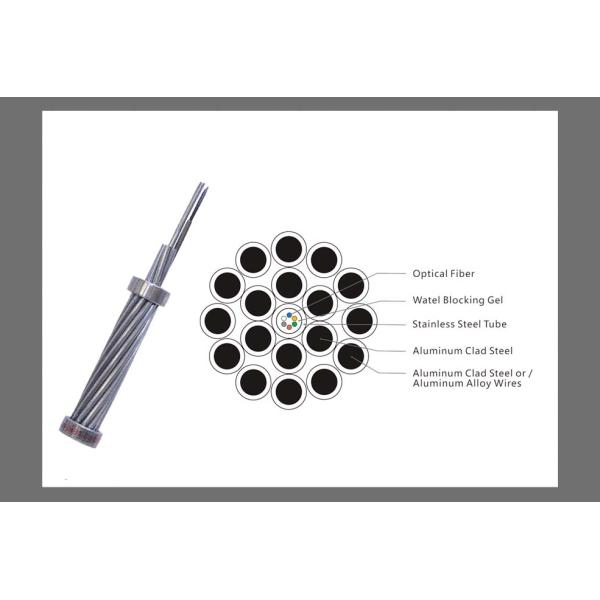

The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.

Cable parameters

Cable Parameters
Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 260µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black

Technical Parameter
Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N/100mm) Bending Radius Static/Dynamic (mm)
2~12 10.6 124 1000/3000 1000/3000 10D/20D
14~24 12.0 147 1000/3000 1000/3000 10D/20D

Steel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power LineSteel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power LineSteel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power LineSteel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power LineSteel ADSS OPGW Fiber Cable Optical Ground Wire PBT Material For 220V Power Line
