OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable
OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable
OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable
OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable
OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable
OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable
OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable
OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-OPGW
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
5KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Model Number: :
OPGW-24B1
Product name: :
opgw fiber optic cable
Fiber count: :
2-144 Cores
Fiber Type: :
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
Packing: :
Iron wooden drum
Length: :
3/4/5KM per drum
Description

Optical Fiber 12 24 48 72 96 144 Core 500kv 24 Fibre (Dwsm) Optic Cable With Stranded OPGW Cable

Description

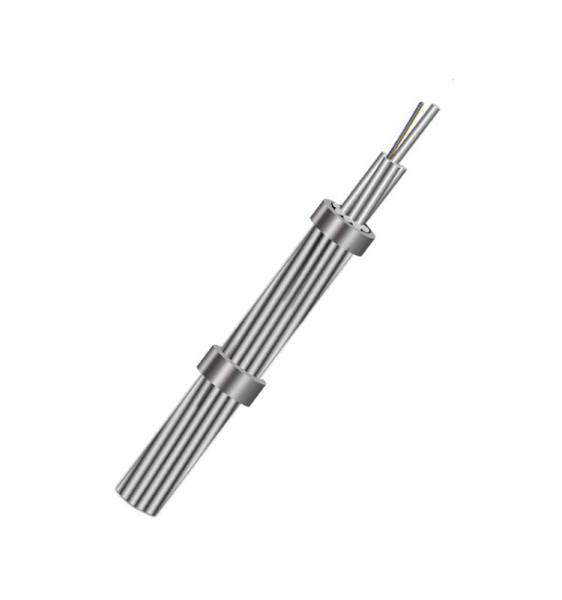

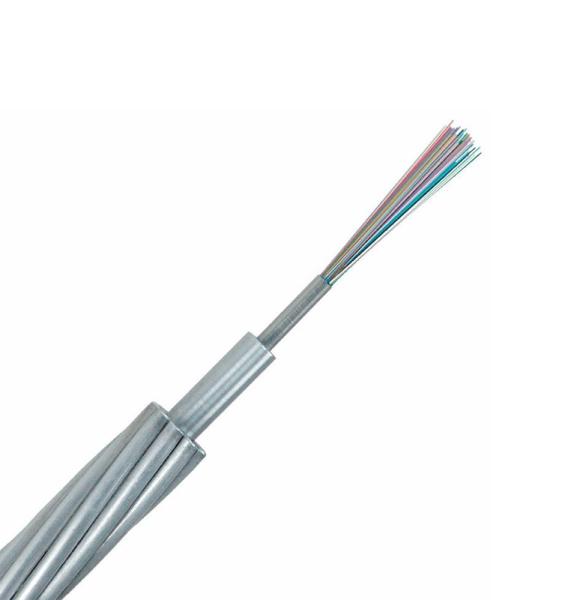

The central Al-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy

wires. Al-covered Stainless Steel tube design increases the cross-section of AL, to reach a better fault current and lightning resistance performance.

Apply to the transmission line which requires small diameter and large fault current.

Features:


1. Up to 144 fibers

2. Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.

3. Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers

free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.

4. Optical fibers are protected by stainless steel tubes.

5. Excellent security, good bullet resist performance.

6. ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.

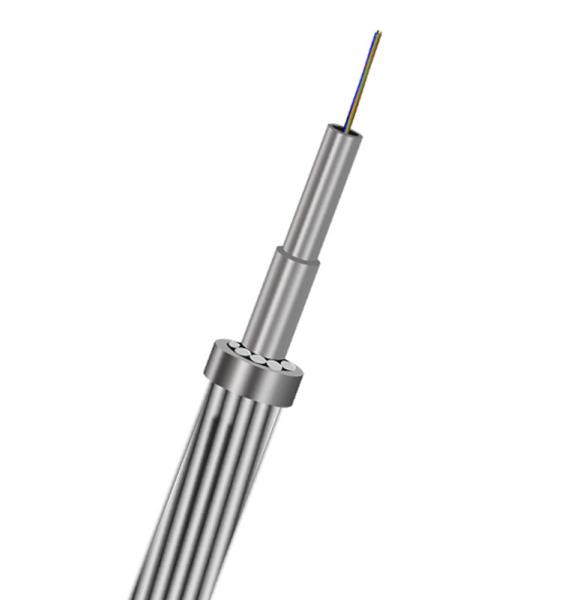

Typical Design for Double Layer

OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable

OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable

Technical Parameter:

Typical design for Double Layer
Specification Fiber Count Diameter(mm) Weight(kg/km) RTS(KN) Short Circit(KA2s)
OPGW-89[55.4;62.9] 24 12.6 381 55.4 62.9
OPGW-110[90.0;86.9] 24 14 600 90 86.9
OPGW-104[64.6;85.9] 28 13.6 441 64.6 85.6
OPGW-127[79.0;129.5] 36 15 537 79 129.5
OPGW-137[85.0;148.5] 36 15.6 575 85 148.5
OPGW-145[98.6;162.3] 48 16 719 98.6 162.3
Typical design for Three Layer
OPGW-232[343.0;191.4] 28 20.15 1696 343 191.4
OPGW-254[116.5;554.6] 36 21 889 116.5 554.6
OPGW-347[366.9;687.7] 48 24.7 2157 366.9 687.7
OPGW-282[358.7;372.1] 96 22.5 1938 358.7 372.1

OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic CableOPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable

OPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic CableOPGW-24B1 144 Core 500kv 24 Fibre Dwsm Optic Cable

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)
