Self Supporting Wire FTTH Drop Cable LSZH 1 2 4 Core With ISO CE ROHS Certification
Self Supporting Wire FTTH Drop Cable LSZH 1 2 4 Core With ISO CE ROHS Certification
Self Supporting Wire FTTH Drop Cable LSZH 1 2 4 Core With ISO CE ROHS Certification
Self Supporting Wire FTTH Drop Cable LSZH 1 2 4 Core With ISO CE ROHS Certification
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GJYXCH
Certification :
ISO CE ROHS
Place of Origin :
ShenZhen,China
MOQ :
10KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Application :
Outdoor, Building, access network,
Fiber Model :
g652d,g657
Jacket :
LSZH
Color :
Black or white
No. of cable :
1,2,4 Core
Description

Self Supporting Wire LSZH 1 2 4 Core Ftth Fiber Optic Drop Ftth Cable 2 Core Fibra Optica Cable

Description

Fiber:


250µm colorfiber

Fiberglass reinforced plastic (FRP) or Steel Wire.


Self-supported Member:


Steel Wire


Outer Jacket:


UV and Flame resistant LSZH

Features


Compact, soft, flexible, easyto install.

Applications

Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.

Optical Characteristics
Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7.5

Structure and Technical Specifications

Fiber Count

Cable Diameter

(mm)

Cable Weight

(kg/km)


Tensile Strength

(N/100mm)

Crush Resistance

(N/100mm)
Short Term Long Term Short Term Long Term
1-4 5.2*2.0 18 600 300 2200 1000
6-12 3.0*9.0 27 1200 600 1100 500

Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for

more information.

2.The cable core use the colored coating fiber of 250μm.

3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used

We produce and test cable comply with following standard

Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14

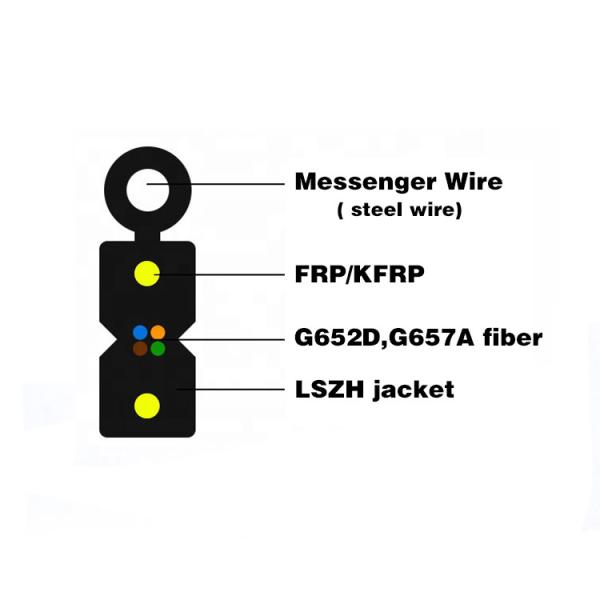

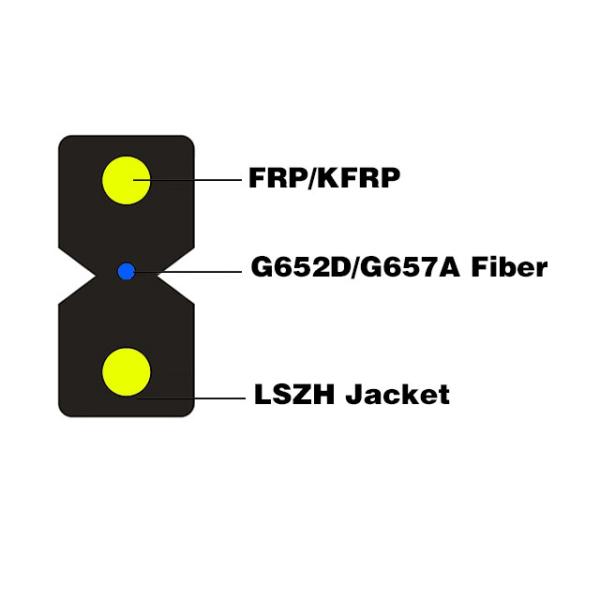

Cable structure

Self Supporting Wire FTTH Drop Cable LSZH 1 2 4 Core With ISO CE ROHS Certification

Self Supporting Wire FTTH Drop Cable LSZH 1 2 4 Core With ISO CE ROHS Certification

Package and Shipping

Packaging Wooden drum, 2000m to 6000m/drum or as you required
Shipping methods. By sea or by air

Sheath mark applied at

1-meter intervals

 a. Supplier: ZXOFC or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture
d. Length marking in meters

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
