OM3 OM4 LSZH 4-144core FTTH Optical Riser Cable
OM3 OM4 LSZH 4-144core FTTH Optical Riser Cable
OM3 OM4 LSZH 4-144core FTTH Optical Riser Cable
OM3 OM4 LSZH 4-144core FTTH Optical Riser Cable
Specifications
Brand Name :
ZXOFC
Model Number :
GJRFH
Certification :
CE ISO9001
Place of Origin :
ShenZhen,China
MOQ :
2km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 KM per month
Delivery Time :
5-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652,G657,OM1,OM2,OM3,OM4
Fiber count :
4-144 Core
Sheath Material :
LSZH
Operation temperature :
-20℃~+60℃
Strength member :
FRP
Description

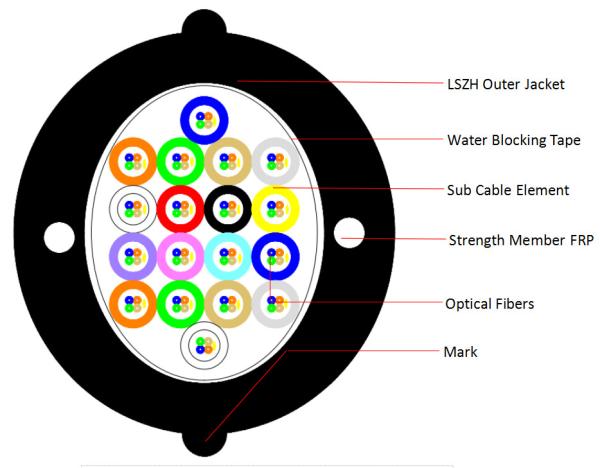

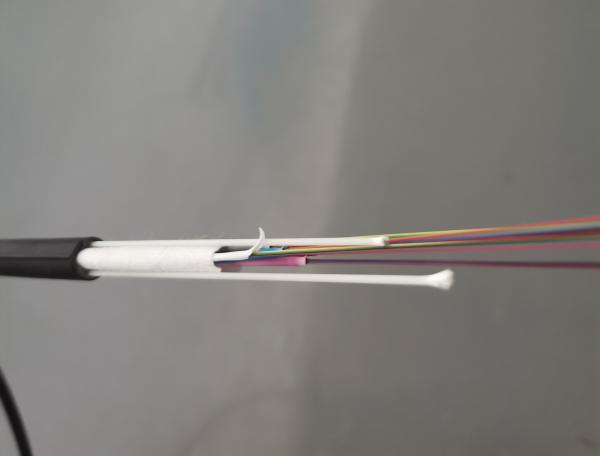

4-144 Core FTTH Drop Optical Fiber Riser Cable FTTH Removeable Riser Cable

Description
Tight buffered fiber without jelly compound
Both sides FRP strength members
LSZH outer sheath available
Round construction for minmum wind drag and ice buildup increases span length capability
Prominent slots opening side location
The termination can be made standard connector
Application
Suitable for aerial,pipeline,bracket laying,
Suitable for indoor and outdoor cable
FRP strength members reduce weight for longer span lengths
Lightweight,all dielectric self-supporting(ADSS) construction is ideal for use near electrical power lines
Quality Assurance System
Optical testing follows ITU, IEC and EIA/TIA-FOTP
Quality approved by UL
Mechanical & Environmental characteristics

ITEM
CHARACTERISTICS
Operation temperature
-20℃~+60℃
Jacket Material
LSZH
Part
Number
Fiber
Count
Outside
Diameter
(mm)
T.B
Diameter
(mm)
Cable
Weight
(kg/km)
Tensile Load
Crush Load
Bend Radius
S
(N)
L
(N)
S
(N)
L
(N)
S
(mm)
L
(mm)
KT04DIFXXL-WF12
6.5
1.4
50.0
500
200
400
200
20D
10D
KT08DIFXXL-WF24
6.5
1.4
55.0
500
200
400
200
20D
10D
KT12DIFXXL-WF48
8.5
1.4
65.0
500
200
400
200
20D
10D
KT24DIFXXL-WF72
10.5
1.4
105.0
500
200
400
200
20D
10D
KT48DIFXXL-WF144
13.5
1.4
140.0
500
200
400
200
20D
10D


Note:KT denotes company logo; XX denotes fiber P/N code(52D: G.652D; 57A: G.657A;50: 50/125um;09: G.652) ;
04 denotes fiber count 4 fibers ; L denotes LSZH WH denotes the white outer sheath;
Tight Buffer colour Code
1~12 fibers: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua
13~24 fibers: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua
-----with short black stripes
25~36 fibers: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua
-----with short red stripes
37~48 fibers: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua
-----with short green stripes
Note:
1 The colour identification of the buffer layer complies with the standard colour identification set in GB13993.3-2001 Standard
2 S: short term; L: long term; T.B: tight buffer
3 Crush load: N/100mm; D: cable diameter
