Retractable Reel 8 Channel TPU Military Tactical Patch Cord
Retractable Reel 8 Channel TPU Military Tactical Patch Cord
Retractable Reel 8 Channel TPU Military Tactical Patch Cord
Retractable Reel 8 Channel TPU Military Tactical Patch Cord
Retractable Reel 8 Channel TPU Military Tactical Patch Cord
Retractable Reel 8 Channel TPU Military Tactical Patch Cord
Specifications
Brand Name :
ZXOFC
Model Number :
GJFJU
Certification :
ISO9001,CE
Place of Origin :
ShenZhen,China
MOQ :
10 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 PCS per month
Delivery Time :
5-10 working days
Packaging Details :
Paper box with Tray
Model Number: :
Waterproof Connector Optic Fiber Patch Cord
Cable Type: :
MultiMode Armored without Braid
Cable Jacket Materials :
TPU
Connector Type: :
Plug and Receptable ( Fiber and Power)
Cable Outer Diameter: :
4.8mm or 7.0mm
Insertion Loss: :
≤0.3dB
length: :
100mtr, 300mtr or customize
Application: :
Broadcasting Trassmission
Cable Color: :
Black
Description

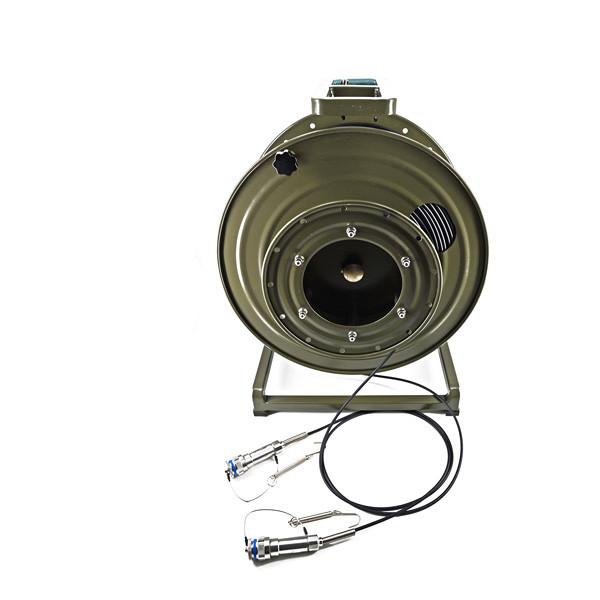

8 Channel TPU Military Tactical Patch Cord Cable With The Retractable Cable Reel

Description

Fiber Optic Patch Cords are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the

diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination

of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical

performance.

Features

Low Insertion Loss, High Reliability

Easy to Install with Removable Parts

Water/Dust Proof,Anti Corrosion

High Tensile Load Capability

Excellent Termination Strength

Application


◆Fiber Optic Data Transmission System

◆Military Tactcial Field,

◆Shipboard,aerospace,

◆Automotive Commercial

Specification

Connector End A AIFMT-ST-16715 Connector, Receptacle and Plug Style
End B LC,or SC,FC,ST......
Cable Diameter(mm) 4.0mm/ 7.0mm/ 8.0mm
Material of jacket TPU
Fiber Core 4,8,12 or specified
Mode Singlemode Multimode
Operating Wavelength(nm) 1310/1550 850/1310
Polishment UPC APC UPC
Insertion Loss(Max.dB) 1.5 1.0
Return Loss(Min.dB) 50 35
Mechanical Features Plug ≤1000N(main cable)
Socket ≤100N(Branch cables)
Grade IP68
Mating time 500 Min
Durability(Max.dB) 0.2
Reaptability(Max.dB) 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85

Retractable Reel 8 Channel TPU Military Tactical Patch Cord

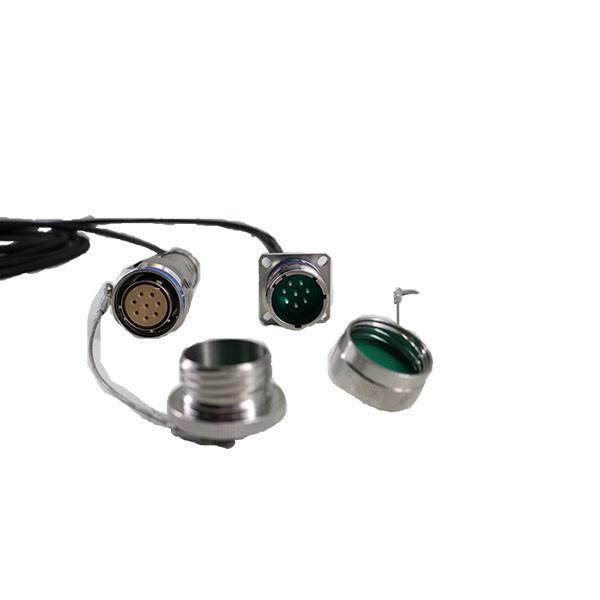

Product photos

Retractable Reel 8 Channel TPU Military Tactical Patch Cord

Quality Control

1.Connector attenuation comply with “Grade B” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,<0.25dB Max for >97% of samples,Return Loss >55dB)

2.All products factoy tested

3,Geometrical Characteristics comply with IEC 61755-3-1

4,All materials comply with IEC and ROHS

5,CPR test repots.

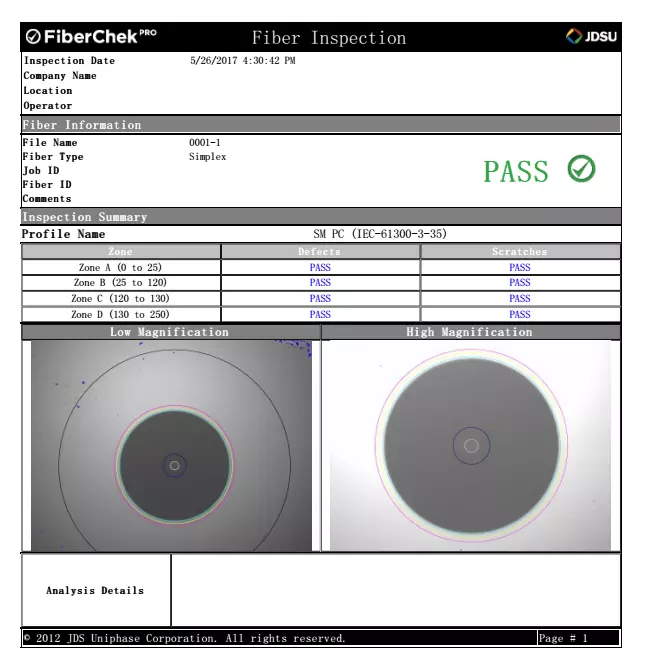

Our test program including: end face test,3D interferometer test, singlemode IL&RL

test, multimode IL&RL test.

Retractable Reel 8 Channel TPU Military Tactical Patch Cord

Retractable Reel 8 Channel TPU Military Tactical Patch Cord

Package:
Standard Paper box With Protection.
other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .
FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
