3.0mm Spiral Armored 1core Tight Buffer Optical Cable G652D
3.0mm Spiral Armored 1core Tight Buffer Optical Cable G652D
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GJFJH
Certification :
CE ISO9001
Place of Origin :
ShenZhen,China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 KM per month
Delivery Time :
5-10 working days
Packaging Details :
Paper box
Cable Diameter :
3.0mm
Armored :
Spiral Steel tape Armored
Fiber type :
G652D or G657A1
Jacket Material :
PVC,LSZH,TPU or OFNP
Strength member :
Aramid yarn
Length :
Customized
Description

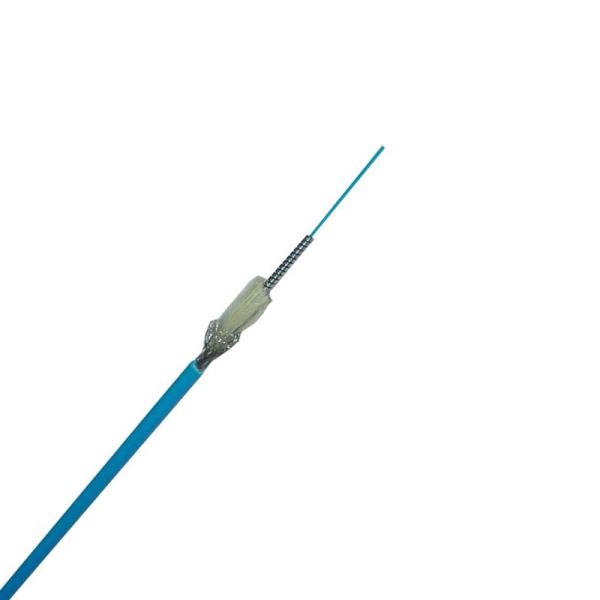

3.0mm SingleMode 1 Core Spiral Armored Indoor Tight-buffer Optical Cable

Description

Our 0.3mm armored jumper is packed in a spiral steel pipe with 0.6mm/0.9mm tight-wrapped fiber. A layer of aramid yarn is wrapped around the

spiral steel pipe as a reinforcement, and then a layer of micro stainless steel woven bag is added, which can resist 3000N With

the above flattening force, a layer of PVC, LSZH or TPU is finally extruded to form a cable.

Features

Unit tube with multi-cores, fiber count is up to 24, saves space;

PVC,LSZH,PE,TPU as the outer jacket material optional.

Mini diameter SUS spring tube armored and braiding reinforced ensure excellent crush resistance to 3000N;

Application

Process to armored patch cord, pigtail;

Cabling on wall, ceil, tube, case, etc.;

Distribution of LAN, WAN;

Fiber Count

Outer

Dia.

(mm)

Tensile Resistance

(N)

Pressure Resistance

(N/100mm)

Mini Bending Radius

(mm)

Attenuation

(dB/km)

Operation Temperature

(℃)

N.W.

(kg/km)

Long

Short

Long

Short

Dynamic

Static

1310/

1550nm

850/

1300nm
1 3.0 200 400 3000 4000 60 30 ≤0.4/0.3 ≤3.0/1.0 －20～+80 16
2 3.0 200 400 3000 4000 60 30 ≤0.4/0.3 ≤3.0/1.0 －20～+80 18
4 5.0 600 1000 3000 4000 80 40 ≤0.4/0.3 ≤3.0/1.0 －20～+80 35
6 5.5 600 1000 3000 4000 80 40 ≤0.4/0.3 ≤3.0/1.0 －20～+80 35
12 7.0 600 1000 3000 4000 100 50 ≤0.4/0.3 ≤3.0/1.0 －20～+80 54
24 10.0 600 1000 3000 4000 140 70 ≤0.4/0.3 ≤3.0/1.0

Note:

About datasheet is base on the tight buffer whose diameter is 0.6mm. For 0.9mm diameter please contact us for datasheet.

Outer jacket material could be PVC, LSZH, PE, TPU, etc.

3.0mm Spiral Armored 1core Tight Buffer Optical Cable G652D3.0mm Spiral Armored 1core Tight Buffer Optical Cable G652D
