Terminal System FRP G657 FTTH Outdoor Steel Messenger Wire
Terminal System FRP G657 FTTH Outdoor Steel Messenger Wire
Terminal System FRP G657 FTTH Outdoor Steel Messenger Wire
Terminal System FRP G657 FTTH Outdoor Steel Messenger Wire
Terminal System FRP G657 FTTH Outdoor Steel Messenger Wire
Terminal System FRP G657 FTTH Outdoor Steel Messenger Wire
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GJYXCH
Certification :
ISO9001, CE
Place of Origin :
ShenZhen,China
MOQ :
20KM
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 KM per month
Delivery Time :
5-10 working days
Packaging Details :
Paper box with Tray
Model Number: :
GJYXCH
Jacket Material: :
LSZH
Application: :
Outdoor Overhead
Fiber Type: :
G657A1
Package: :
Wooden Drum and Carton/customized
Color: :
Black/White/Customized Color
Description

Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optical Cable

Description

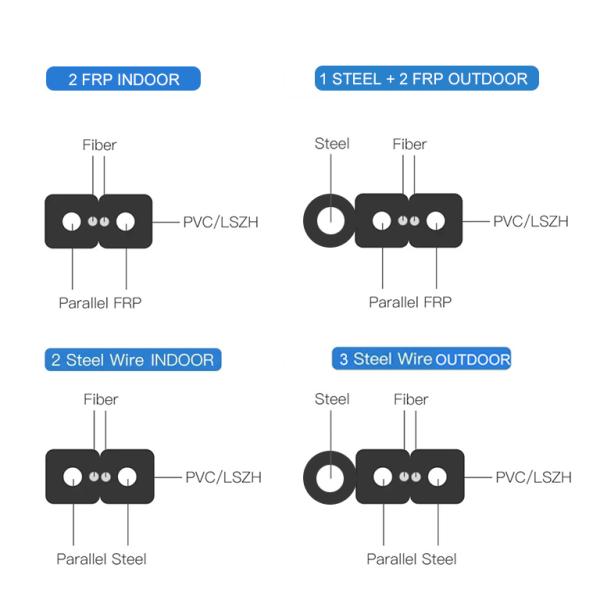

self-supporting access network uses the indoor and outdoor optical fiber cable with a butterfly shape that is to place the optical fiber unit in the

center, two parallel strength member are placed on both sides, and added single metallic strength member on the outside, Finally it is compeleted

wiht a black or colored LSZH out sheath.

Product Characteristics

• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics

• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure

• single metallic strength member makes optical cable having good tensile performance

• Optical cable has simple structure, light weight and strong practicability

• unique groove design, Easy peeled off and splice, simplify the installation and maintenance

• Low smoke halogen-free flame-retardant sheath, pro-environment

Application

• Indoor and outdoor wiring system

• FTTH, terminal system

• Indoor and outdoor shaft,building wiring

Structural Parameter

Model No. Count

Cable Size

(mm)

Weight

(kg/km)

 Tension
(N)

Crush

(N/100mm)

 Bending Radius Static / dynamic
(mm)
GJYXCH-1Xn 1 (2.0±0.1)×(5.0±0.1) 20 300/600 1000/2200 15/30
GJYXCH-2Xn 2 (2.0±0.1)×(5.0±0.1) 20 300/600 1000/2200 15/30

Optical Fibre Performance

Type Fiber attenuation(+20℃) OFL Band Width 10G Ethernet link length Minimum bending radius
Condition 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm /
Typical value MAX Typical value MAX
Unit dB/km dB/km dB/km dB/km MHZ.km MHZ.km m mm
G657A1 0.36/0.22 0.5/0.4 --- --- --- --- --- 10
G657A2 0.36/0.22 0.5/0.4 --- --- --- --- --- 7.5
OM3 --- --- 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000 ≤300 30
OM4 --- --- 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700 ≤550 30

Terminal System FRP G657 FTTH Outdoor Steel Messenger Wire

Terminal System FRP G657 FTTH Outdoor Steel Messenger WireTerminal System FRP G657 FTTH Outdoor Steel Messenger Wire
