12 Core Outdoor G652d Single Mode Opgw Optical Fiber Cable Factory Price

Description

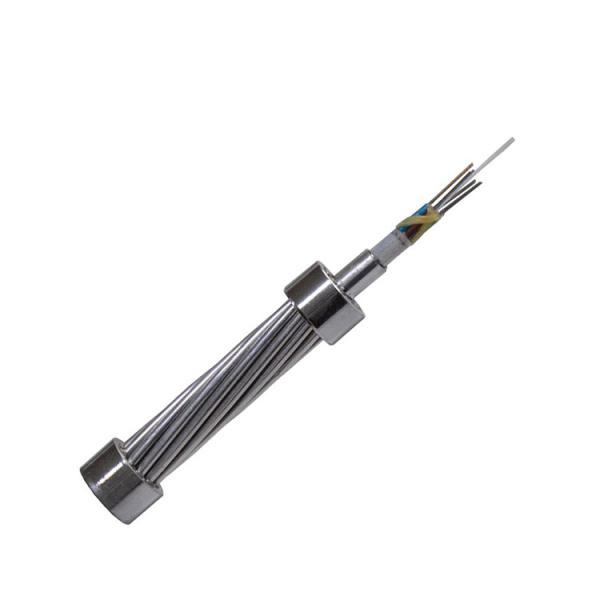

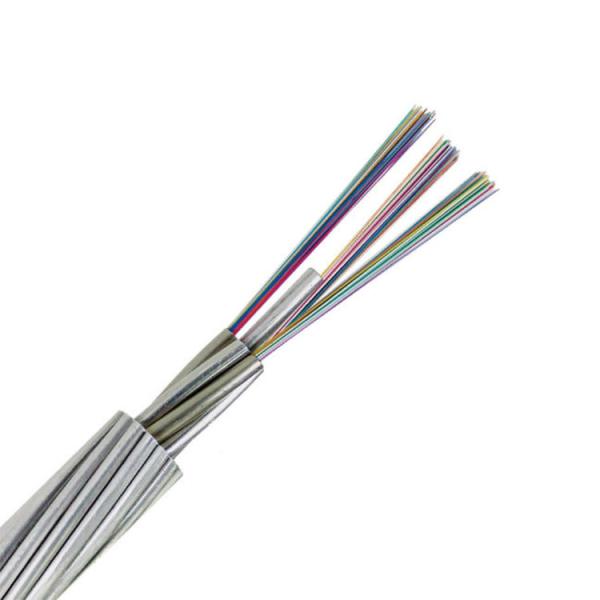

The OPGW cable has two function. Telecommunication and groud wire. The SUS tube is surrounded by single or double layers

of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Good anti-corrosion performance. Material and

structure are uniform, good resistance to vibration fatigue.

Characteristic

1. Up to 144 fibers

2. Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.

3. Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers

free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.

4. Optical fibers are protected by stainless steel tubes.

5. Excellent security, good bullet resist performance.

6. ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.

Application

Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire

and communication. Especially for installation on normal voitage and extra high voltage power lines. OPGW can replace

conventional ground wire of old power line with increasing fiber communication function. They conduct short circuit current and

provide lightning resistance.

Features

1. Up to 144 fibers

2. Cable diameter and weight approximate with another ground wire. Less additional load to tower, high tensile strength.

3. Excellent stainless steel tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.

4. Optical fibers are protected by stainless steel tubes.

5. Excellent security, good bullet resist performance.

6. ACSW, AAW and SST stranded design provide wide range combination of electrical conductivity and mechanical tensile strength.

Typical Design for Single Layer

Tech specification

Superior Lightning Resistance

• Fewer Aluminium Alloy (AA) wires are needed to meet electrical specs

• More/Heavier duty ACS wires can be used

• AA wires can be completely replaced with ACS in some applications

Extruded Aluminium Core tube

• Good combination of crush and kink resistance

• Core tube can safely and easily be routed to closures without armour

• Easy access to optical core Superior

Electrical Performance

• Aluminium core tube substantially increases conductor cross-section

• Improved short-circuit capacity

High performance. Even in High fibre Counts

• All fibres are housed in the core tube

• Core tubes are available in a wide range of Inside Diameters

• Armour wires are not replaced with fibre tubes in high count designs

Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
