LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
Specifications
Brand Name :
ZXOFC
Model Number :
GJYXCH
Certification :
ISO9001
Place of Origin :
ShenZhen，China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000 pcs per month
Delivery Time :
5-10 working days
Packaging Details :
Transparent plastic box, Standalone carton box,
Application :
FTTH FTTB FTTX Network
Outer jacket :
LSZH
Cable length :
can be customized
Fiber count: :
1-12 cores
Connenctor :
SC/LC/ST/FC Optional
Color: :
white,black
Fiber Type: :
G657A,G652D,single mode /multi mode
Cable Length: :
20m.30m,50m or customized
Description

50M Outdoor Drop Cable SC UPC Simplex Singlemode Patch Cord FTTH Fiber Optic Cable

Description

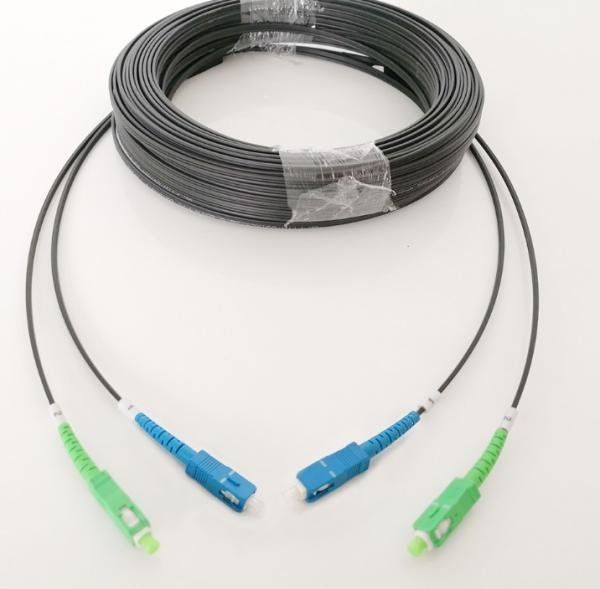

The fiber optic drop cable patch cord has two connectors in each end of the cable to make connection; pigtail cable is one cable with a connector.

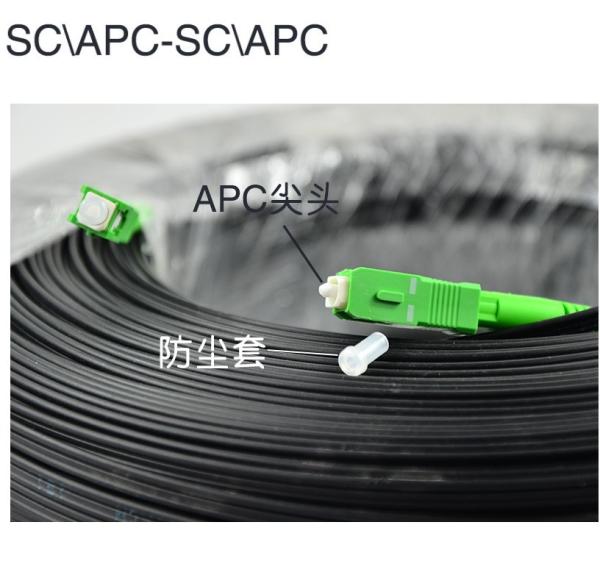

The connectors are with SC type, ceramic ferrule to be polished as UPC . A SM convertion patch cord is with two different connector.

FTTH Optical fiber patch cord is made up by optical communication unit, strengthen pieces and the sheath composition, that is put the optical

communication unit in the middle, both sides parallel place two root non-metallic strengthen members or metal strengthening component

phosphate steel wire, finally squeeze the black or color sheath into cable.

This type of drop cable is single fiber, three steel wire strengthen, 20 meters length,

Feature

Special bending resistance of optical fiber, offer more bandwidth and enhance network transmission characteristic, easily achieve 100

M per second, and realize the broadband, CATV and phone combination of three nets.

Two of the parallel strengthen pieces make cable has good compression performance, protection of optical fiber.

Cable simple structure, light weight, the function is strong.

The unique groove design, easy separating, convenient in, easy installation and maintenance

Specification:

Insertion Loss: ≤0.3dB

Return Loss: PC≥45dB UPC≥50dB APC≥60dB

Mating Times: Over 1000

Temperature: -40°C~+60°C

Tensile Strength: 45kg

Vibration Test: <0.1dB(5-50Hz, 1.5SM amplitude)

Indoor FTTH patch cord

LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores

Outdoor FTTH patch cord

LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores

LSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 CoresLSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 CoresLSZH SC UPC FTTH 50M Outdoor Drop Cable 1-12 Cores
