GYTA53 Armoured 24core Anti Rodent Optical Cable HDPE
GYTA53 Armoured 24core Anti Rodent Optical Cable HDPE
GYTA53 Armoured 24core Anti Rodent Optical Cable HDPE
GYTA53 Armoured 24core Anti Rodent Optical Cable HDPE
Specifications
Brand Name :
ZXOFC
Model Number :
GYTA53
Certification :
ISO9001 CE
Place of Origin :
Shenzhen，China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 KM per month
Delivery Time :
5-10 working days
Packaging Details :
Wooden drum with Tray
Outsheath: :
PVC/LSZH/PE/HDPE
Strength member: :
Steel Wire/FRP
Fiber Type: :
Single Mode/Multimode
Jacket Color :
Black
Fiber Count: :
2-288 Cores
Loose Tube: :
Gel-Filled
Description

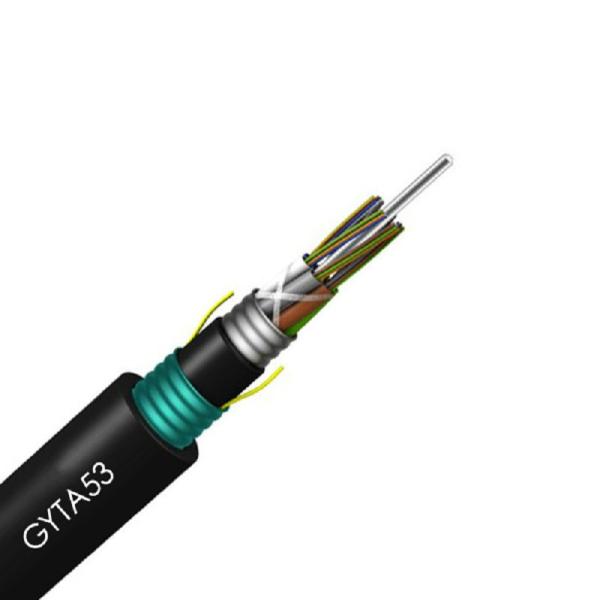

GYTA53 Armoured Double Jacket 12Core 24Core Rodent Resistant Optical Fiber Cable

Description

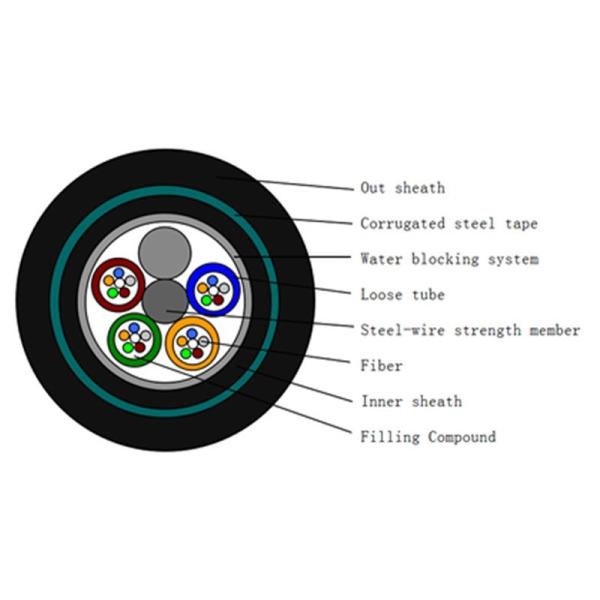

GYTA53 is one of structure for double jacket double Armored Rodent Resistant. The fibers, 250μm, are positioned in a loose tube made of a high

modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with

high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a

compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath

is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Feature

- Good mechanical and temperature performance

- High strength loose tube that is hydrolysis resistant

- Special tube filling compound ensure a critical protection of fiber

- Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

---Steel wire used as the central strength member

---Loose tube filling compound

---100% cable core filling

---APL moisture barrier

---PSP enhancing moisture-proof

---Water-blocking material

Technique Parameter

No. of cable
12
24
48
Fiber Model
G.652D
Design
(StrengthMember+Tube&Filler)
1+5
Central Strength Member
Material
Steel Wire
Diameter(±0.5)mm
1.4
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.72
1.72
2.0
Thickness(±0.03)mm
0.30
0.30
0.32
The Max.Core NO./Tube
6
6
12
Filler Rope
Material
LDPE
Diameter(±0.06)mm
1.7
1.7
2.0
NO.
3
1
1
Moisture Barrier
Material
Polymer Coated Aluminum Tape
Thickness(±0.03)mm
0.20
Inner
Sheath
Material
MDPE
Thickness(±0.2)mm
0.9
Armoring
Material
Polymer Coated Steel Tape
Thickness(±0.2)mm
0.22
Water Bloaking Layer
Material
Filling Compound
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter(±0.5)mm
12.5
12.5
13.1
Cable Weight(±10)kg/km
152
167
167
Attenuation
1310nm
0.35dB/ km
1550nm
0.21dB/ km
Min. bending radius
Without Tension
12.5×Cable-φ
Under Maximum Tension
25.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

GYTA53 Armoured 24core Anti Rodent Optical Cable HDPEGYTA53 Armoured 24core Anti Rodent Optical Cable HDPEGYTA53 Armoured 24core Anti Rodent Optical Cable HDPE
