LSZH Sheath FTTH Drop Cable , 1 Core Fiber Optic Ethernet Cable GJXH G657A1
LSZH Sheath FTTH Drop Cable , 1 Core Fiber Optic Ethernet Cable GJXH G657A1
LSZH Sheath FTTH Drop Cable , 1 Core Fiber Optic Ethernet Cable GJXH G657A1
LSZH Sheath FTTH Drop Cable , 1 Core Fiber Optic Ethernet Cable GJXH G657A1
LSZH Sheath FTTH Drop Cable , 1 Core Fiber Optic Ethernet Cable GJXH G657A1
LSZH Sheath FTTH Drop Cable , 1 Core Fiber Optic Ethernet Cable GJXH G657A1
LSZH Sheath FTTH Drop Cable , 1 Core Fiber Optic Ethernet Cable GJXH G657A1
LSZH Sheath FTTH Drop Cable , 1 Core Fiber Optic Ethernet Cable GJXH G657A1
Specifications
Brand Name :
ZXOFC
Model Number :
GJXH
Certification :
CE FCC ROSH ISO9001
Place of Origin :
ShenZhen,China
MOQ :
10KM
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000KM per month
Delivery Time :
3-5 working days
Packaging Details :
Wooden drum
Fiber Type :
G657A1,G652D, G657A2
Application :
FTTH/CATV/LAN
Out Sheath :
LSZH
Package :
Paper box +Wooden drum
Length :
500~3000 meter per Roll
Strength member :
Steel wire
Lead time :
3-5 working days
Description

Single Mode G657A1 LSZH Sheath FTTH Indoor 1 Core Fiber Optic Drop Cable GJXH

Description

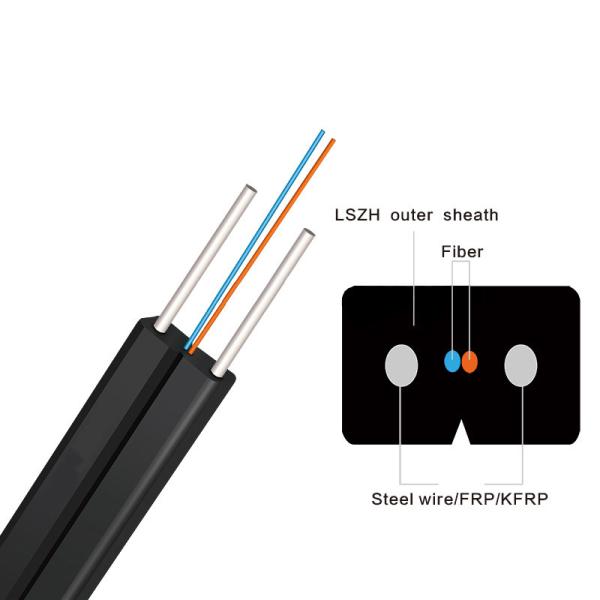

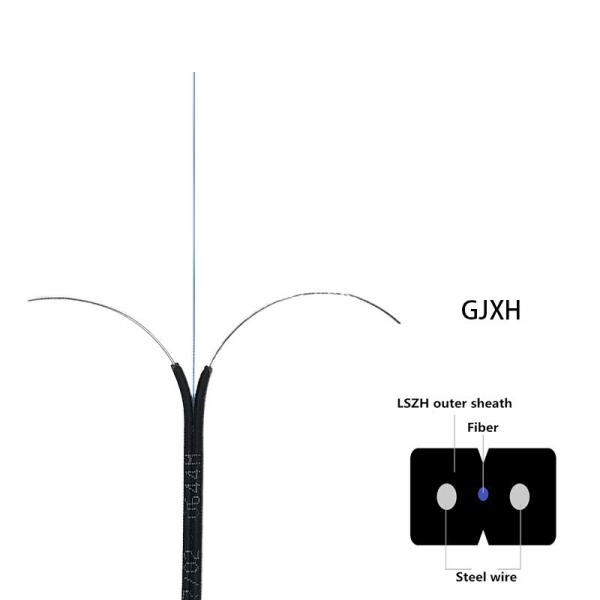

GJXH, the optical fiber unit is positioned in the centre. Two steel wires are placed at the two sides. Then the cable is completed with a black or color LSZH or PVC sheath.
Features

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

2. Two parallel steel wries strength members ensure good performance of crush resistance to protect the fiber.

3. Simple structure, light weight and high practicability.

4. Low smoke, zero alogen and flame retardant sheath.

Technical Parameters

Fiber count (core)Cable diametre (mm)Weight (kg/km)Tensile Strength Long/Short Term (N)Crush Resistance Long/Short Term (N)Bending Radius
Static/Dynamic
(mm)
1(2.1±0.1)×(3.1±0.1)101000/2200200/100015/30
2(2.1±0.1)×(3.1±0.1)101000/2200200/100015/30
4(2.1±0.1)×(3.1±0.1)121000/2200200/100015/30


Application
LSZH Sheath FTTH Drop Cable , 1 Core Fiber Optic Ethernet Cable GJXH G657A1
Package & Delivery

Packaging Details:
Carton box,Wooden reel,2Km/drum
Inter packing: wooden reel,plastic reel or paper reel
Outer packing: carton box,pull out box
PS:OEM service is available for the GJXFH Drop Cable
Delivery Time:
Generally shipped within 3~7 days after the prepayment.


Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:
Quantity(KM)1~5050~100100~300≥300
Est.Time(Days)Within 7 days5-10 days7-15 daysTo be Negotiated!
Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

LSZH Sheath FTTH Drop Cable , 1 Core Fiber Optic Ethernet Cable GJXH G657A1

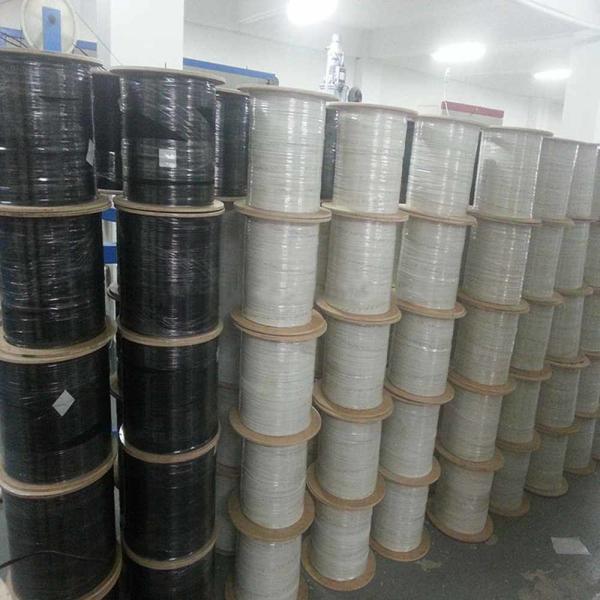

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
