LSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel Wire
LSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel Wire
LSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel Wire
LSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel Wire
LSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel Wire
LSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel Wire
Specifications
Brand Name :
ZX-OFC
Model Number :
GJYFXCH
Certification :
CE ROSH ISO9001
Place of Origin :
ShenZhen,China
MOQ :
10KM
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000 KM per month
Delivery Time :
5-15 days
Packaging Details :
paper box packing
Cable diameter :
5mm*2mm
Fiber count :
1~2~4 core
Installation tensile :
200N
Cable Length :
1km 2km 3km
Fiber type :
G657A1,g652d,G657A2
Material of jacket :
UV and Flame resistant LSZH
Strength member :
0.5mm Steel wire
Color :
Black/White
Description

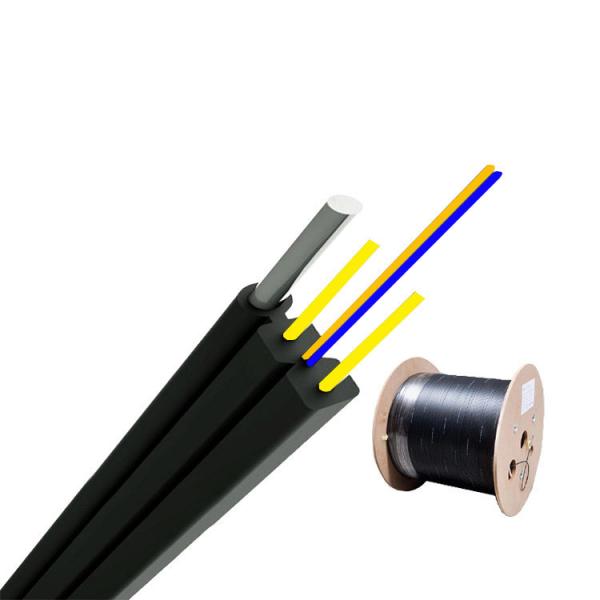

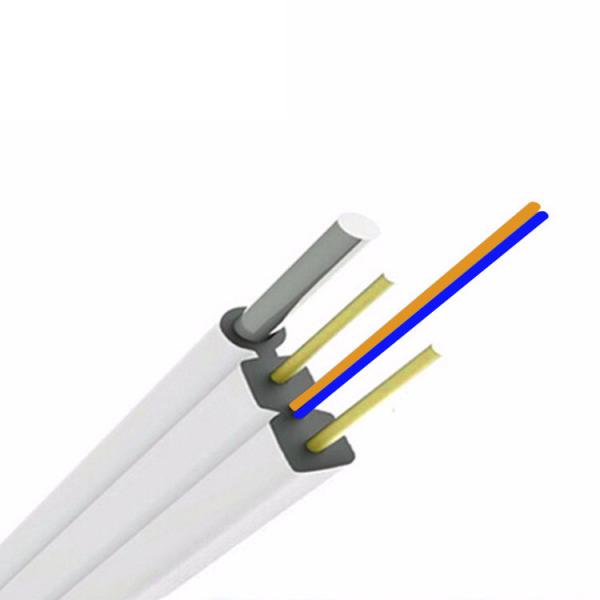

FTTH 2 Fiber LSZH G657A1 SM 2 FRP Wire Figure 8 with 1.0mm*1 messenger steel wire

Description

The GJYXFCH fiber optic cable is a fiber optic cable centered on two parallel fiber reinforced plastics. These parallel fibers are designed to provide the necessary support for the cable. Therefore, the GJYXFCH fiber optic cable has steel on the side to prevent the cable from breaking in the event of mechanical damage. In addition, the cable is covered by a black low-smoke, halogen-free jacket. This is one of the most widely used fiber optic cables worldwide.

Characteristics:

● Simple structure, light weight and high tensile strength
● Two pieces of steel wires or FRP as strengh member.
● Novel groove design, easily strip and splice, simplify the installation and maintenance.
● Low smoke, zero halogen and flame retardant sheath, environment-friendly, good Safety

● 1.0mm steel wire for self-supporting

Application

For pipes;
Used as an interconnection of devices for optical connection of optical communication rooms and optical distribution frames;For

indoor wiring, especially for distribution cables;

For local communication;
From outdoor pipe applications to indoor wiring;
Indoor wiring and direct wiring by end users;
Enter the building cable;

Fiber Characteristics

Model of Optical fiber G.652 G.657 OM2(50/125μm) OM1(62.5/125μm)
Attenuation (+20°C) @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.35 dB/km
@1550nm ≤0.22 dB/km ≤0.21dB/km
@1625nm ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz@km ≥200 MHz@km
@1300nm ≥1000 MHz@km ≥600 MHz@km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1260nm

Cable Parameters

Cable code FIiber count Cable size
(mm)		 Cable
weight
(KG/KM)		 Tensile strength
long/short term
(N)		 Crush resistance
long/short term
(N/100mm)		 Bending radius
static/dynamic
(mm)
GJYXFCH 1 (2.0+-0.1)X(5.2+-0.1) 19 300/600 1100/2200 15/30
GJYXFCH 2 (2.0+-0.1)X(5.2+-0.1) 19 300/600 1100/2200 15/30
GJYXFCH 4 (2.0+-0.1)X(5.2+-0.1) 19 300/600 1100/2200 15/30
GJYXFCH 8 (2.5+-0.1)X(6.0+-0.1) 27 300/600 1100/2200 15/30
GJYXFCH 12 (2.5+-0.1)X(6.0+-0.1) 27 300/600 1100/2200 15/30

Packaging Details

1-2KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

LSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel Wire

Photo Show:

LSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel WireLSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel Wire

LSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel Wire
Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Shenzhen/GuangZhou/Hongkong

Lead Time:
Quantity(KM) 1-50 50-100 100-300 ≥300
Est.Time(Days) 7 7-10 7-15 To be Negotiated!

Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

LSZH G657A1 SM 2 FRP Fiber Optic Ethernet Cable With 1.0mm*1 Messenger Steel Wire

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
