Specifications
Brand Name :
ZXOFC
Model Number :
FTTH drop Cable
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
50KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Messenger :
0.5, 1.0, 1.2mm Optional
Strength member :
Steel Wire, FRP, KFRP
Jacket :
PVC/LSZH
Package :
wooden drum
Color :
Black /Grey/White
Application :
Telecommunication
Standards :
IEC 60794-1 YD/T901-2009
Description

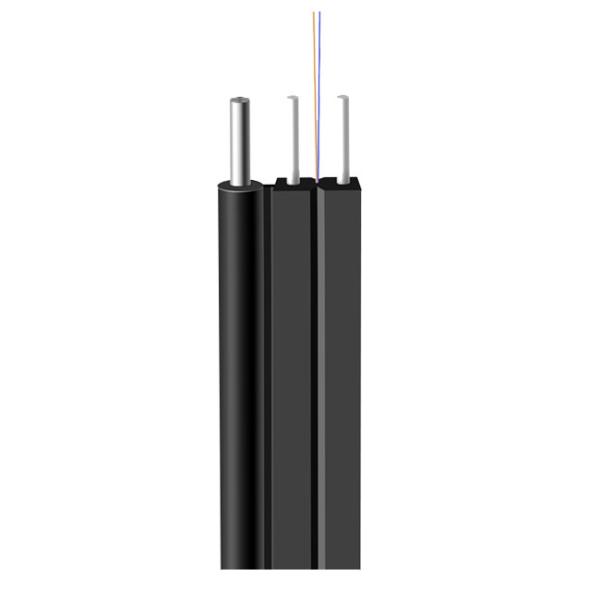

Indoor Home GJYXFCH G657 Outdoor Flat Optical Stripper Tension Clamp Patch Cord G657a 2 Core Aerial Ftth Fiber Drop

Description

GJYXCH (Metal strength member, LSZH jacket, Self-Supporting)

GJYXDCH (Optical fiber ribbon, Metal strength member, LSZH jacket, Self-Supporting)

GJYXFCH (Non-metal strength member, LSZH jacket, Self-Supporting)

GJYXFDCH (Optical fiber ribbon, Non-metal strength member, LSZH jacket, Self-Supporting)

Optical Characteristics

Good mechanical and environmental characteristics.

Flame retardant characteristics meet the requirements of relevant standard.

The mechanical characteristics meet the requirements of relevant standard.

Soft, flexible, easy to lay and splice, and with big capacity data transmission.

Meet various requirements of market and clients.

Parameters

Fiber Type Attenuation Overfilled launch Bandwidth Effective Modal Bandwidth 10GB/S Ethernet link length Min Bending Radius
Conditions 1310/1550nm 850/1300nm 850/1300nm 850nm 850nm
Unit dB/km dB/km MHZ.km MHZ.km m mm
G652D 0.36/0.22 16
G657A1 0.36/0.22 10
G657A2 0.36/0.22 7.5
50/125 3.0/1.0 ≥500/500 30
62.2/125 3.0/1.0 ≥200/500 30
OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 30
OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 30
B1-OM3 3.0/1.0 ≥1500/500 ≥2000 ≥300 7.5
B1-OM4 3.0/1.0 ≥3500/500 ≥4700 ≥550 7

Cable code
FIiber count
Cable size
(mm)
Cable
weight
(KG/KM)
Tensile strength
long/short term
(N)
Crush resistance
long/short term
(N/100mm)
Bending radius
static/dynamic
(mm)
GJYXFCH
1
(2.0+-0.1)X(5.2+-0.1)
19
300/600
1100/2200
15/30
GJYXFCH
2
(2.0+-0.1)X(5.2+-0.1)
19
300/600
1100/2200
15/30
GJYXFCH
4
(2.0+-0.1)X(5.2+-0.1)
19
300/600
1100/2200
15/30
GJYXFCH
8
(2.5+-0.1)X(6.0+-0.1)
27
300/600
1100/2200
15/30
GJYXFCH
12
(2.5+-0.1)X(6.0+-0.1)
27
300/600
1100/2200
15/30

Noted:

1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Specially designed Cable structure is available on request.

Packaging Details:

1-2KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

Home Aerial Flat Fiber Optic Cable 2 Core Stripper Tension Clamp Patch Cord

Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be Negotiated!
Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

Home Aerial Flat Fiber Optic Cable 2 Core Stripper Tension Clamp Patch Cord

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
