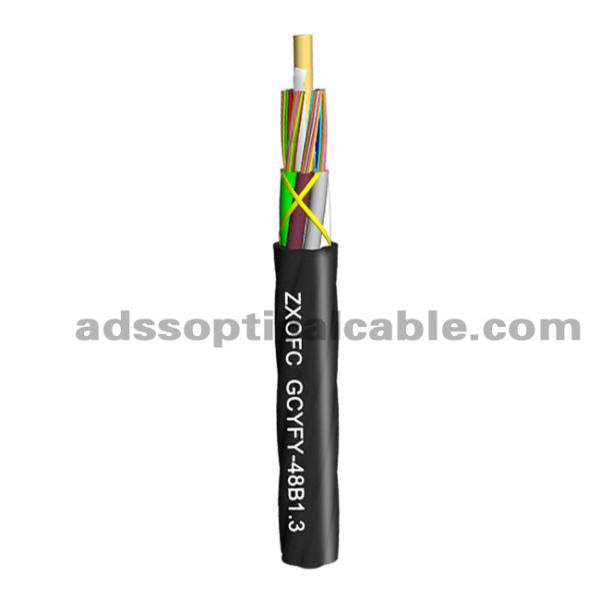

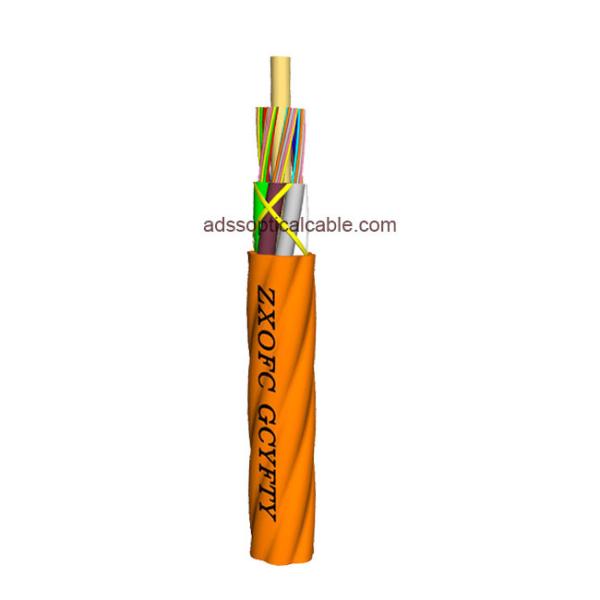

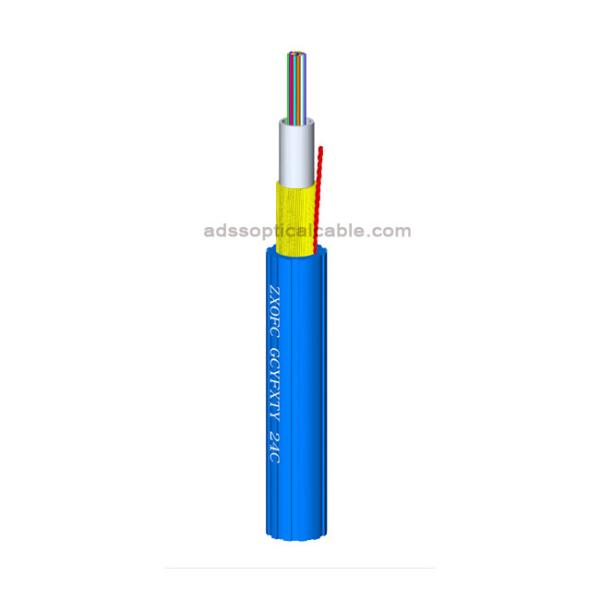

Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GCYFTY
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Gel :
Gel-filled or Non gel-filled optional
Fiber type :
Singlemode G652d,OM1,OM2,OM3
Outer sheath :
PE,LSZH or PVC
Fiber count :
2-288 core
Structure :
Stranded Loose tube
Diameter :
Customized
Central strength Member :
FRP
Application :
Aerial,direct buried,duct
Description

2-288 Fiber Count and ≥ 10 Number of Conductors Air Blown Micro Duct Fiber Optic Cable

Description
The blowing cable, that is, the cable blowing, seeks to blow the cable into the pre-embedded silicon core tube by means of high-pressure air

blowing. The blower blows high-pressure, high-speed compressed air into the silicon core tube, and the high-pressure airflow pushes the gas-

sealed piston, so that the gas-sealed piston connected to the end of the cable forms a configurable uniform pulling force on the cable, and at the

same time, blows The cable crawler hydraulic conveying mechanism holds the cable forward to form a conveying force, and the combination of

the pulling force and the conveying force enables the penetrating cable to quickly travel through the pipe in a suspended state along with the high-

speed airflow.

Features

1. Compared with other cable laying methods, the tension of the cable during the laying process is relatively uniform and much smaller;

2. The laying process is simplified, and the laying of the optical cable is fast;

3. The laying distance is long, and the cable with long length can be used to reduce the number of joints and reduce the attenuation;

4. The number of manholes and hand holes on the pipeline can be greatly reduced;

5. Long manpower for laying work

Cable Cross-section diagram

Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors

Technique Parameters

Amount. of fiber Max. numb. of the fiber per tube Number of Number *Nom. thickness of sheath Overall diameter Weight
Tube of Active (Approx.) (Approx.)
Positions Tubes mm mm kg/km
12 12 6 1 0.5 6.1 29
24 12 6 2 0.5 6.1 29
48 12 6 4 0.5 6.1 29
72 12 6 6 0.5 6.1 29
144 12 12 12 0.5 9.1 73
192 24 8 8 0.5 9 72
288 24 12 12 0.5 11.4 110

Our services
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Our Certificate
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Package and delivery
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Air Blown Microduct Fiber Optic Cable 2-288 Core Above 10 Number Conductors
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .
FAQ

1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?
Fiber brands including :ZXOFC

3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
