Micro Duct G652d Fiber Optic Cable Air Blowing GCYFTY Low Loss 48 Core
Micro Duct G652d Fiber Optic Cable Air Blowing GCYFTY Low Loss 48 Core
Micro Duct G652d Fiber Optic Cable Air Blowing GCYFTY Low Loss 48 Core
Micro Duct G652d Fiber Optic Cable Air Blowing GCYFTY Low Loss 48 Core
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GCYFTY-48B1.3
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Gel :
Gel-filled or Non gel-filled optional
Fiber type :
Singlemode g652d
Outer sheath :
PE,LSZH or PVC
Fiber count :
48 core
Structure :
Stranded Loose tube
Diameter :
Customized
Central strength Member :
FRP
Application :
Aerial,direct buried,duct
Description

Micro Duct Air Blowing Fiber Optical Cable 48 Core Low Loss GCYFTY G652D Cable

Description

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound and covered with a layer of aramid

yarn as strength member. The cable is completed with an outer sheath.

Features

1. Using centre tube design less than 24f to get more compact structure

2. Small outer diameter, light weight , low friction sheath material

3. Accurate excess fibre length control to get stable cable performance

4. Stable temperature cycling performance by special process control

5. High speed, long distance air-blowing , efficient installation

6. Optional LSZH outer sheathing, applicable for access to indoor

7. Optional 200μm mini optical fibre to get smaller outer diameter

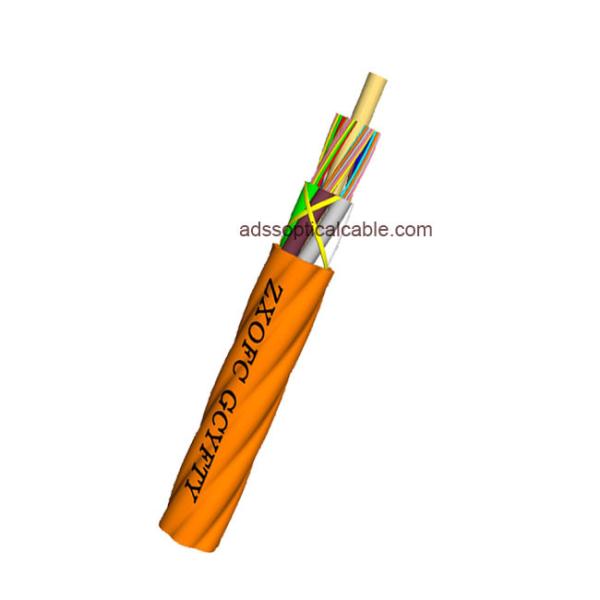

Cable Cross-section diagram

Micro Duct G652d Fiber Optic Cable Air Blowing GCYFTY Low Loss 48 Core

Technique Parameters

Amount. of fiber Max. numb. of the fiber per tube Number of Number *Nom. thickness of sheath Overall diameter Weight
Tube of Active (Approx.) (Approx.)
Positions Tubes mm mm kg/km
12 12 6 1 0.5 6.1 29
24 12 6 2 0.5 6.1 29
48 12 6 4 0.5 6.1 29
72 12 6 6 0.5 6.1 29
144 12 12 12 0.5 9.1 73
192 24 8 8 0.5 9 72
288 24 12 12 0.5 11.4 110

Our services
Micro Duct G652d Fiber Optic Cable Air Blowing GCYFTY Low Loss 48 Core
Our Certificate
Micro Duct G652d Fiber Optic Cable Air Blowing GCYFTY Low Loss 48 Core
Package and delivery
Micro Duct G652d Fiber Optic Cable Air Blowing GCYFTY Low Loss 48 Core
Micro Duct G652d Fiber Optic Cable Air Blowing GCYFTY Low Loss 48 Core
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .
FAQ

1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?
Fiber brands including :ZXOFC

3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
