6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing
6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing
6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing
6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing
6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing
6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing
6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing
6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing
6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing
6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYXTS
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Color :
Black
Fiber count :
2-24 core
Fiber type :
Singlemode G652D,G657,OM1,OM2,OM3,
Outer sheath :
PE
Operating Temperature :
-40°C to + 70°C
Number of Conductor :
≥ 10
Length :
customized
Description

Uni-Tube GYXTS 2 /4/6/8/12/24 Core Duct Armored Fiber Optic Cable Application For Pipeline Installing Cable

Description

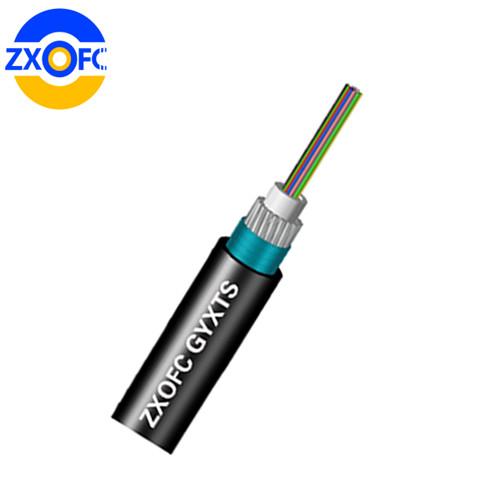

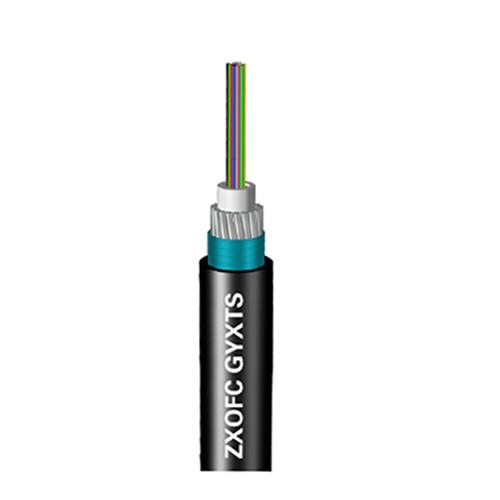

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking glass yarn. A corrugated steel tape is applied over the yarn. Two rip cords are located between the glass yan and the steel tape. Then the cable is completed with a high density polyethylene (HDPE) sheath.

Standards

The GYXTA cable is compliant with the YD/T 1114 standard.

Features

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE sheath protects cable from ultraviolet radiation
· Loose tube filling compound and 100% cable core filling


Application

· Adopted to outdoor distribution;
· Suitable for aerial, pipeline laying method;
· Long distance and local area network communication.

Structure details

Fiber count 6F-24F
Loose tube Material PBT Color white
Diameter 2.9±0.05mm (6-12F) Thickness 0.4±0.05mm (6-12F)
3.5±0.05mm (24F) 0.5±0.05mm (24F)
Yarn Material water blocking glass yarn Qty 20 strands
Rip cords Qty (1110*2)*2 Color White
Armor Material Corrugated steel tape Diameter 0.21*20mm
Out sheath Material HDPE Color Black
Diameter 7.4±0.2mm (6-12F) Thickness 1.2-1.3mm (6-12F)
8.5±0.3mm (24F) 1.3±0.1mm (24F)
Net weight 48±5kg/km

Mechanical and environment performance

Tensile strength Max. 2000N
Crush load Max. 2000N/100mm
Bending radius Dynamic 20D
Static 10D
Storage temperature -50℃～+70℃
Operating temperature -40℃～+70℃

Fiber characteristics

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7


Requirement for Order:

1. Fiber sort: Single mode G652,G655,G657, Multi mode 50/125,62.5/125,OM3,OM4.
2. Fiber brand: YOFC, Corning, Fiberhome Fujikura, OFS etc.
3. Sheath material: PE,LSZH( can be required).
4. Sheath color: Black ,can be required.
5. The fiber and tube color: according to stranded color, can be required.
6. The cable Size: shall be in accordance with the table, can be required.
7. Length of cable: generally is 1KM, can be required.
8. Other requirement:can be negotiated.

Packaging Details:

1-5KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Shenzhen/Hongkong/GuangZhou

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be Negotiated!
Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

6 8 12 Strand Armored Fiber Optic Cable Uni Tube GYXTS For Pipeline Installing


The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
