96 144 Core Duct Fiber Optic Cable , Anti Rodent Direct Burial Single Mode Fiber
96 144 Core Duct Fiber Optic Cable , Anti Rodent Direct Burial Single Mode Fiber
96 144 Core Duct Fiber Optic Cable , Anti Rodent Direct Burial Single Mode Fiber
96 144 Core Duct Fiber Optic Cable , Anti Rodent Direct Burial Single Mode Fiber
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYTS
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Color :
Black
Fiber count :
24 core
Fiber type :
Singlemode,G652D,G655,G657,OM2,OM3,OM4
Outer sheath :
PE,HDPE,LSZH,PVC
Armored material :
steel wire
cable Diamter :
9.5-16.5
Lead time :
1-2 weeks
Description

GYTS Outdoor Direct Buried 12 24 96 144 288 core Anti-rodent Single Mode Fiber Optic Cable

Description

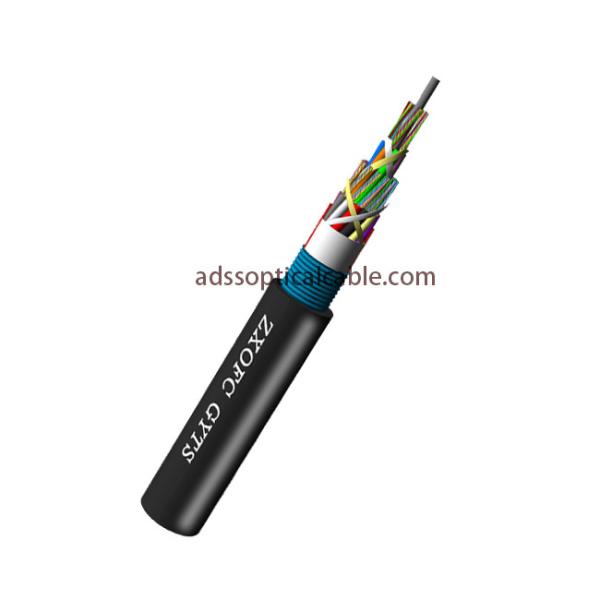

GYTS Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber

counts with the flexibility and versatility required for today's most demanding installations, including duct and

underground conduit.

Features

Up to288 fibers.

Loose tube gel-filled construction for superior fiber protection.

Corrugated steel tape armorto protect cable from mechanical damage and rodent protection.

UV and moisture-resistant design.

Application:
Backbones and Access.
Installed in ducts, underground conduits.
Temperature Rage:

Optional

Dry core structure is available, usd“-DC” suffix.

Standards:

Comply with standard YD/T 901-2009 as well as IEC 60794-1

Technical Parameters:

Fiber count 24 core
Fiber Type: G652D
Crush Resistance Long term: 300 (N/100MM)
Crush Resistance Short term: 1000(N/100MM)
Overall Diameter 11.4mm~13.10mm
Sheath: PE
Fiber NO. Tubes Weight Min. Bending Radius (mm) Min. Tensile Strength (N) Min. Crush Pressure (N/100mm)
(kg/km) Static Dynamic State Short Long Short Long
State Term Term Term Term
2-6 1 96 10D 20D 3000 1000 1000 300
8-12 2 96 10D 20D 3000 1000 1000 300
14-18 3 96 10D 20D 3000 1000 1000 300
20-24 4 96 10D 20D 3000 1000 1000 300
26-30 5 96 10D 20D 3000 1000 1000 300
32-36 6 105 10D 20D 3000 1000 1000 300
38-48 4 111 10D 20D 3000 1000 1000 300
50-60 5 111 10D 20D 3000 1000 1000 300
62-72 6 138 10D 20D 3000 1000 1000 300
74-84 7 168 10D 20D 3000 1000 1000 300
86-96 8 168 10D 20D 3000 1000 1000 300
98-108 9 195 10D 20D 3000 1000 1000 300
110-120 10 195 10D 20D 3000 1000 1000 300
122-132 11 228 10D 20D 3000 1000 1000 300
134-144 12 228 10D 20D 3000 1000 1000 300
146-216 13-18 228 10D 20D 3000 1000 1000 300
288 24 28 10D 20D 3000 1000 1000 300

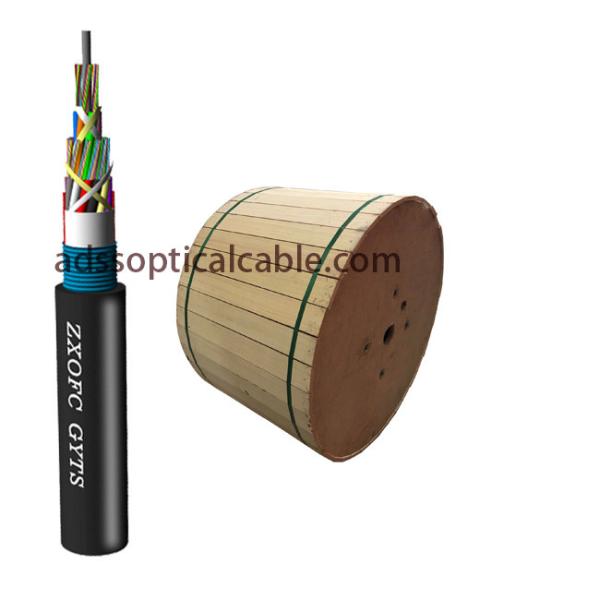

Packaging Details:

1-5KM per roll. Packed by wooden drum . Other packing available according to client`s Request.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 7 years;
d. Length marking in meters.

Port:

Shenzhen/Hongkong/Guangzhou

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!
Note:

The Packing standard and details as above is estimated and final size &weight shall be confirmed before shipment.

96 144 Core Duct Fiber Optic Cable , Anti Rodent Direct Burial Single Mode Fiber

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature.
