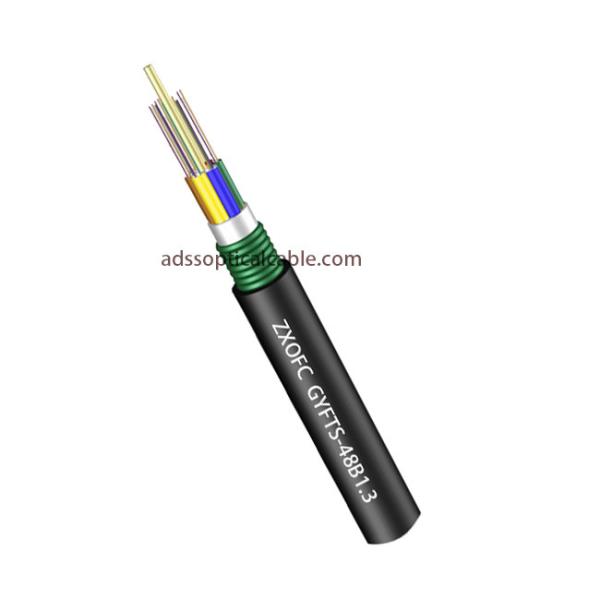

Gyfty 8 12 24 Strand Single Mode Armored Fiber Optic Cable Stranded Loose Tube
Gyfty 8 12 24 Strand Single Mode Armored Fiber Optic Cable Stranded Loose Tube
Gyfty 8 12 24 Strand Single Mode Armored Fiber Optic Cable Stranded Loose Tube
Gyfty 8 12 24 Strand Single Mode Armored Fiber Optic Cable Stranded Loose Tube
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYFTS
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
3KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Color :
Black
Fiber :
G652D single mode or multi mode
Certificate: :
ISO9001, ISO14001, CE, CANS and TLC
Fiber count: :
2-144 core
Application :
Duct, direct burial, pipeline,
Outer sheath :
PE,HDPE,PVC
Loose tube :
PBT
Operation Temperature :
-20° to +70°C
Description

Gyfts/Gyfta/Gyfty 8 12 24 Core Single Mode Stranded Loose Tube Armored Optical Fiber Cable

Description

Model No.: GYTS / GYFTS

Structure: stranded loose tube, Corrugated steel tape armored with PE jacket

Properties: Armored steel tape providing maximum, anti-crush property, Bullet resistance performance

Features

Good performance under mechanical stress.

Loose tube gel-filled construction for superior fiber protection.

Longitudinal corrugated steel tape is laminated at both side and bonded to PE outer jacket, it ensures not only radial moisture-proof but also

reinforces the crush resistance of fiber optical cable.

UV and waterproof design.

Cable Cross-section Diagram

Gyfty 8 12 24 Strand Single Mode Armored Fiber Optic Cable Stranded Loose Tube

Application

Suitable in duct or Aerial

Long-haul communications

Junction communications

Subscriber network

Local area network.

Parameters

Optical Characteristics
G.652 G.655 50/125μm 62.5/125μm
Attenuation '@850nm ≤3.0 dB/km ≤3.0 dB/km
(+20℃) '@1300nm ≤1.0 dB/km ≤1.0 dB/km
'@1310nm ≤0.36 dB/km ≤0.40 dB/km
'@1550nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth '@850nm ≥500 MHz·km ≥200 MHz·km
(Class A) '@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Technical Parameters

Cable Type Fiber Count tubes fillers Cable Diameter mm Cable Weight kg/km Tensile Strength Crush Resistance Bending Radius
Long/Short TermN Long/Short Term N/100mm Static/Dynamic mm
GYFTS 2~6 1 4 8.5 100 1000/3000 1000/3000 10D/20D
GYFTS 8~12 2 3 9 100 1000/3000 1000/3000 10D/20D
GYFTS 14-18 3 2 9 100 1000/3000 1000/3000 10D/20D
GYFTS 20-24 4 1 9.5 100 1000/3000 1000/3000 10D/20D
GYFTS 26-48 4 1 10.5 120 1000/3000 1000/3000 10D/20D
GYFTS 50-96 8 0 12 200 1000/3000 1000/3000 10D/20D
GYFTS 100-144 12 0 14 250 1000/3000 1000/3000 10D/20D

Noted:

1. Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Specially designed Cable structure is available on request.

Packaging Details:

1-5KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be Negotiated!
Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

Gyfty 8 12 24 Strand Single Mode Armored Fiber Optic Cable Stranded Loose Tube

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
