G652D External Aerial Cable / GYXTA 12 Core Single Mode Fiber Optic Cable
G652D External Aerial Cable / GYXTA 12 Core Single Mode Fiber Optic Cable
G652D External Aerial Cable / GYXTA 12 Core Single Mode Fiber Optic Cable
G652D External Aerial Cable / GYXTA 12 Core Single Mode Fiber Optic Cable
G652D External Aerial Cable / GYXTA 12 Core Single Mode Fiber Optic Cable
G652D External Aerial Cable / GYXTA 12 Core Single Mode Fiber Optic Cable
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYXTA
Certification :
CE/ROHS/ISO9001
Place of Origin :
ShenZhen,China
MOQ :
5000 meters
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Fiber type :
Singlemode,Multimode,om1,om2,om3
Customized :
Acceptable
Model number :
GYXTA
Fiber count :
2-24 core
Optical fiber :
Corning or YOFC
Outer Sheath material :
PE,HDPE,MDPE,LSZH
Application :
Aerial,direct buried,duct
Description

Duct optical fiber cable 12 core Single mode G652D GYXTA duct/areial fiber optic cable

Description

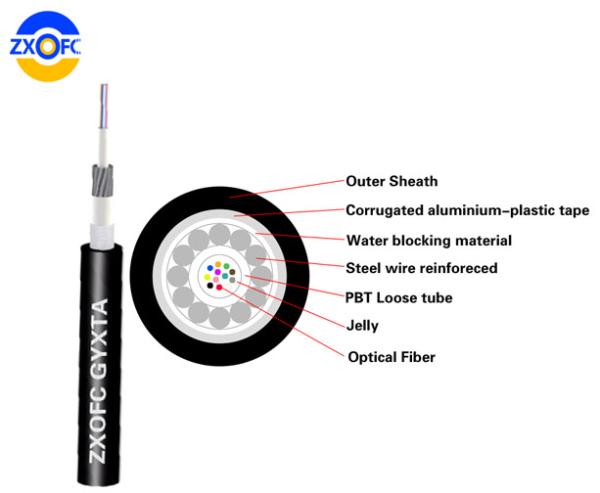

GYXTA is an outdoor communication optical cable of metallic strength member of the central tube jelly-filled structure, with Al-polyethylene laminated sheath.

Features
Full cross-section water-blocking structure and double-sided coated aluminum with vertical cover ensure good water blocking and moisture resistance
Loose tube is filled with special ointment for a key fiber protection
Phosphated steel wire wrapped members are resistant to tensile and lateral pressure
Product life of 30 years

Performance Indicators
Applications: Suitable for long-distance communication and indoor communication
Way of lying: direct burial, pipeline, overhead
Operating temperature: -40 ~ + 70 ℃
Bend radius: static 10x cable diameter
Dynamic 20x cable diameter

Installation method
Aerial, Duct and direct buriaData communication;

Technique Parameters

umber of coresMaximum fiber cores in loose tubeCable diameter (mm)Cable weight (kg/km)Allowable tension (N)Allowable flattening force (N/100 mm)
shortlong termshortlong term

2-8
10-12

8
12

8.4
9.1

86
118

≥1500≥600≥1000≥300


Note:
1. Only GYXTA Cables are listed in the table. Cables with other specifications can be inquired.
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.


Temperature Rage:

• Transport/storage temperature: -20℃ to +70℃

Certificate

G652D External Aerial Cable / GYXTA 12 Core Single Mode Fiber Optic Cable

Our services
G652D External Aerial Cable / GYXTA 12 Core Single Mode Fiber Optic Cable
Our Certificate
Package and delivery
G652D External Aerial Cable / GYXTA 12 Core Single Mode Fiber Optic Cable
G652D External Aerial Cable / GYXTA 12 Core Single Mode Fiber Optic Cable
Package:
Standard Wooden Drum With Protection.
Standard reel length:2/3/4/5km/reel,other length is also available
Shipping
For the large order , we usually ship the cable by sea .
For small order , we can ship them by sea (LCL) or by air /by exress
(DHL,UPS,FEDE or TNT..) as your request .

1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?
Fiber brands including :ZXOFC

3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment
For large orders: T/T by advanced deposit
For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
