96 Core Duct Fiber Optic Cable GYTA53 Anti Bending Direct Buried Application
96 Core Duct Fiber Optic Cable GYTA53 Anti Bending Direct Buried Application
96 Core Duct Fiber Optic Cable GYTA53 Anti Bending Direct Buried Application
96 Core Duct Fiber Optic Cable GYTA53 Anti Bending Direct Buried Application
96 Core Duct Fiber Optic Cable GYTA53 Anti Bending Direct Buried Application
96 Core Duct Fiber Optic Cable GYTA53 Anti Bending Direct Buried Application
96 Core Duct Fiber Optic Cable GYTA53 Anti Bending Direct Buried Application
96 Core Duct Fiber Optic Cable GYTA53 Anti Bending Direct Buried Application
Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYTA53
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
4KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Color :
Black
Fiber count :
2-288 core
Cable Type: :
double Armored
Application :
Duct,overhead,direct buried
Fiber Mode :
Sinlgemode G652D, Multimode is optional
Package :
Fumigated wooden drum
Length :
Customized 2-2000km
Fiber Type: :
G652D,G657A1,G657A2,OM1,OM2,OM3,PM4
Description

GYTA53 Anti-Bending DUCT/Direct Buried Application 96 core Fiber Optic Cable Price List

Description:

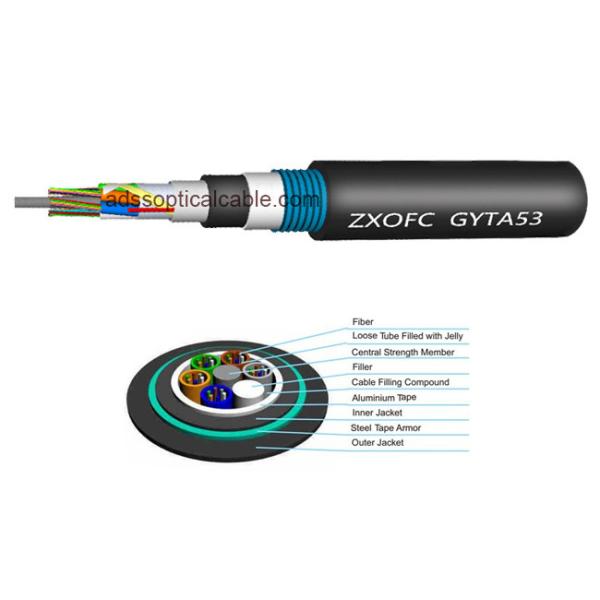

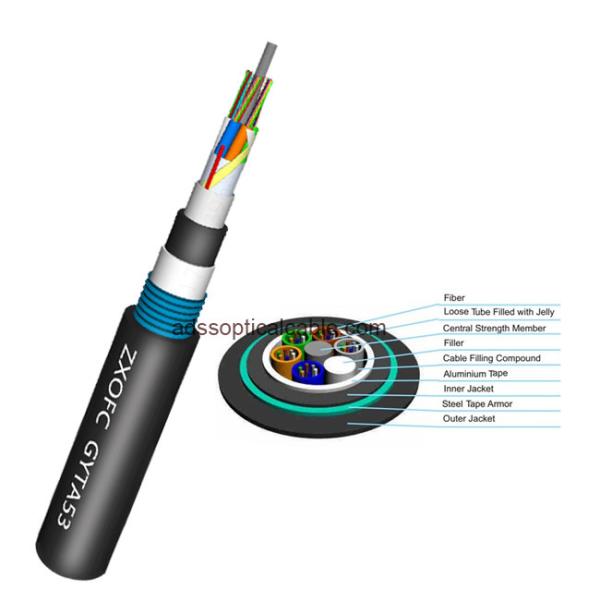

GYTA53 fiber optic outdoor cable is with corrugated steel tape and aluminum tape armored and doublesheath, suitable for direct buried

installation. GYTA53 fiber optic outdoor cable is with corrugated steeltape and aluminum tape armored and double sheath, suitable for direct

buried installation.

Features:

· Has good mechanical properties and temperature characteristics.

· The loose tube material itself has good water resistance and high strength.

· The tube is filled with a special grease to protect the fiber.

· Good pressure resistance and softness.

· The following measures are taken to ensure the waterproof performance of the cable.

. Single wire center reinforcement core.

The loose tube is filled with a special waterproof compound.

. Complete cable core filling.

. Plastic coated aluminum tape (APL) moisture barrier.

Double-sided coated steel strip (PSP) improves the moisture resistance of the cable.

Good water blocking material prevents longitudinal leakage of the cable.

Structural parameters:

Cable model Number of fibers Number of casings Number of filled ropes

Cable diameter

mm

Cable weight

Kg/Km

Allowable tensile force long/short Term

N

Allow crushing force long/short Term

N

Bending radius static / dynamic

mm
GYTA53-2~6 cores 2~6 1 4 9.7 90 600/1500 300/1000 10D/20D
GYTA53-8~12 cores 8~12 2 3 9.7 90 600/1500 300/1000 10D/20D
GYTA53-14~18 cores 14~18 3 2 9.7 90 600/1500 300/1000 10D/20D

GYTA53-20~24

cores

 20~24 4 1 9.7 90 600/1500 300/1000 10D/20D

GYTA53-26~30

cores

 26~30 5 0 9.7 90 600/1500 300/1000 10D/20D

GYTA53-32~36

cores

 32~36 6 0 10.2 104 1000/3000 300/1000 10D/20D

GYTA53-38~48

cores

 38~48 4 1 11.0 117 1000/3000 300/1000 10D/20D

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

Packaging Details:

1-5KM per roll. Packed by wooden drum. Other packing available according to client`s Request.

Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 14 years;
d. Length marking in meters.

Port:

Hongkong/Shenzhen

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be Negotiated!
Note

The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.

96 Core Duct Fiber Optic Cable GYTA53 Anti Bending Direct Buried Application

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.

FAQ

1. Are you the real factory?

Yes,we are the real factory with 20 years’ history.

2. What is your fiber brand?

Fiber brands including :ZXOFC

3. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 30KM normal kinds of fiber optic cable;

1 ~2 days for fiber optic patch cords with 10000 connectors.

7. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment

For large orders: T/T by advanced deposit

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.
