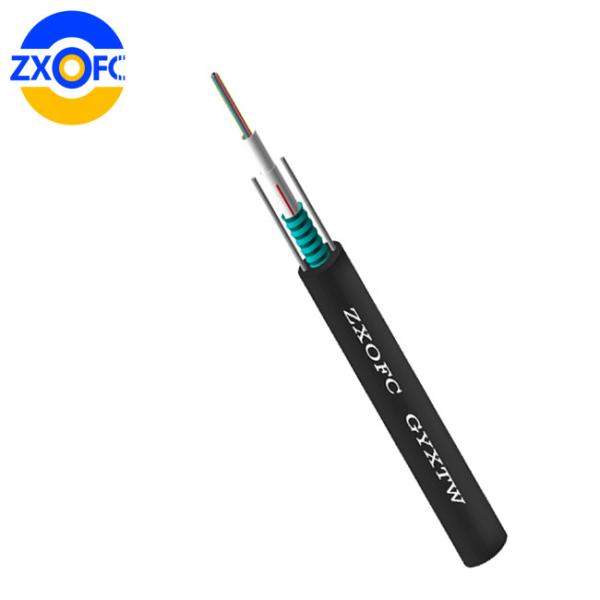

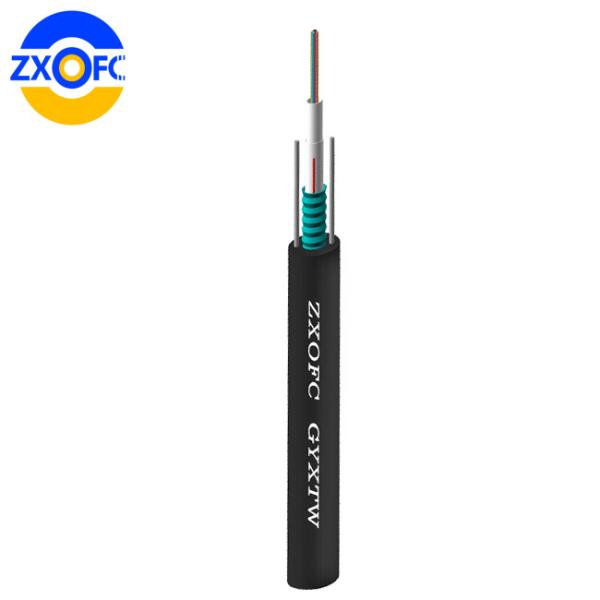

Unitube Light-Armored Cable 2 4 6 8 12 24 core GYXTW G652D,OM2/OM3 Fiber Optic Cable

Description:

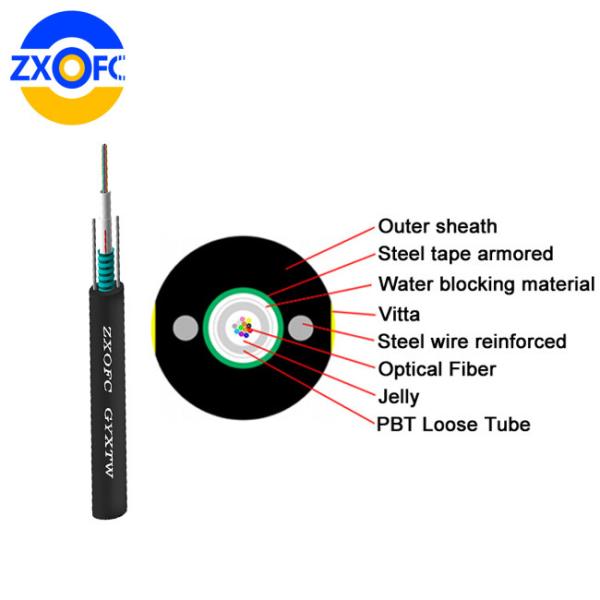

In the GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.

Application:

Aerial/Duct/Outdoor
Characteristic:
1, Excellent mechanical and temperatureperformanceguaranteed by the accurate excess fiber lengt.
2, Critical protection to fibers, based on the excellent hydrolysis resistance.
3, Excellent crush resistance and flexibility.
4, PSP enhances the cable crush-resistance, impact-resistance and moisture-proof.
5, Two parallelsteel wires ensure tensile strength.
6, Excellent ultraviolet prevention with PE sheath,small diameter, light weight and installation friendliness.

Temperature Rage:

Operating :-40℃ to +70℃
Storage :-40℃ to +70℃
Standards:
Comply with standard YD/T 769-2010

Technical Parameters:

Noted:

1, Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.
2, Cables can be supplied with a range of single mode or multimode fibers.
3, Specially designed Cable structure is available on request.

Packaging Details:

1-5KM per roll. Packed by wooden drum . Other packing available according to client`s Request.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 7 years;
d. Length marking in meters.

Port:

Shenzhen/Hongkong/Guangzhou/

Lead Time:

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.



The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
