Specifications
Brand Name :
ZXOFC
Model Number :
ZXOFC-GYTS
Certification :
CE,ISO9001,ROSH
Place of Origin :
ShenZhen,China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal,Credit card
Supply Ability :
10000KM per month
Delivery Time :
1-2 weeks according to the lengths
Packaging Details :
Plywood drum or Iron wooden drum or Fumigated wooden drum or Cardboard box (mainly for FTTH cable) Optional
Color :
Black
Fiber count :
2-144 core
Fiber type :
Singlemode,G652D,G655,G657,OM2,OM3,OM4
Outer sheath :
PE,HDPE,LSZH,PVC
Armored material :
steel wire
cable Diamter :
9.5-16.5
Lead time :
1-2 weeks
Description

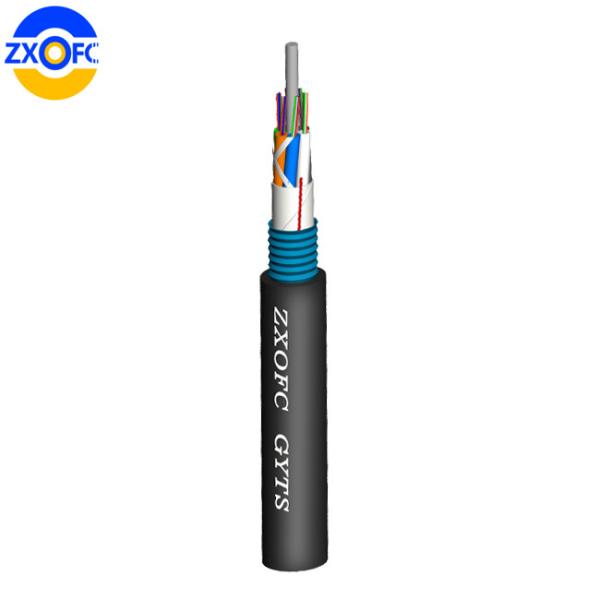

96 core Steel tape armored GYTS fiber optic cable for duct application

Description

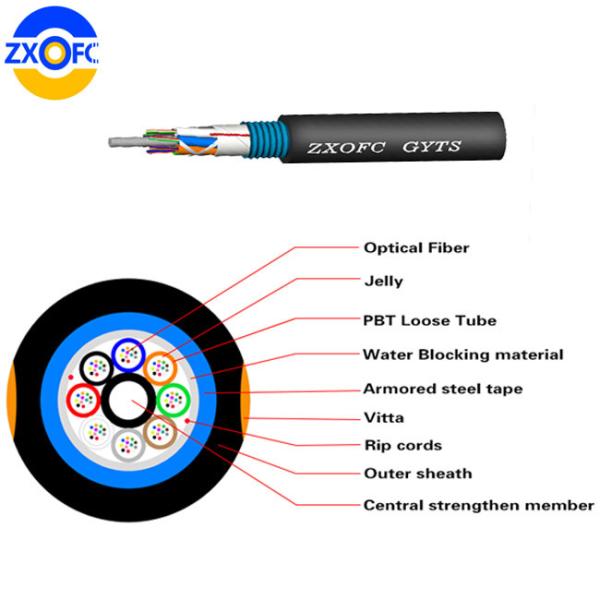

In the GYTA cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

Application:

Aerial/Duct/Outdoor

Characteristic:

1, The following measures are taken to ensure thewater blocking performance of the cable.

2, Single steel wire used as the central strengthmember.

3, Special water-blocking filling compound inthe loosetube.

4, 100% cable core filling.

Temperature Rage:

Operating :-40℃ to +70℃

Storage :-40℃ to +70℃

Standards:

Comply with standard YD/T 901-2009 as well as IEC 60794-1

Technical Parameters:
Cable Type (increased by 2fibers) Fiber Count Cable Diameter (mm) Cable Weight (kg/km) Tensile Strength Long/Short Term

(N)

 Crush Resistance Long/Short Term (N/100mm) Bending Radius

Static/Dynamic (mm)
GYTS 2 ~ 30 2 ~ 30 9.5 80 600/1500 300/1000 10D/20D
GYTS 32 ~ 36 32 ~ 36 9.7 97 600/1500 300/1000 10D/20D
GYTS 38 ~60 38 ~60 10.5 109 600/1500 300/1000 10D/20D
GYTS 62 ~72 62 ~72 11.5 126 600/1500 300/1000 10D/20D
GYTS 74 ~96 74 ~96 13.2 153 600/1500 300/1000 10D/20D
GYTS 98 ~120 98 ~120 14.6 182 600/2000 300/1000 10D/20D
GYTS 122 ~ 144 122 ~ 144 16.5 221 600/2500 300/1000 10D/20D
GYTS 146 ~ 216 146 ~ 288 16.5 221 600/2500 300/1000 10D/20D
Noted:

1, Only a part of Aerial/Duct/Direct Buried/UnderGround/Armoured cables are listed in the table. Cables with other specifications can be inquired.

2, Cables can be supplied with a range of single mode or multimode fibers.

3, Specially designed Cable structure is available on request.

Packaging Details:

1-5KM per roll. Packed by wooden drum . Other packing available according to client`s Request.

Sheath mark:

The following printing(white hot foil indentation)is applied at 1meter intervals.

a. Supplier: ZXOFC or as customer required;
b. Standard Code(Product Type, Fiber Type,Fiber Count);
c. Year of manufacture: 7 years;
d. Length marking in meters.

Port:

Shenzhen/Hongkong/Guangzhou

Lead Time:
Quantity(KM) 1-300 ≥300
Est.Time(Days) 15 To be begotiated!
Note:

The Packing standard and details as above is estimated and final size &weight shall be confirmed before shipment.

GYTS Duct Fiber Optic Cable 96 Core Armored Steel Tape Water Blocking

The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature.
